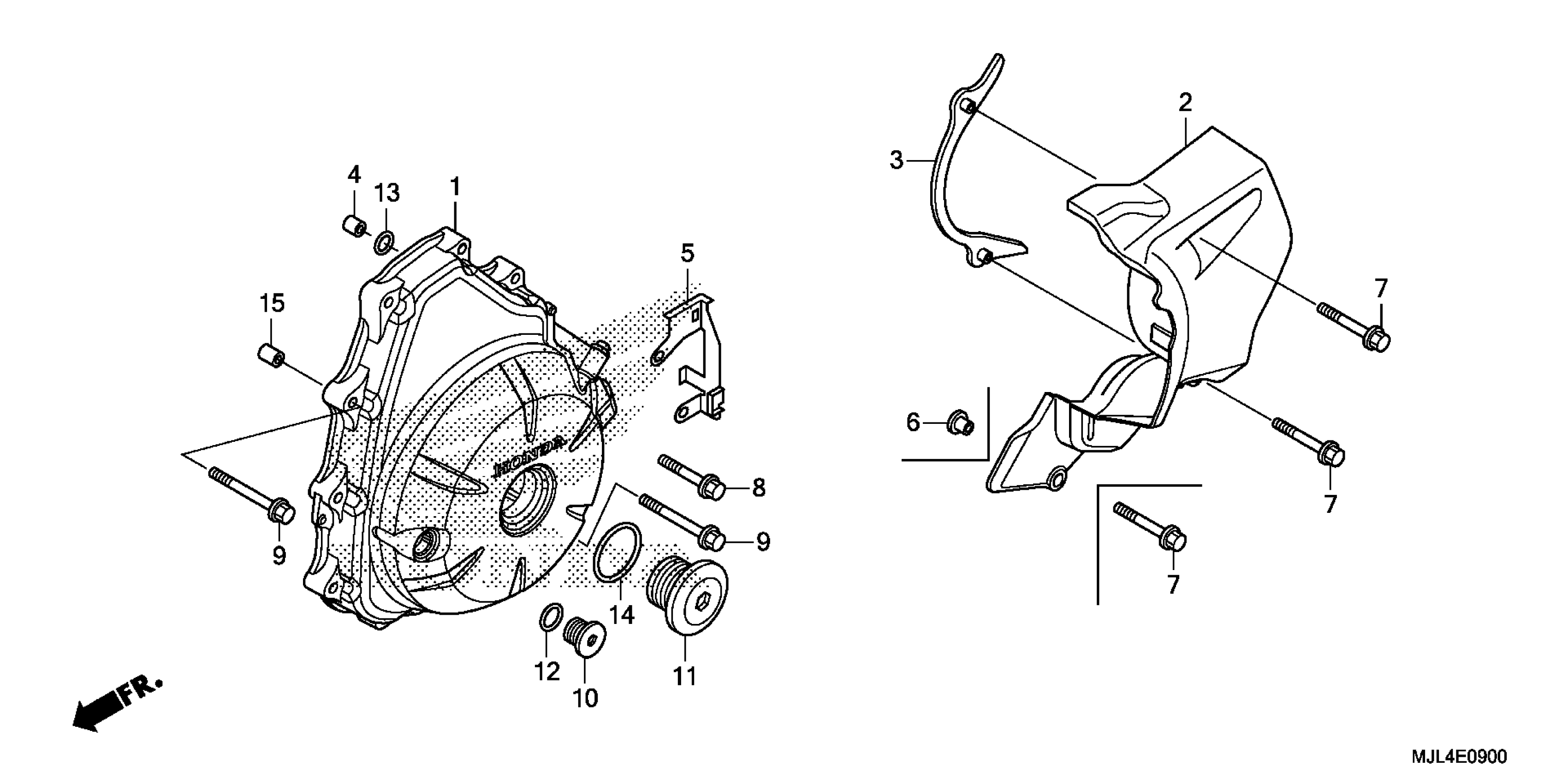

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 ALTERNATOR COVER Diagram

COVER, ALTERNATOR | Use up to Engine SN 6001190 This part replaces 04101-MGS-D20.

11320-MKA-D50

$199.20

COVER, ALTERNATOR This part replaces 04101-MJL-D50.

11320-MKA-D50

$199.20

COVER, L. RR.

11351-MGS-D50

$74.20

PLATE, DRIVE CHAIN GUIDE

11355-MGS-D30

$19.43

ORIFICE (0.8MM)

15516-MGS-D30

$6.08

GUIDE, L. RR. COVER

32153-MGS-D30

$5.39

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.80

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

CAP (14MM)

90084-MN8-010

$12.82

CAP (30MM)

90087-MR1-000

$19.89

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (7.7X2.3) (ARAI)

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.92

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.92

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.51

PIN, DOWEL (8X14)

94301-08140

$2.25
