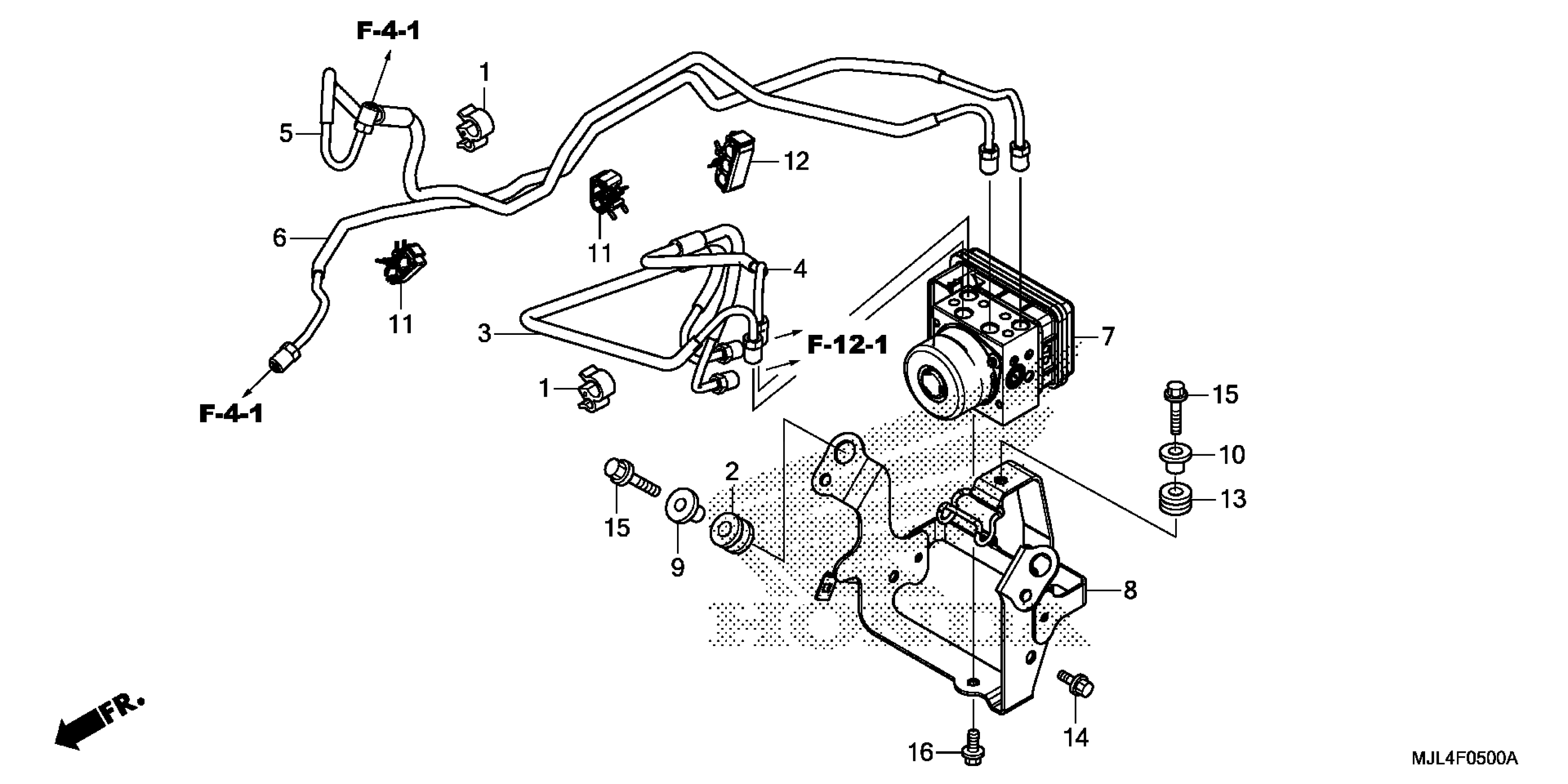

Honda NC700XDA (15) NC700XD, JPN, VIN# JH2RC634-FK100001 ABS MODULATOR Diagram

CLAMP, PIPE

11152-KS4-003

$7.13

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.89

PIPE B, RR. BRAKE

43311-MJL-D80

$17.05

PIPE C, RR. BRAKE

43312-MJL-D80

$15.93

PIPE B, FR. BRAKE

45126-MJL-D80

$28.62

PIPE C, FR. BRAKE

45127-MJL-D80

$27.05

MODULATOR ASSY. (MSDS)

57110-MJL-D81

$1,755.62

BRACKET, MODULATOR

57250-MJL-D50

$86.31

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

90502-GG2-000

$5.75

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.84

CLAMP, BRAKE PIPE (7.0X3)

90661-MGS-D81

$2.92

RUBBER, CONTROL BOX

90852-898-000

$4.03

BOLT, FLANGE (6X8)

95701-06008-00

$3.46

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X12) This part replaces 95801-06012-07.

95701-06012-07

$1.62
