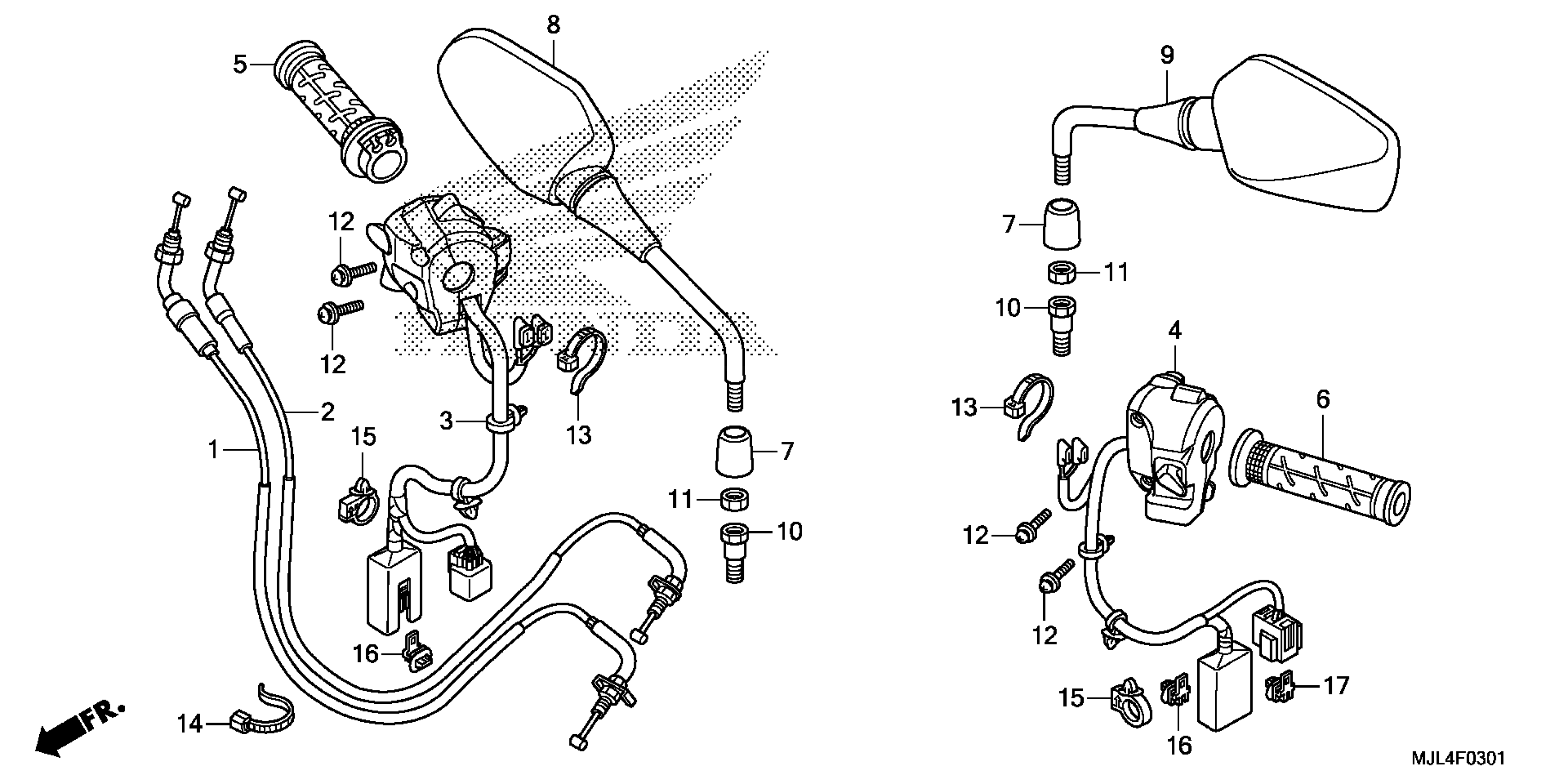

Honda NC700XDA (14) NC700XD, JPN, VIN# JH2RC634-EK000001 TO JH2RC634-EK099999 SWITCH + CABLE (NC700XD) Diagram

CABLE A, THROTTLE

17910-MGS-D51

$28.98

CABLE B, THROTTLE

17920-MGS-D51

$31.17

SWITCH ASSY., ENGINE STOP & D-N MODE | Use up to Frame SN EK000162

35130-MJL-D50

$141.09

SWITCH ASSY., ENGINE STOP & D-N MODE | Use from Frame SN EK000163

35130-MJL-D51

$45.43

SWITCH ASSY., TURN SIGNAL & HAND SHIFT | Use up to Frame SN EK000162

35200-MJL-A50

Unavailable

SW ASSY. | Use from Frame SN EK000163 This part replaces 35200-MJL-A51.

35200-MJL-A52

$85.41

GRIP, THROTTLE This part replaces 53140-MGS-305.

53140-MGS-D30

$25.44

GRIP, L. HANDLE This part replaces 53150-MGS-305.

53150-MGS-D30

$10.89

COVER, LOCK NUT

88130-MFG-D00

$1.57

MIRROR, R. BACK This part replaces 88210-MGS-305.

88210-MGS-D30

$73.95

MIRROR, L. BACK This part replaces 88220-MGS-305.

88220-MGS-D30

$73.95

BOLT, ADAPTER (10MM)

90130-MGS-D31

$7.63

NUT, HEX. (10MM) (LEFT HAND THREAD)

90310-MGS-D31

$2.67

SCREW-WASHER (5X16)

90508-MGS-D30

$1.70

BAND, WIRE

90650-KW3-000

$4.16

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

CLAMP, HARNESS

90652-HC4-003

$5.54

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.22

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.42
