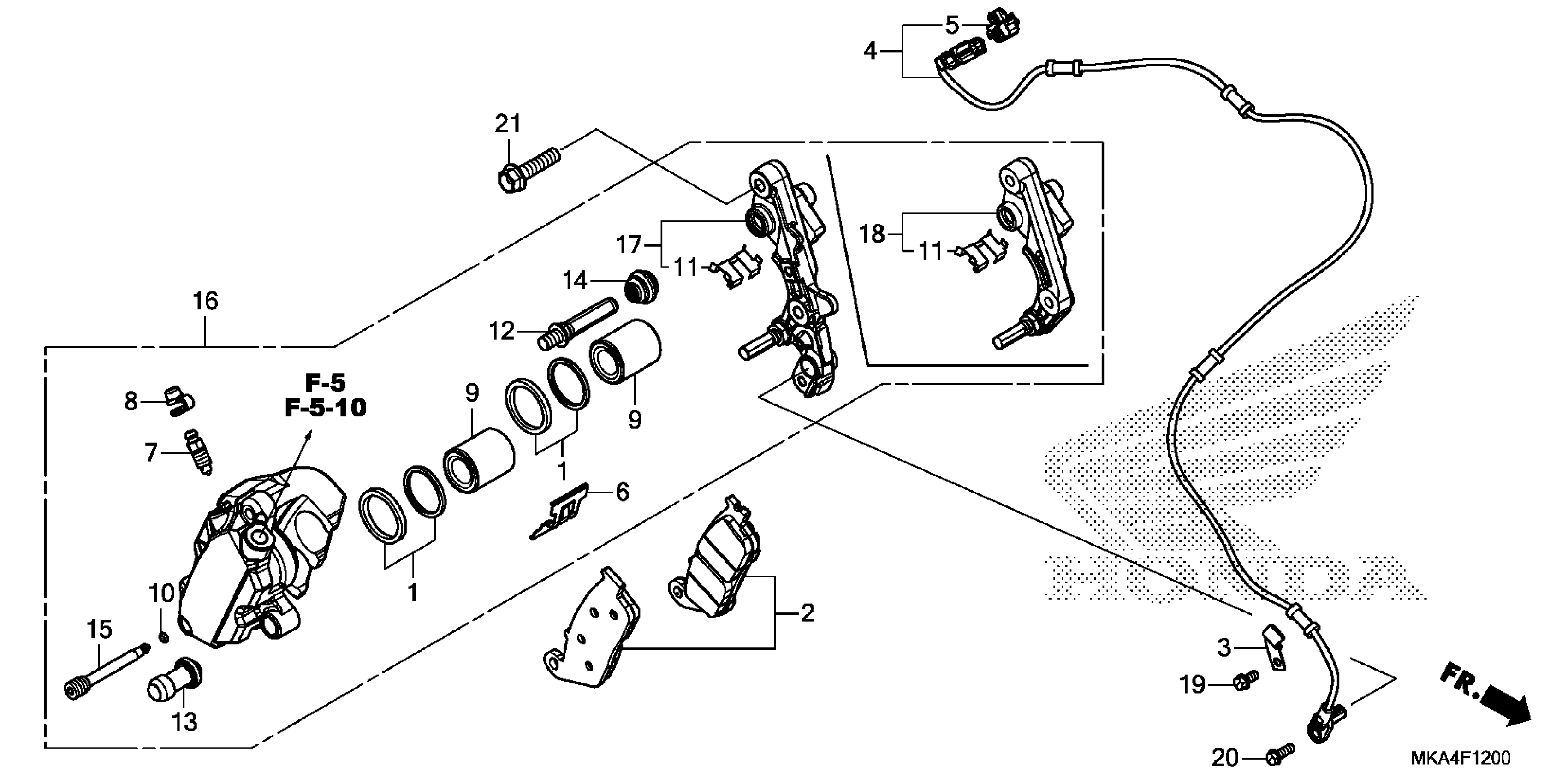

Honda NC700XAC (17) NC700X, JPN, VIN# JH2RC871-HK100001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

PAD SET, FR.

06455-MGS-D32

$51.67

SPRING, PAD

43108-MCT-006

$4.92

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-ML4-006

$37.87

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER

45112-MS9-611

$5.46

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

PIN, HANGER

45215-MAJ-G41

$6.45

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MKA-J31

$315.20

BRACKET SUB-ASSY., R. FR. (NISSIN)

45290-MKA-J31

$89.13

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75
