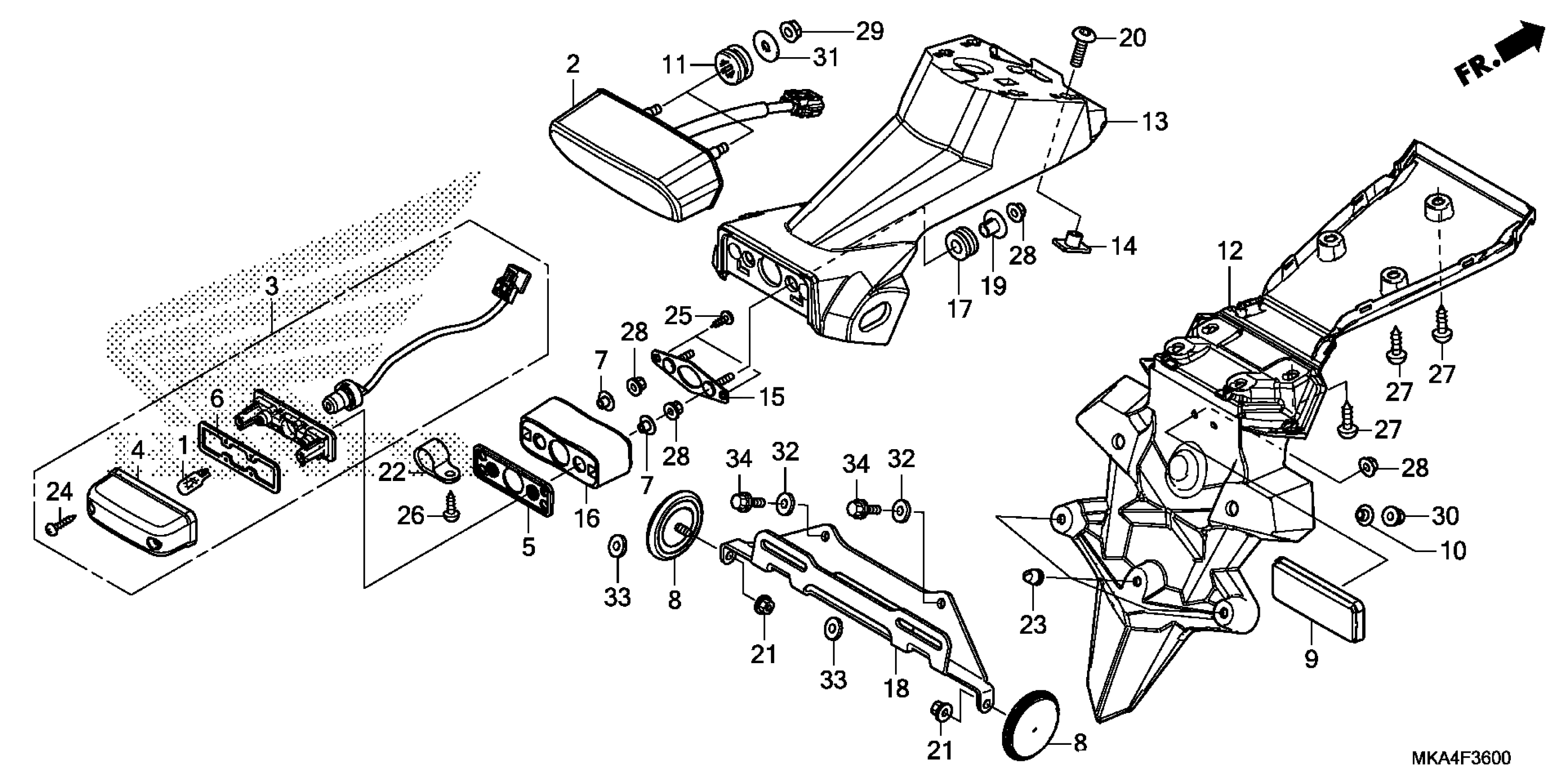

Honda NC700XAC (16) NC700X, JPN, VIN# JH2RC871-GK000001 TO JH2RC871-GK099999 TAILLIGHT Diagram

#

Description
Price

1

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.74

2

TAILLIGHT UNIT

33701-MKA-A31

$118.55

3

LIGHT ASSY., LICENSE (T10 12V 5W)

33720-MKA-D81

$80.56

4

COVER, LICENSE

33721-GET-671

$17.66

5

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.74

6

GASKET, LENS

33729-MCZ-003

$8.75

7

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

Unavailable

8

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

9

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.92

10

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$4.88

11

RUBBER, TAILLIGHT

77209-MJM-D60

$2.72

12

FENDER A, RR.

80100-MKA-J30

$46.91

13

STAY, FENDER A

80101-MKA-D80

$87.78

14

NUT, RR. FENDER

80104-KJ2-000

$3.90

15

STAY, LICENSE LIGHT BRACKET

80118-MGE-670

$7.15

16

BRACKET, LICENSE LIGHT

80201-MGE-670

$7.57

17

RUBBER, SHROUD

83545-MFC-640

$1.14

18

STAY, LICENSE PLATE

84700-MKA-C80

$19.22

19

COLLAR, SIDE MOUNTING

90001-961-670

$5.19

20

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.26

21

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89

22

CLIP (14MM)

90628-750-000

$2.13

23

PLUG, CONE

90899-MFJ-A00

$3.29

24

SCREW, TAPPING (4X16)

93901-24480

$0.82

25

SCREW, TAPPING (4X10)

93903-24280

Unavailable

26

SCREW, TAPPING (4X16)

93903-24420

$0.90

27

SCREW, TAPPING (5X16)

93903-25380

$0.90

28

NUT, FLANGE (5MM)

94050-05000

$1.31

29

NUT, FLANGE (6MM)

94050-06000

$0.60

30

NUT, FLANGE (6MM)

94050-06070

$1.44

31

WASHER, PLAIN (6MM)

94103-06000

Unavailable

32

WASHER, PLAIN (6MM)

94103-06700

$0.66

33

WASHER, PLAIN (6MM)

94103-06800

$0.72

34

BOLT, FLANGE (6X18) (Honda Code 2410918)

95701-06018-07

$1.63
