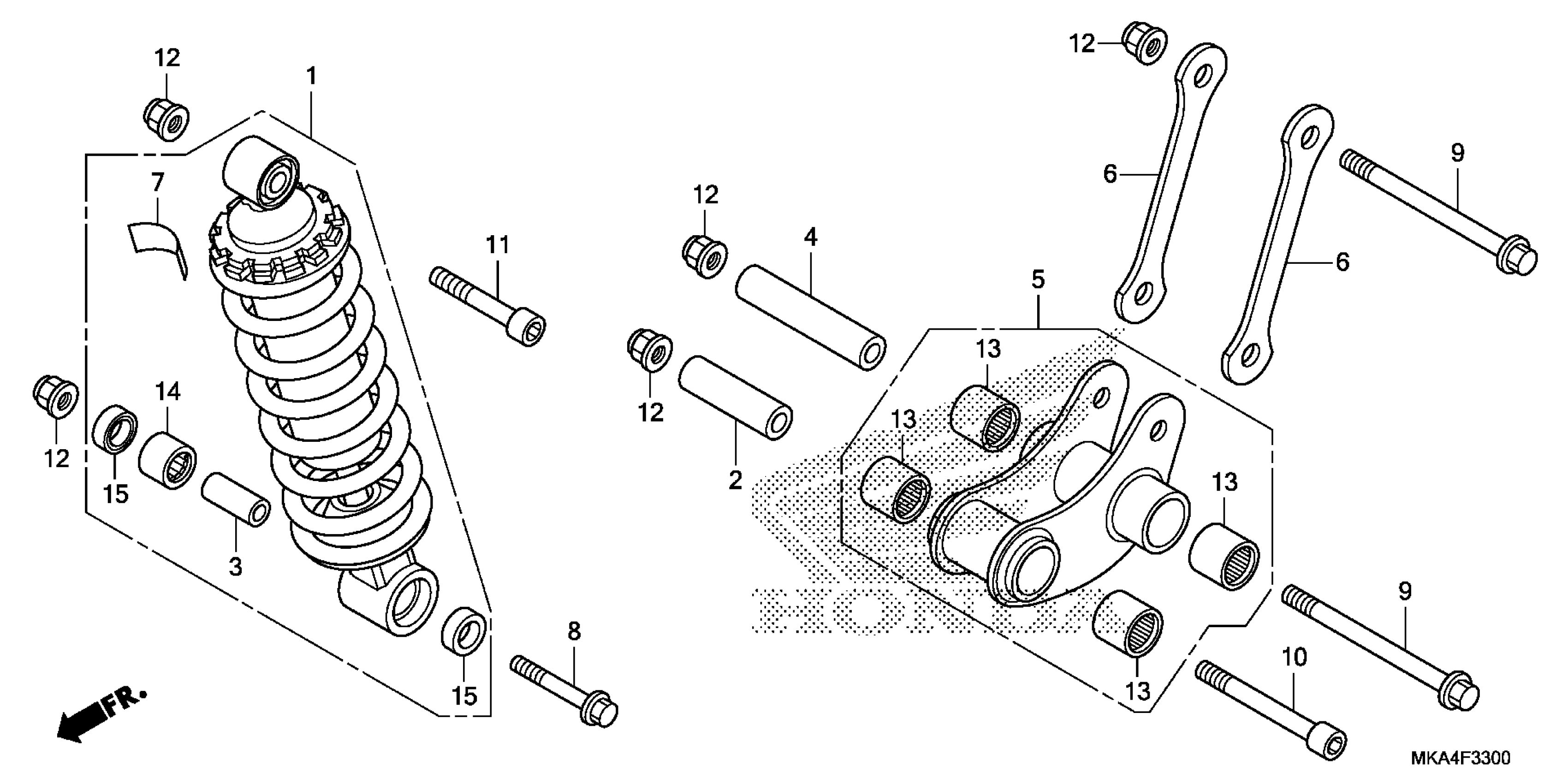

Honda NC700XAC (16) NC700X, JPN, VIN# JH2RC871-GK000001 TO JH2RC871-GK099999 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR. (COO) (SHOWA)

52400-MGS-305

$714.98

COLLAR A, CUSHION ARM

52462-MGS-D10

$11.87

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

COLLAR B, CUSHION ARM

52463-MGS-D10

$12.97

ARM SUB-ASSY., CUSHION

52465-MGS-D30

$249.70

PLATE, CUSHION CONNECTING

52471-MGS-D30

$15.02

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT, FLANGE (10X62)

90101-MBB-000

$4.04

BOLT, FLANGE (10X115)

90102-MGS-D30

$6.75

BOLT, SOCKET (10X88)

90110-MGS-D30

$10.95

BOLT, SOCKET (10X52)

90111-MGS-D30

$7.54

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

BEARING, NEEDLE (17X24X30)

91052-MGS-D31

$9.78

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21
