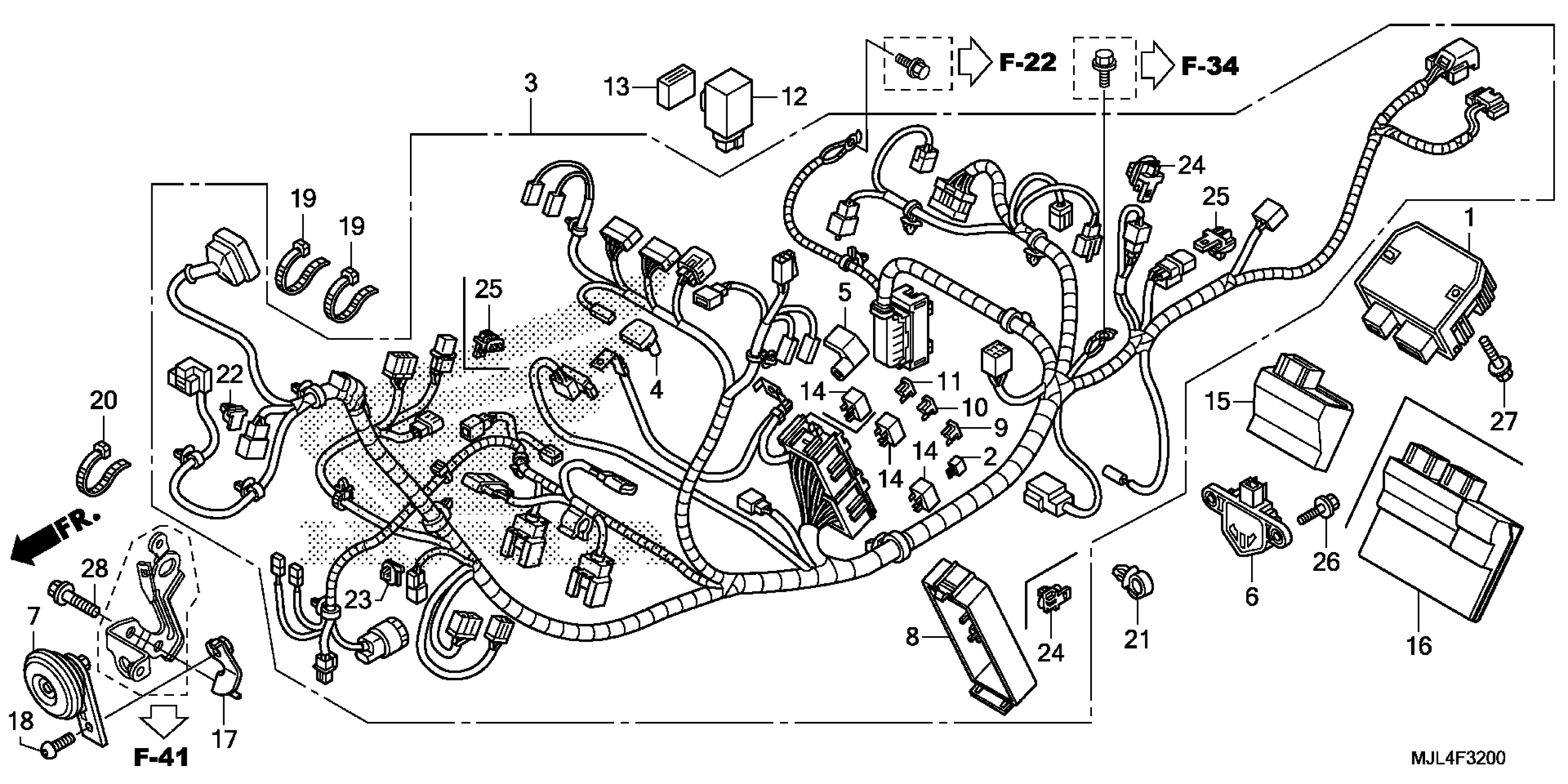

Honda NC700XAC (15) NC700X, JPN, VIN# JH2RC635-FK300001 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MJJ-D31

$398.61

2

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.70

3

WIRE HARNESS

32100-MJL-A31

$913.26

6

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$136.62

7

HORN (HIGH)

38110-MEE-013

$32.22

8

COVER, POWER BOX

38201-MGS-D31

$9.29

9

FUSE, BLADE (7.5A)

38221-SNA-A31

$2.89

10

FUSE, BLADE (15A)

38221-SNA-A51

$3.39

12

RELAY, TURN SIGNAL (MITSUBA)

38301-MEW-921

$43.80

13

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.80

14

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.33

15

PGM-FI UNIT

38770-MJL-A32

$498.90

17

STAY, HORN

50311-MGS-D31

$6.25

18

BOLT, SOCKET (8X16)

90128-MGS-D30

$2.62

19

BAND, WIRE (95MM)

90650-KV6-003

$2.90

20

BAND, WIRE (BLACK)

90652-KT1-771

$4.16

22

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.22

23

CLIP, CONNECTOR (DARK GRAY)

91534-SWA-003

$8.70

24

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

25

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.42

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.48

27

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

28

BOLT, FLANGE (8X25)

95701-08025-08

$0.67
