Description

Price

1

CABLE A, THROTTLE

17910-MGS-D31

$31.19

2

CABLE B, THROTTLE

17920-MGS-D31

$31.19

3

CABLE, CLUTCH

22870-MGS-D31

$27.71

4

SWITCH ASSY., ENGINE STOP | Use up to Frame SN EK200114

35130-MJL-D30

Unavailable

4

SWITCH ASSY., ENGINE STOP | Use from Frame SN EK200115

35130-MJL-D31

$114.52

5

SWITCH ASSY., TURN SIGNAL | Use up to Frame SN EK200114

35200-MJL-A30

Unavailable

5

SWITCH, TURN SIGNAL | Use from Frame SN EK200115 This part replaces 35200-MJL-A31.

35200-MJL-A32

$40.20

6

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$19.67

7

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

8

GRIP, THROTTLE This part replaces 53140-MGS-305.

53140-MGS-D30

$25.44

9

GRIP, L. HANDLE This part replaces 53150-MGS-305.

53150-MGS-D30

$10.89

10

HOUSING, THROTTLE (UPPER)

53167-MGS-D30

$15.14

11

HOUSING, THROTTLE (LOWER)

53168-MGS-D30

$16.14

12

BRACKET, HANDLE LEVER

53172-KT7-751

$25.55

13

LEVER, L. HANDLE This part replaces 53178-KV0-305.

53178-KV0-000

$16.46

14

BOLT, CLUTCH WIRE ADJUSTING

53192-349-690

$6.56

15

COVER, LOCK NUT

88130-MFG-D00

$1.57

16

MIRROR, R. BACK This part replaces 88210-MGS-305.

88210-MGS-D30

$73.95

17

MIRROR, L. BACK This part replaces 88220-MGS-305.

88220-MGS-D30

$73.95

18

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.30

19

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.06

20

BOLT, ADAPTER (10MM)

90130-MGS-D31

$7.63

21

NUT, CAP (6MM)

90201-415-000

$1.96

22

NUT, HEX. (10MM) (LEFT HAND THREAD)

90310-MGS-D31

$2.67

23

NUT, FIXING

90321-KT7-760

$9.38

24

SCREW-WASHER (5X16)

90508-MGS-D30

$1.70

25

BAND, WIRE

90650-KW3-000

$4.16

26

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.80

27

CLAMP, HARNESS

90652-HC4-003

$5.54

28

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.22

29

SCREW, PAN (5X22)

93500-05022-0G

$0.84

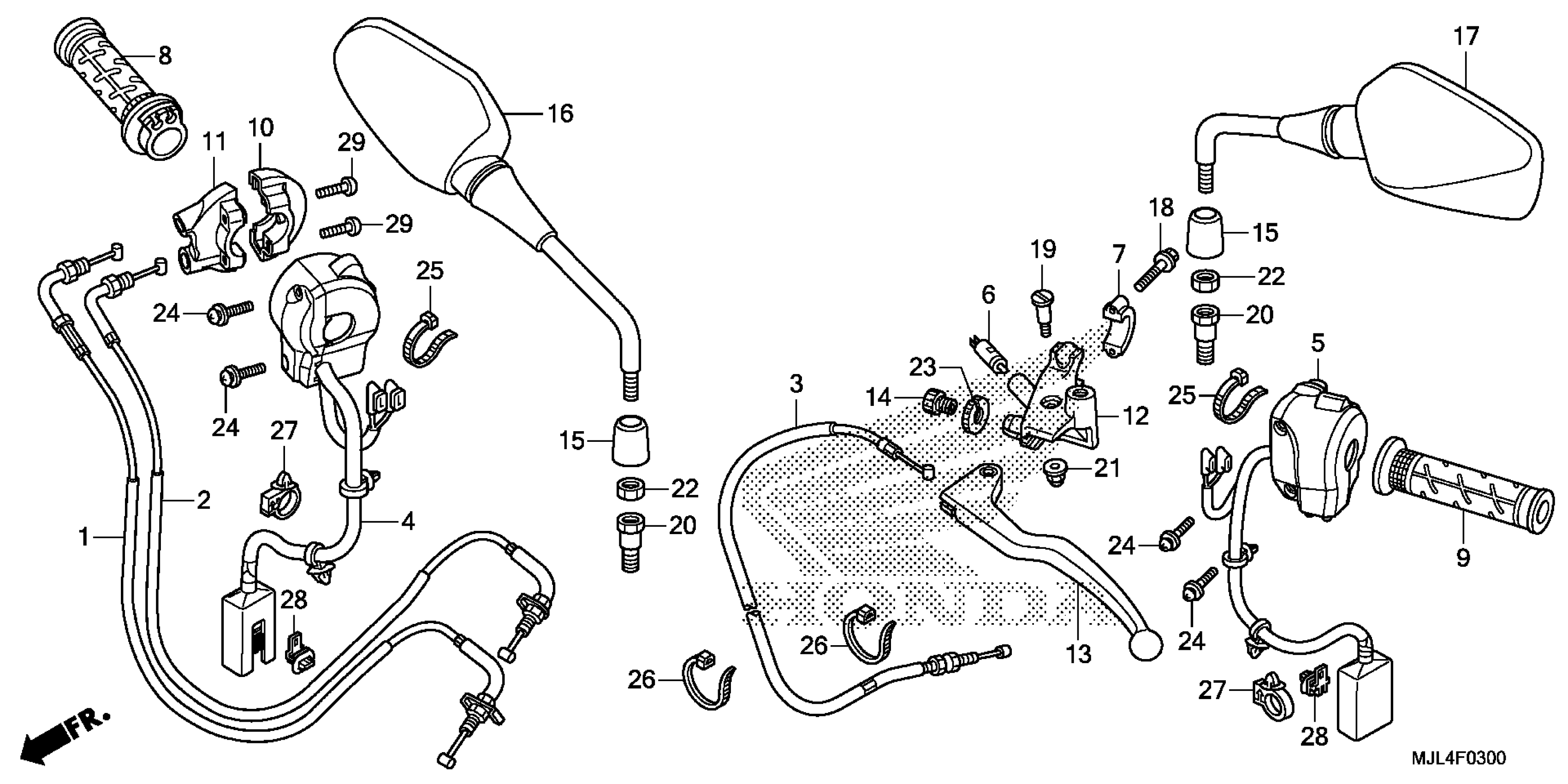

Honda NC700XAC (14) NC700X, JPN, VIN# JH2RC635-EK200001 TO JH2RC635-EK299999 HANDLE LEVER + SWITCH + CABLE (NC700X/NC750XA) Diagram
