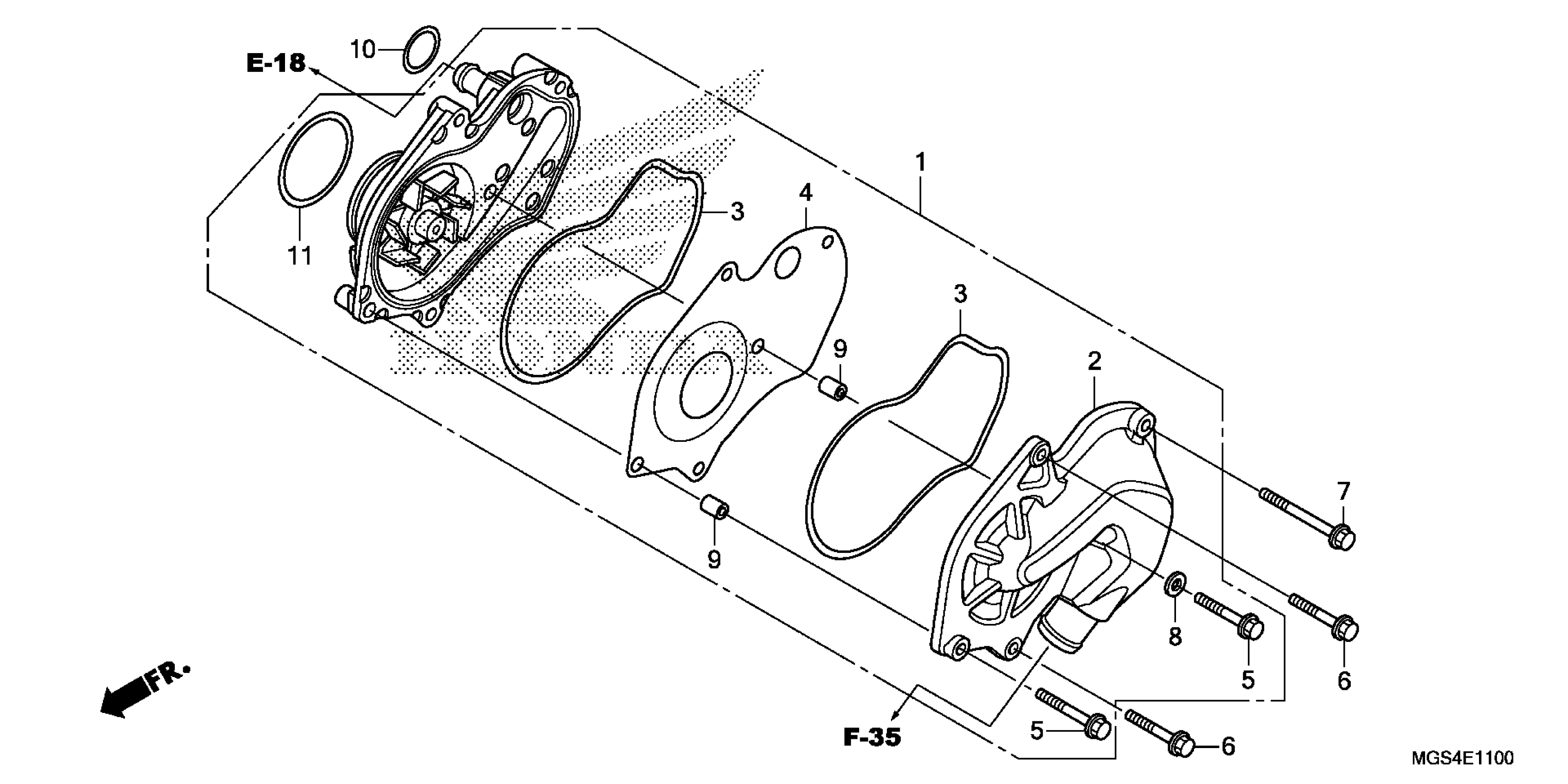

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 WATER PUMP Diagram

WATER PUMP ASSY.

19200-MGS-D30

$260.49

COVER, WATER PUMP

19221-MGS-D30

$119.10

GASKET, WATER PUMP BODY

19226-MGS-D30

$6.74

PLATE, WATER PUMP

19231-MGS-D30

$8.49

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.78

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.78

BOLT, FLANGE (6X50) (NSHF) (Honda Code 7498413)

90006-GHB-730

$1.66

WASHER, SEALING (6.5MM)

90406-MGS-D30

$2.15

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

PIN, DOWEL (8X10)

90704-MGS-D30

$1.38

O-RING (22X2) (ARAI)

91301-GK1-003

Unavailable

O-RING (48X2.6)

91301-MGS-D30

$2.66
