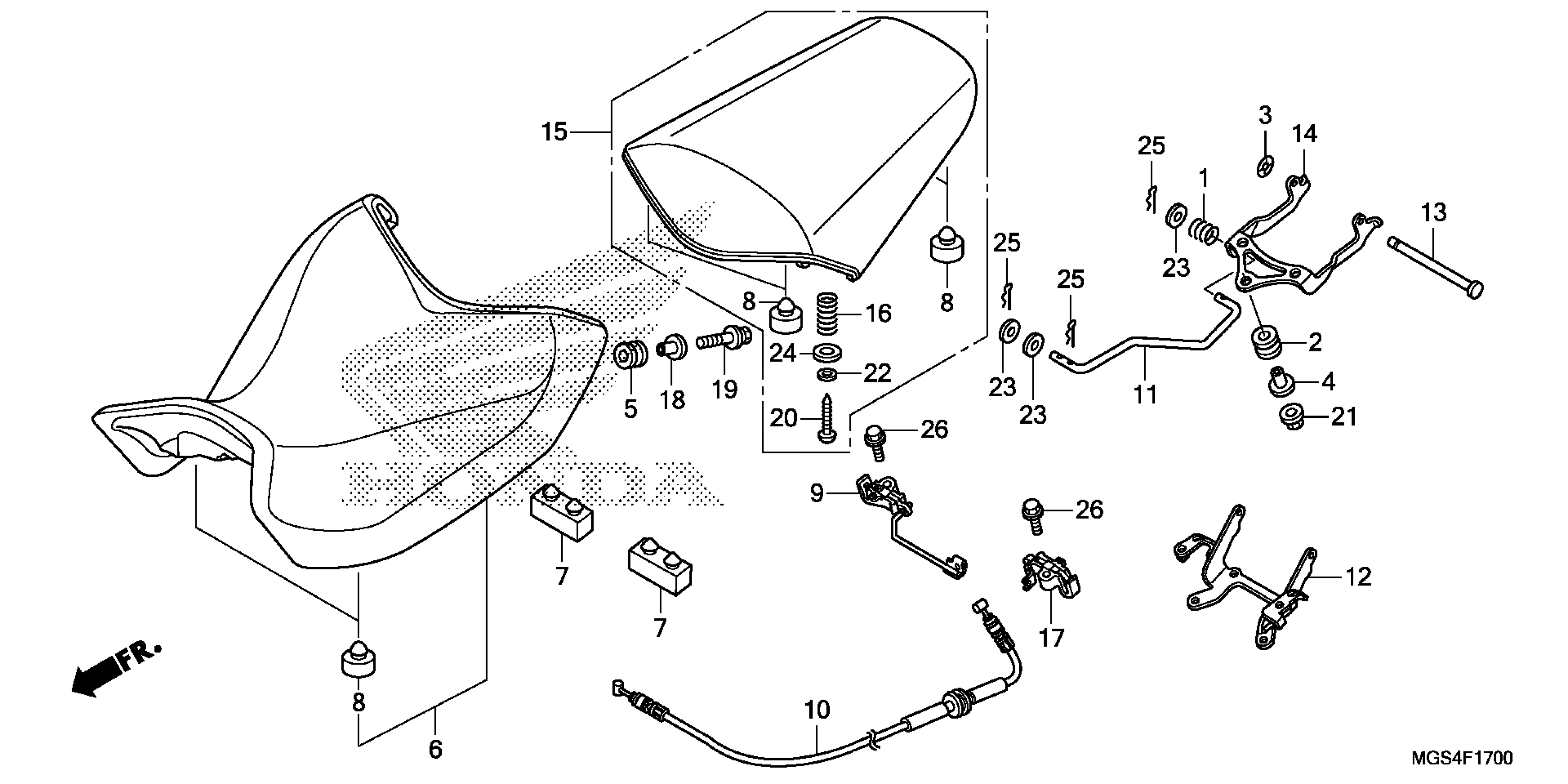

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 SEAT Diagram

#

Description
Price

1

SPRING, OIL THROUGH

15447-149-000

$2.71

2

RUBBER, AIR CLEANER MOUNTING

17227-GS3-000

$2.91

3

NUT, PUSH (6MM)

18316-HW1-671

$0.72

4

COLLAR, SIDE COVER

61104-435-000

$4.83

5

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.31

6

SEAT ASSY., SINGLE This part replaces 77100-MGS-D31.

77100-MGS-D32

$259.40

6

SEAT ASSY., SINGLE

77100-MGS-D32

$259.40

7

RUBBER, SEAT SETTING

77205-MFE-670

$5.65

8

RUBBER, SEAT SETTING

77206-GF0-000

$5.21

9

LOCK A, SEAT CATCH

77220-MGS-D31

$68.38

10

CABLE, SEAT LOCK

77241-MGS-D31

$23.84

11

ROD, PILLION SEAT

77242-MGS-D30

$26.18

12

STAY, PILLION SEAT HINGE

77250-MGS-D30

$31.78

13

PIN, SEAT HINGE

77251-MGS-D30

$6.54

14

ARM, SEAT HINGE

77255-MGS-D30

$37.28

15

SEAT ASSY., PILLION This part replaces 77300-MGS-D31.

77300-MGS-D32

Unavailable

16

SPRING, SEAT LOCK

77302-MEE-000

$1.99

17

LOCK B, SEAT CATCH

77320-MGS-D31

$53.54

18

COLLAR (6.2X12)

90501-MFA-D00

$2.97

19

BOLT-WASHER (6X25)

93404-06025-00

$1.01

20

SCREW, TAPPING (4X12)

93913-14220

$0.84

21

NUT, FLANGE (6MM)

94050-06080

$0.60

22

WASHER, PLAIN (4MM) (Honda Code 0331462)

94101-04800

$0.91

23

WASHER, PLAIN (5MM)

94103-05800

$0.91

24

WASHER, PLAIN (8MM)

94103-08800

$0.87

25

PIN, LOCK (5MM)

94251-05000

$0.96

26

BOLT, FLANGE (6X18)

96001-06018-07

$1.16
