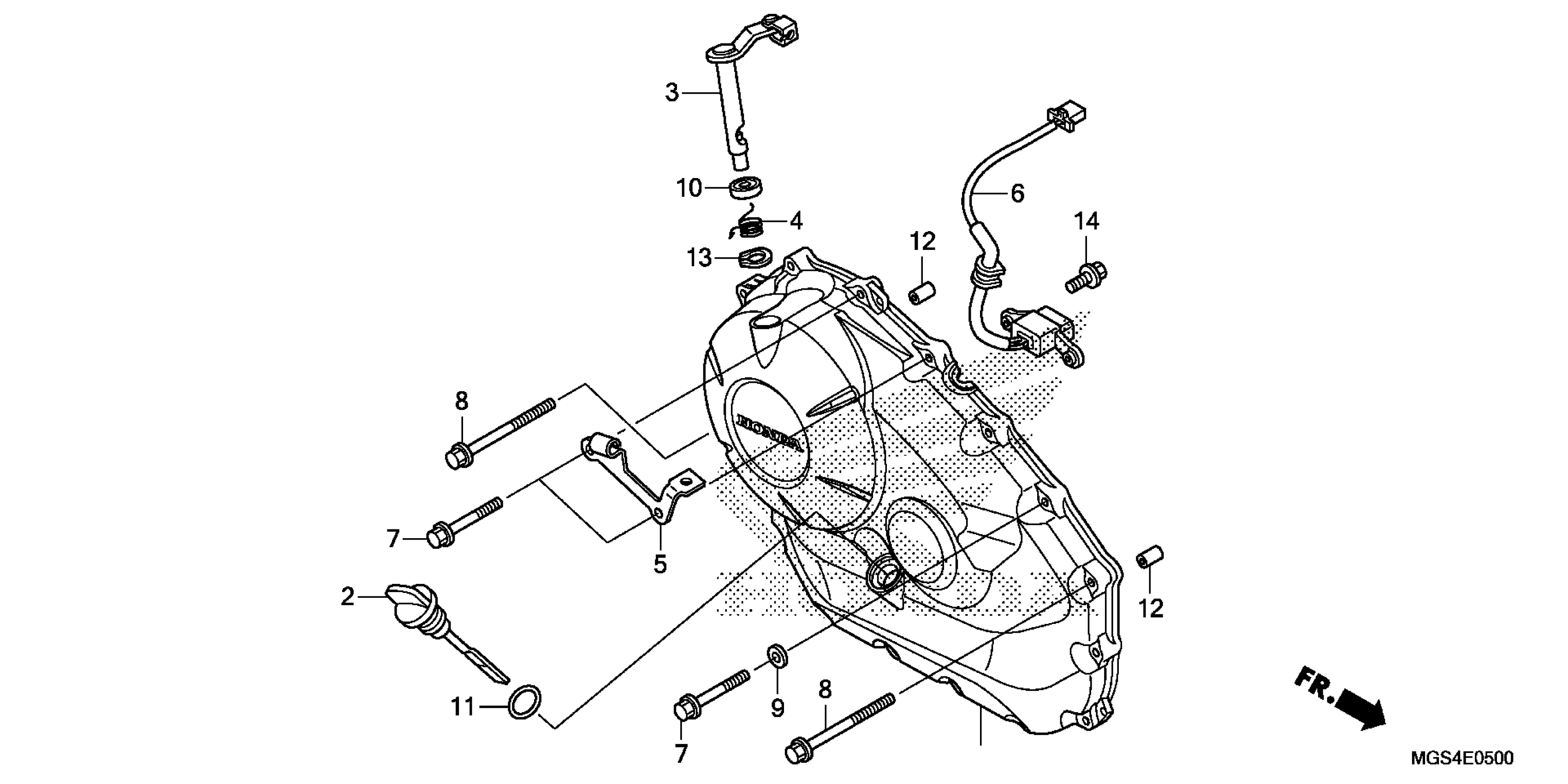

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 RIGHT CRANKCASE COVER (1) Diagram

#

Description

Price

1

COVER, R. CRANKCASE This part replaces 11330-MGS-D30.

11330-MGS-D31

Unavailable

1

COVER, R. CRANKCASE

11330-MGS-D31

Unavailable

2

DIPSTICK, OIL

15650-MGS-D30

$28.61

3

LEVER, CLUTCH

22810-MGS-D30

$80.39

4

SPRING, CLUTCH LEVER

22815-413-000

$3.08

5

RECEIVER, CLUTCH CABLE

22821-MGS-D30

$11.26

6

GENERATOR ASSY., PULSE (TOYO)

30300-MGS-D31

$119.92

7

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

8

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

9

WASHER, SEALING (6MM)

90488-425-000

$2.28

10

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

11

O-RING (18X3)

91307-035-000

$2.92

12

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

13

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

14

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55
