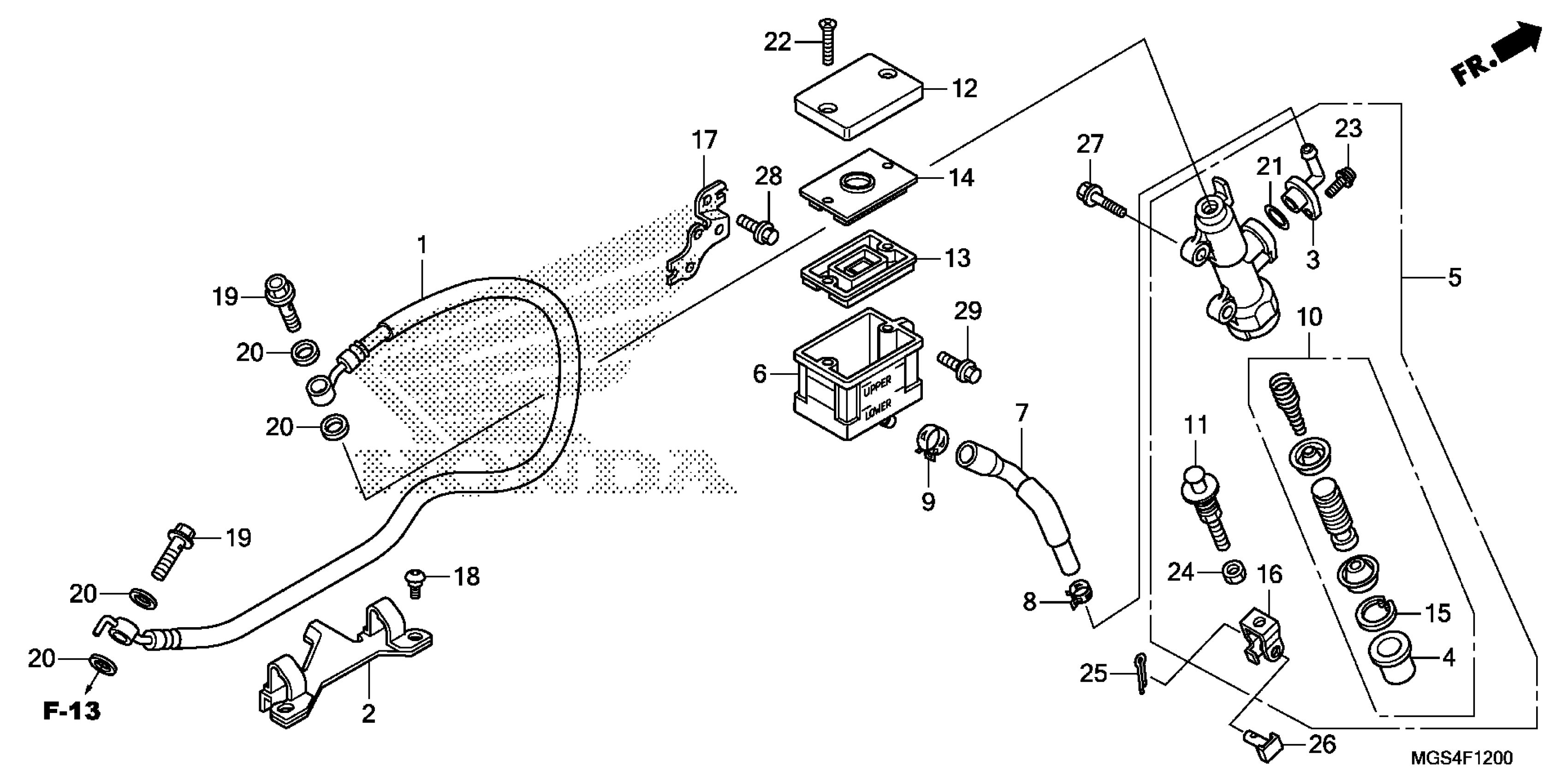

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 REAR BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-MGS-D31

Unavailable

2

GUIDE, RR. BRAKE HOSE | Use up to Frame SN DK101360. This part replaces 43468-MGS-D30.

43468-MGS-D31

$15.32

2

GUIDE, RR. BRAKE HOSE | Use from Frame SN DK101361.

43468-MGS-D31

$15.32

3

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.15

4

BOOT

43504-MB2-006

$9.24

5

M/CYL SUB-ASSY, RR.

43510-MGS-D31

$194.34

5

M/CYL SUB-ASSY, RR. This part replaces 43510-MGS-305.

43510-MGS-D31

$194.34

6

CUP, OIL

43511-KT8-006

$33.06

7

HOSE, RR. MASTER CYLINDER

43512-MGS-D31

$17.90

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

9

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.12

10

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$42.70

11

ROD, PUSH

43530-MJ0-006

$19.22

12

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.97

12

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.97

13

DIAPHRAGM

45520-MG7-006

$9.73

14

PLATE, DIAPHRAGM

45521-HA2-006

$9.96

15

CIRCLIP

46182-MEL-D21

$1.79

16

JOINT, BRAKE ROD

46504-KV6-702

$7.49

17

STAY, OIL CUP

50601-MGS-D30

$4.59

18

SCREW, SPECIAL (5X14)

90101-MJJ-D30

Unavailable

19

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

20

WASHER, OIL BOLT

90545-300-000

$6.56

21

O-RING (14.8X2.4)

91212-422-006

$2.37

22

SCREW, FLAT (4X40)

93600-04040-1G

$0.44

23

SCREW-WASHER (4X12)

93893-04012-07

$1.24

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

24

NUT, HEX. (8MM)

94002-08000-0S

$1.21

25

PIN, COTTER (2.0X15)

94201-20150

$0.96

26

PIN D, JOINT

95015-54000

$4.05

27

BOLT, FLANGE (6X22)

95701-06022-00

$1.66

28

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.66

29

BOLT, FLANGE (6X14)

96001-06014-00

$1.66
