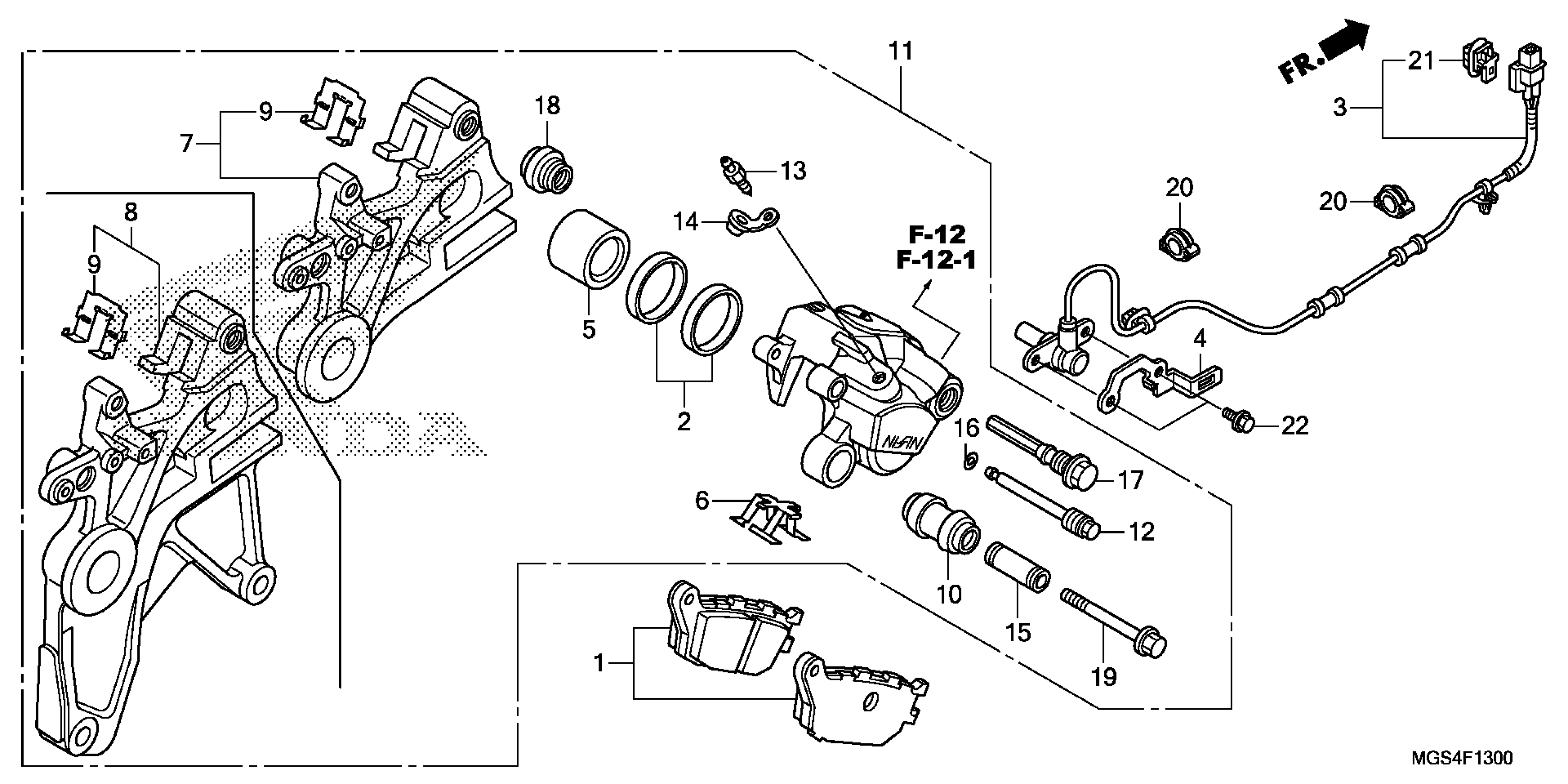

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR. This part replaces 06435-MGS-D31.

06435-MGS-D32

$44.08

1

PAD SET, RR.

06435-MGS-D32

$44.08

2

SEAL SET, PISTON

06451-443-405

$12.15

5

PISTON

43107-KT7-761

$34.77

6

SPRING, PAD

43108-MBB-006

$5.90

7

BRACKET, RR. (NISSIN)

43110-MGS-D31

$171.69

9

RETAINER

43112-KT7-761

$8.68

10

BOOT, SLEEVE

43132-KT7-761

$7.85

11

CALIPER SUB-ASSY., RR.

43150-MGS-D31

$330.44

12

PIN, HANGER

43215-KZ4-J41

Unavailable

13

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

14

CAP, BLEEDER

43353-461-771

Unavailable

15

SLEEVE

45111-MA3-006

$12.28

16

RING, STOPPER

45111-MAJ-G41

$3.63

17

BOLT, PIN

45131-MN9-006

$14.66

18

BOOT B

45133-MA3-006

$5.21

19

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80
