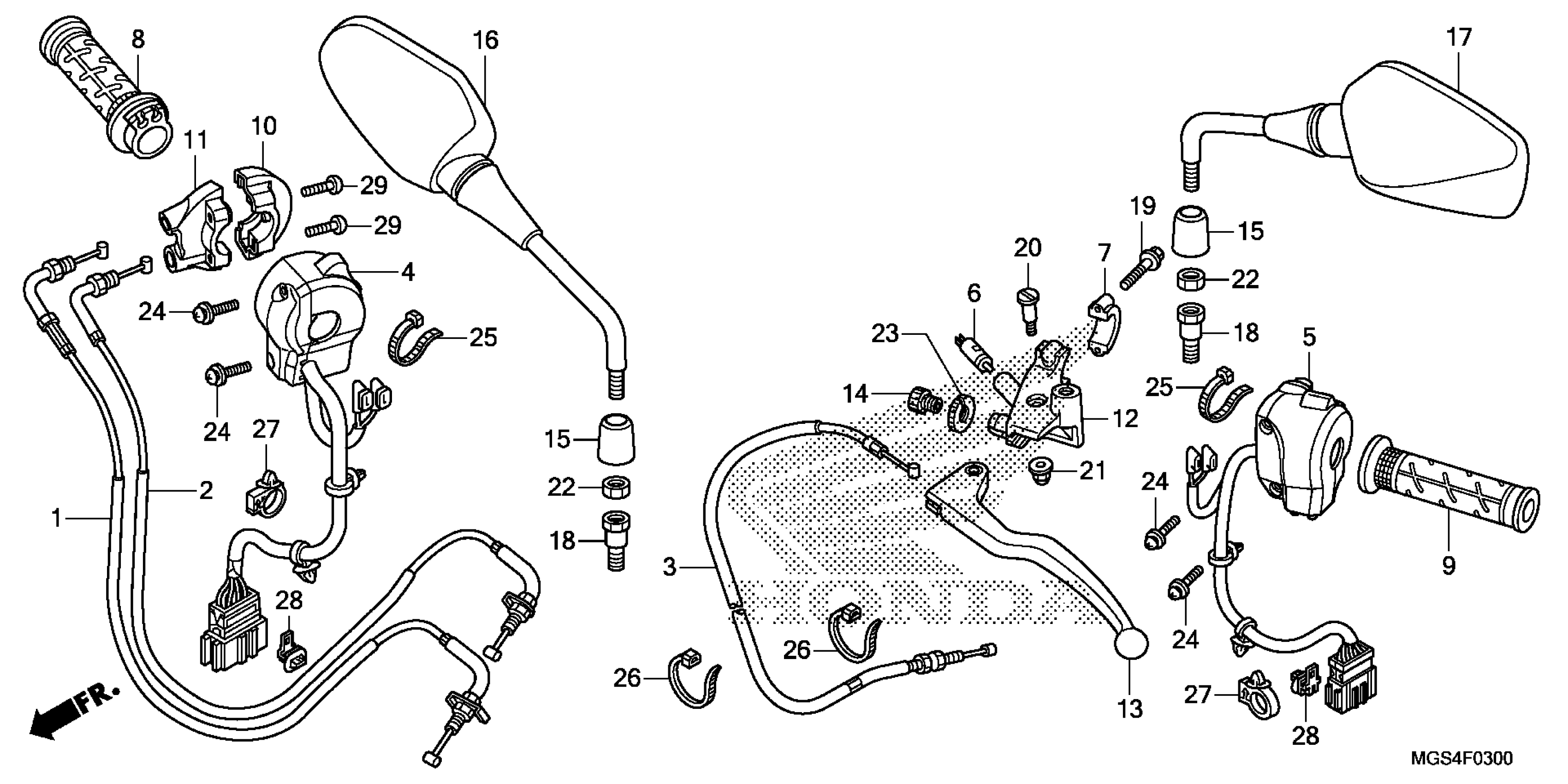

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 HANDLE LEVER@SWITCH@CABLE (NC700X/XA) Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MGS-D31

$31.65

2

CABLE B, THROTTLE

17920-MGS-D31

$31.65

3

CABLE, CLUTCH

22870-MGS-D31

$28.12

4

SWITCH ASSY., ENGINE STOP

35130-MGS-D31

$240.75

5

SWITCH ASSY., TURN SIGNAL

35200-MGS-A31

$168.90

6

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$20.11

7

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

8

GRIP, THROTTLE

53140-MGS-D30

$26.01

8

GRIP, THROTTLE This part replaces 53140-MGS-305.

53140-MGS-D30

$26.01

9

GRIP, L. HANDLE

53150-MGS-D30

$11.13

9

GRIP, L. HANDLE This part replaces 53150-MGS-305.

53150-MGS-D30

$11.13

10

HOUSING, THROTTLE (UPPER) (RR.)

53167-MGS-D30

$15.49

11

HOUSING, THROTTLE (LOWER) (FR.)

53168-MGS-D30

$16.50

12

BRACKET, HANDLE LEVER

53172-KT7-751

$26.12

13

LEVER, L. HANDLE

53178-KV0-000

$16.46

13

LEVER, L. HANDLE This part replaces 53178-KV0-305.

53178-KV0-000

$16.46

14

BOLT, CLUTCH CABLE ADJUSTING

53192-349-690

$6.72

15

COVER, LOCK NUT

88130-MFG-D00

$1.59

16

MIRROR, R. BACK

88210-MGS-D30

$75.61

16

MIRROR, R. BACK This part replaces 88210-MGS-305.

88210-MGS-D30

$75.61

17

MIRROR, L. BACK

88220-MGS-D30

$75.61

17

MIRROR, L. BACK This part replaces 88220-MGS-305.

88220-MGS-D30

$75.61

18

BOLT, ADAPTER (10MM)

90130-MGS-D30

$7.63

19

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

20

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.24

21

NUT, CAP (6MM)

90201-415-000

$1.99

22

NUT, HEX. (10MM) (LEFT HAND THREAD)

90310-MGS-D30

$2.43

23

NUT, FIXING

90321-KT7-760

$9.59

24

SCREW-WASHER (5X16)

90508-MGS-D30

$1.72

25

BAND, WIRE

90650-KW3-000

$4.28

26

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

27

CLAMP, HARNESS

90652-HC4-003

$5.68

28

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.24

29

SCREW, PAN (5X22)

93500-05022-0G

$0.85
