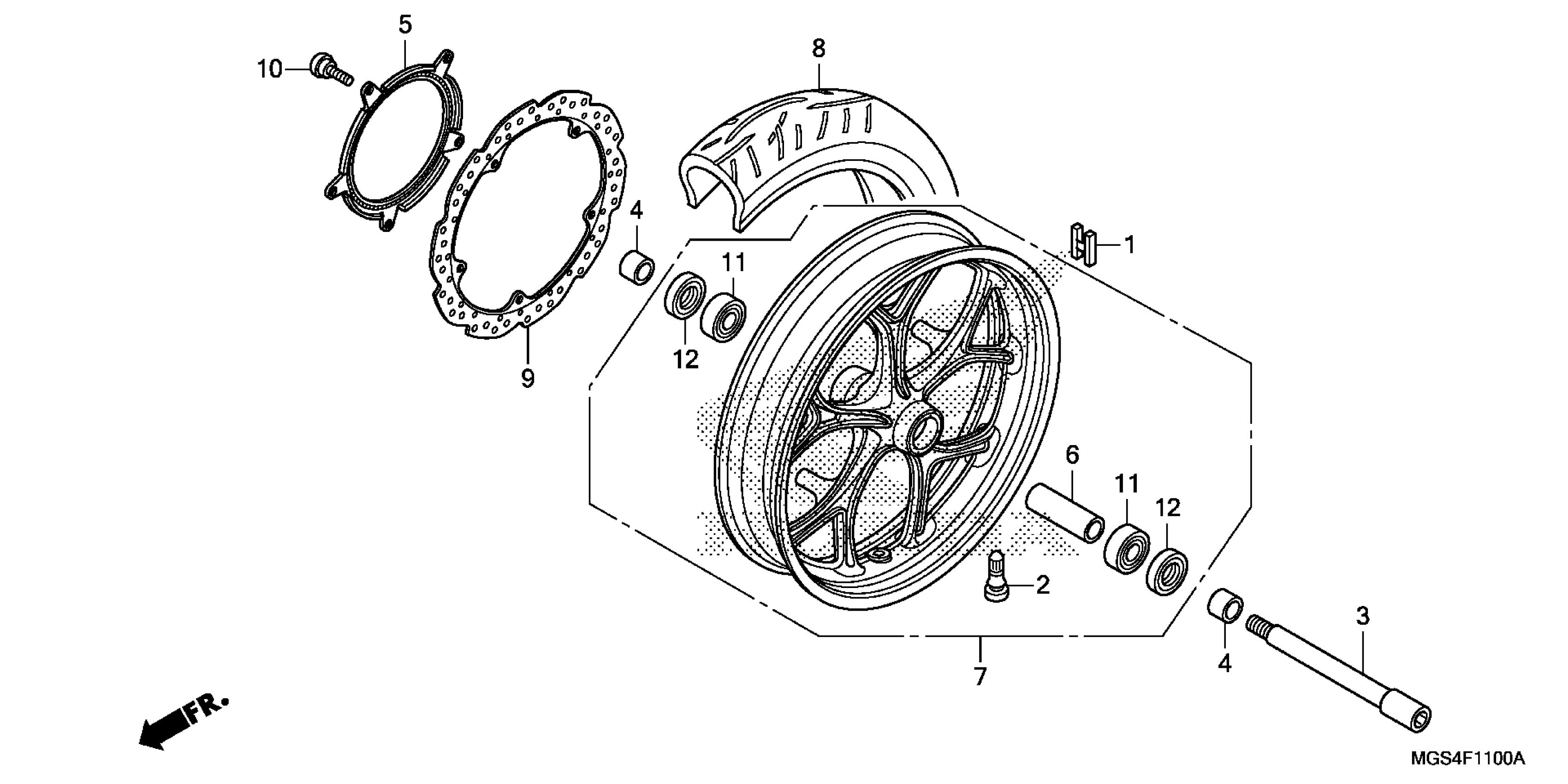

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

1

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

1

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

2

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$7.28

2

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

3

AXLE, FR. WHEEL

44301-MGS-D30

$53.20

4

COLLAR, FR. WHEEL SIDE

44311-MGS-D10

$16.30

6

COLLAR, FR. AXLE DISTANCE

44620-MGS-D10

$16.12

7

WHEEL SUB-ASSY., FR. This part replaces 44650-MGS-306.

44650-MGS-D11

$803.77

8

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) This part replaces 44711-MGS-D31.

44711-MGS-D36

$169.93

8

TIRE, FR This part replaces 44711-MGS-D32.

44711-MGS-D37

$174.46

8

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) This part replaces 44711-MGS-D33.

44711-MGS-D36

$169.93

8

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER) This part replaces 44711-MGS-D34.

44711-MGS-D36

$169.93

8

TIRE, FR This part replaces 44711-MGS-D35.

44711-MGS-D37

$174.46

9

DISK, FR. BRAKE (SUNSTAR)

45251-MGS-D31

$531.13

10

BOLT, DISK (8X25)

90105-MGS-D30

$2.92

11

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$12.93

12

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
