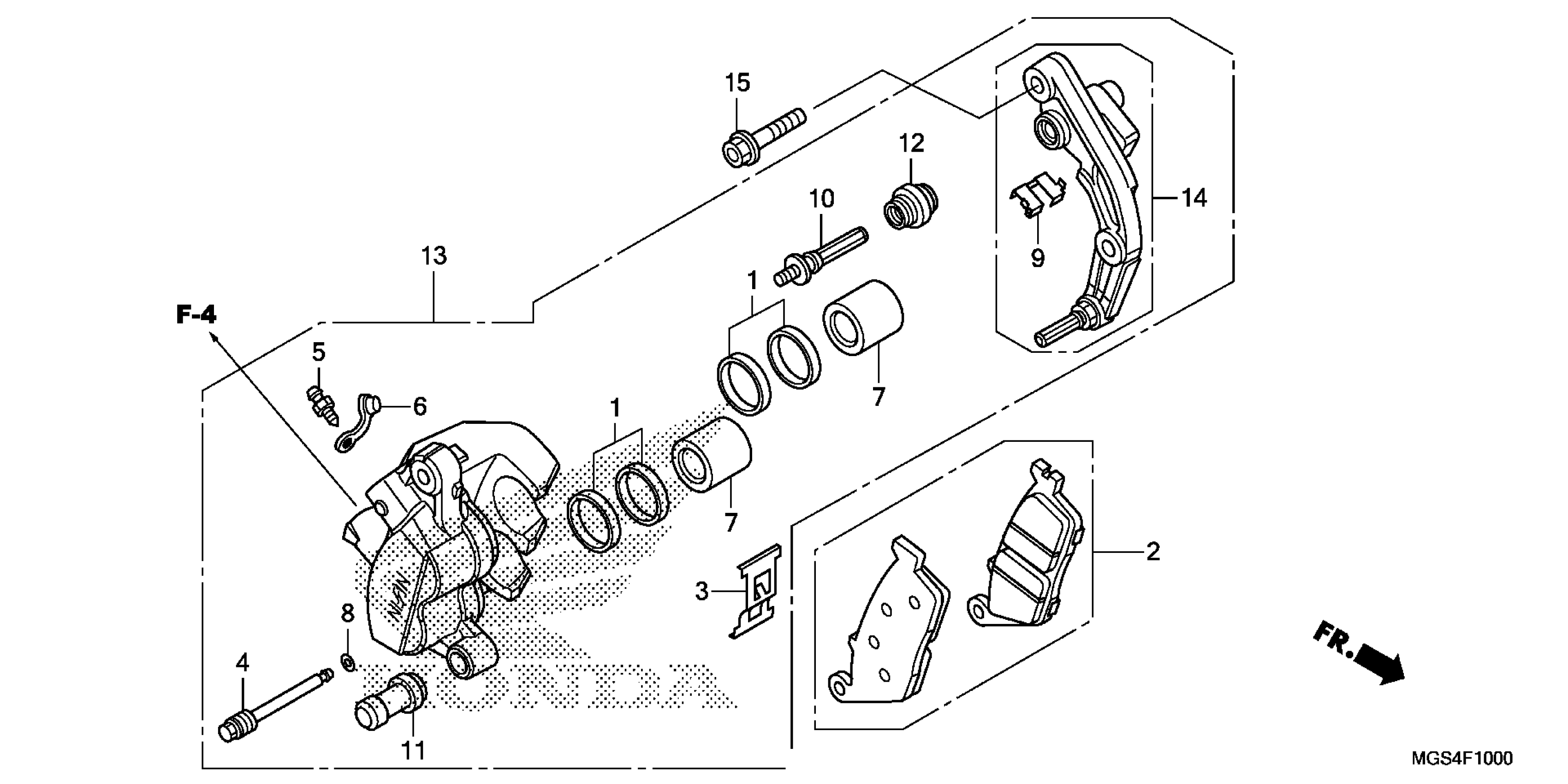

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 FRONT BRAKE CALIPER (1) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, FR. This part replaces 06455-MGS-D31.

06455-MGS-D32

$46.05

PAD SET, FR.

06455-MGS-D32

$46.05

SPRING, PAD

43108-MCT-006

$4.69

PIN, HANGER

43215-KZ4-J41

$5.02

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

PISTON (NISSIN)

45107-ML4-006

$34.77

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-ML7-921

$5.21

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., R. FR.

45250-MGS-D31

$384.16

BRACKET SUB-ASSY., R. FR.

45290-MGS-D31

$114.49

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54
