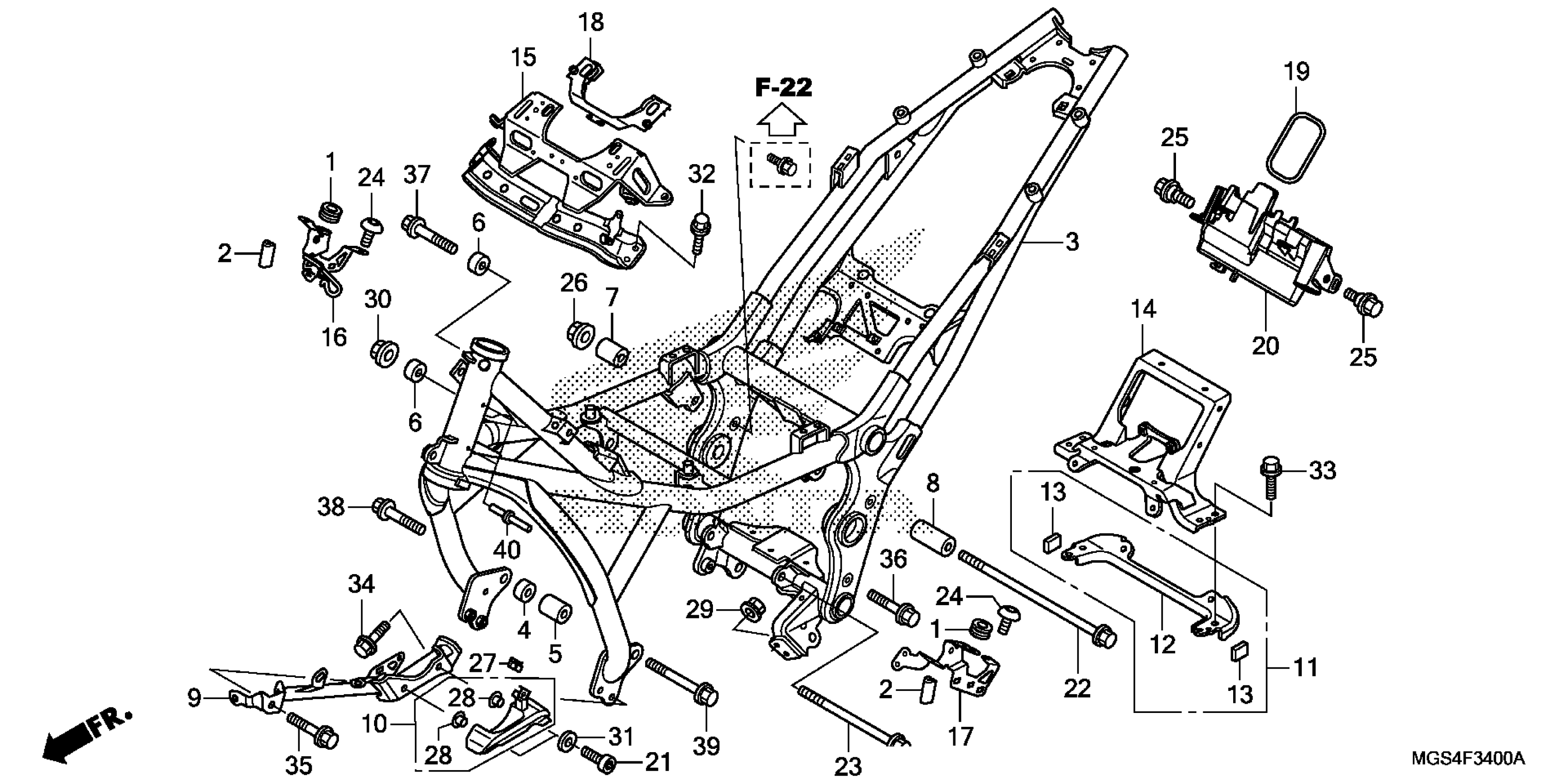

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 FRAME Diagram

#

Description
Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.77

2

TRIM, FUEL TANK *NH1* (BLACK)

17516-KCZ-000ZB

$1.84

3

FRAME *NH389M* (MAT BULLET SILVER)

50100-MJJ-D30ZA

$2,460.13

4

COLLAR A, R. ENGINE HANGER

50191-MGS-D10

$7.30

5

COLLAR A, L. ENGINE HANGER

50192-MGS-D10

$10.90

6

COLLAR B, ENGINE HANGER

50193-MGS-D10

$5.06

7

COLLAR C, R. ENGINE HANGER

50194-MGS-D10

$10.26

8

COLLAR C, L. ENGINE HANGER

50195-MGS-D10

$11.91

11

STAY SET, FR. TANK

50230-MGS-D30

$15.51

12

STAY, FR. TANK

50232-MGS-D30

$15.51

13

RUBBER, CROSS PLATE

50233-MGS-D30

$0.90

14

PLATE, CENTER CROSS

50234-MGS-T50

$66.20

15

PLATE B, CROSS

50236-MGS-D30

$81.33

16

STAY, R. AIR CLEANER HOUSING

50237-MGS-D30

$12.42

17

STAY, L. AIR CLEANER HOUSING

50238-MGS-D30

$10.14

18

RUBBER, CROSS PLATE

50239-MGS-D30

$7.06

19

BAND, TOOL

80123-GN5-900

$2.43

20

BOX, ELECTRIC CONTROL UNIT

81230-MGS-D30

$11.14

22

BOLT, FLANGE (12X276)

90103-MGS-D30

$17.84

23

BOLT, FLANGE (12X168)

90104-MGS-D30

$11.04

24

SCREW, PAN (6X12)

90106-KSE-000

$1.74

25

BOLT, FLANGE (6MM)

90111-162-000

$2.62

26

NUT, FLANGE (12MM)

90364-MEJ-000

$1.57

30

NUT, FLANGE (12MM)

94050-12000

$0.94

32

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

33

BOLT, FLANGE (6X22)

95701-06022-08

$1.64

36

BOLT, FLANGE (12X35)

95701-12035-08

$2.88

37

BOLT, FLANGE (12X45)

95701-12045-08

$1.89

38

BOLT, FLANGE (12X55)

95701-12055-08

$2.99

39

BOLT, FLANGE (12X80)

95701-12080-08

$4.01

40

SCREW, RIVET (1.5X5) (NOT AVAILABLE) | Use from Frame SN DK101193.

90841-001-000

$1.38
