Description

Price

1

CRANKCASE SET

11000-MGS-D30

$2,381.38

2

PLATE, PARTITION

11103-MGS-D31

$5.20

3

ORIFICE (1.1MM)

11207-MFL-000

$3.42

4

ORIFICE (1.5MM)

11207-MGS-D30

$3.77

5

BOLT, SEALING (20MM)

12208-PR3-000

$8.30

6

STAY, FUEL HOSE

17640-MGS-D30

$4.13

7

SWITCH ASSY., NEUTRAL

35600-MFJ-D01

$19.00

8

SWITCH ASSY., OIL PRESSURE

37241-RNA-A01

$79.23

9

SENSOR ASSY., SPEED

37700-MGS-D31

$152.46

11

BOLT, SEALING (12X8)

90002-RGA-000

$5.80

12

BOLT, FLANGE (6X16)

90004-MGS-D30

$0.91

13

BOLT, FLANGE (9X150)

90015-MGS-D31

$12.03

14

BOLT, FLANGE (9X125)

90016-MFA-D01

$4.38

16

BOLT, FLANGE (8X100)

90021-MGS-D30

$3.04

17

BOLT, FLANGE (6X32)

90022-MGS-D30

$2.48

18

WASHER, SEALING (8MM)

90442-028-000

$1.61

20

WASHER, NEUTRAL

90443-MJ6-000

$1.75

21

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

22

WASHER (12MM)

90545-KF0-000

$2.90

23

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.00

24

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

26

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.48

27

BOLT, FLANGE (8X45)

95701-08045-00

$1.33

28

BOLT, FLANGE (8X70)

95701-08070-00

$2.62

29

BOLT, FLANGE (10X70)

95701-10070-00

$2.00

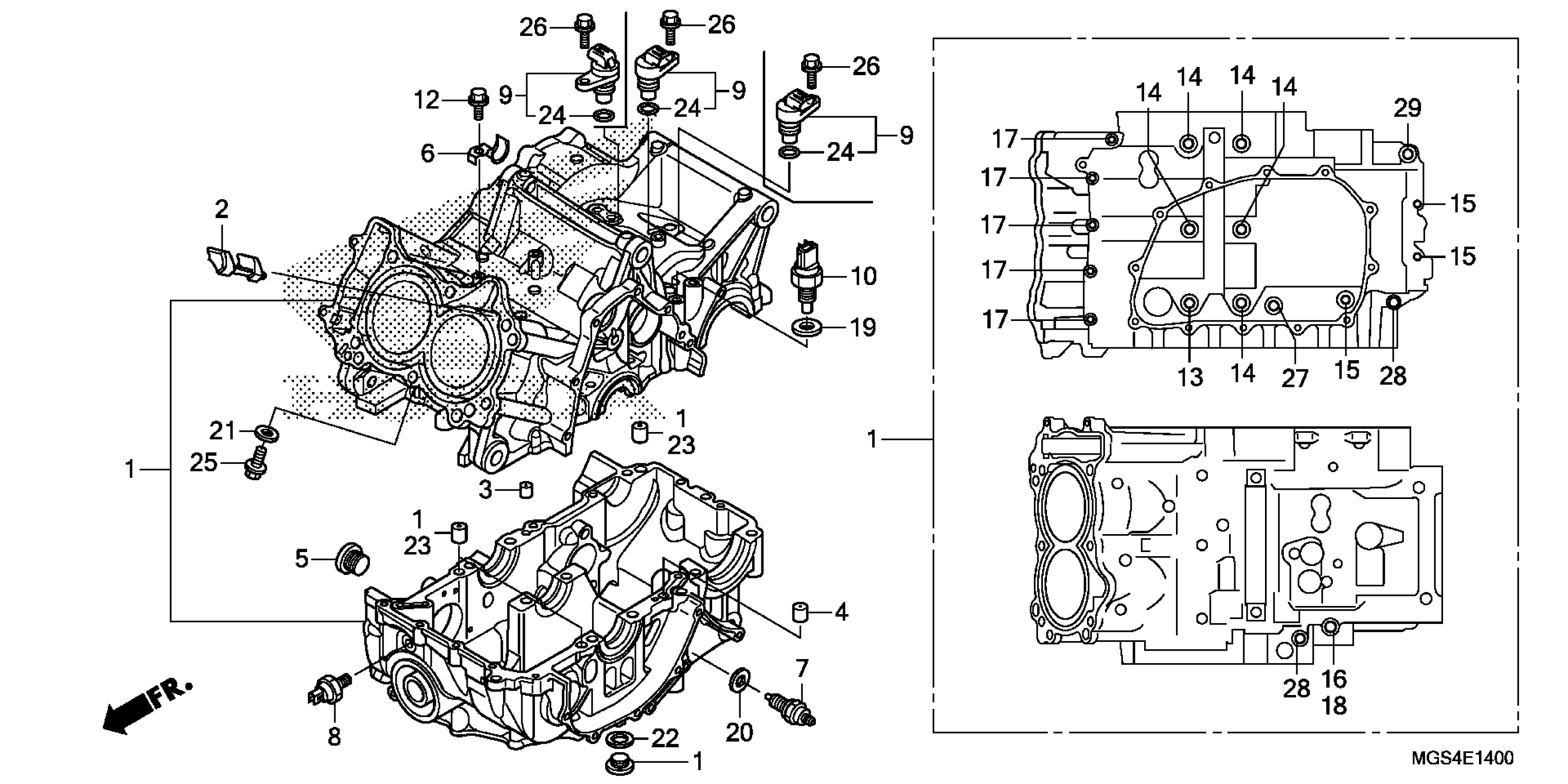

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 CRANKCASE Diagram
