Description

Price

1

STAY, BATTERY BOX

17312-MGS-T50

$38.28

2

BATTERY (YTZ12S) (YUASA) (MSDS) This part replaces 31500-MCF-643.

31500-MCF-644

$156.43

2

BATTERY (YTZ12S) (YUASA) (MSDS) This part replaces 31500-MCF-643AH.

31500-MCF-644

$156.43

3

CABLE, STARTER BATTERY

32401-MGS-D30

$39.24

4

COVER, STARTER MAGNETIC TERMINAL

32406-MGS-D31

$7.44

5

CABLE, STARTER MOTOR

32410-MGS-D30

$34.66

6

COVER, BATTERY TERMINAL

32411-MGS-D31

$6.12

7

CABLE, BATTERY GROUND

32601-MGS-D30

$29.47

8

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$110.32

9

RUBBER, SHOCK

35856-KBG-007

$9.63

10

COLLAR, FR. FENDER SETTING

61101-MN4-000

$5.19

11

CUSHION A, RR. FENDER

80105-028-000

$4.88

12

BOX, BATTERY

81210-MGS-D30

$22.50

13

TUBE, BATTERY DRAIN

81212-MGS-D30

$7.32

14

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.26

15

BOLT, SOCKET (5X9)

90111-MR5-000

$2.41

16

CLAMP, WIRE HARNESS

91599-SF0-003

$5.21

17

CLIP, TUBE (C9)

95002-50000

$1.16

18

BAND B2, BATTERY

95012-13001

$5.04

19

FUSE, BLADE (30A)

98200-33000

$1.21

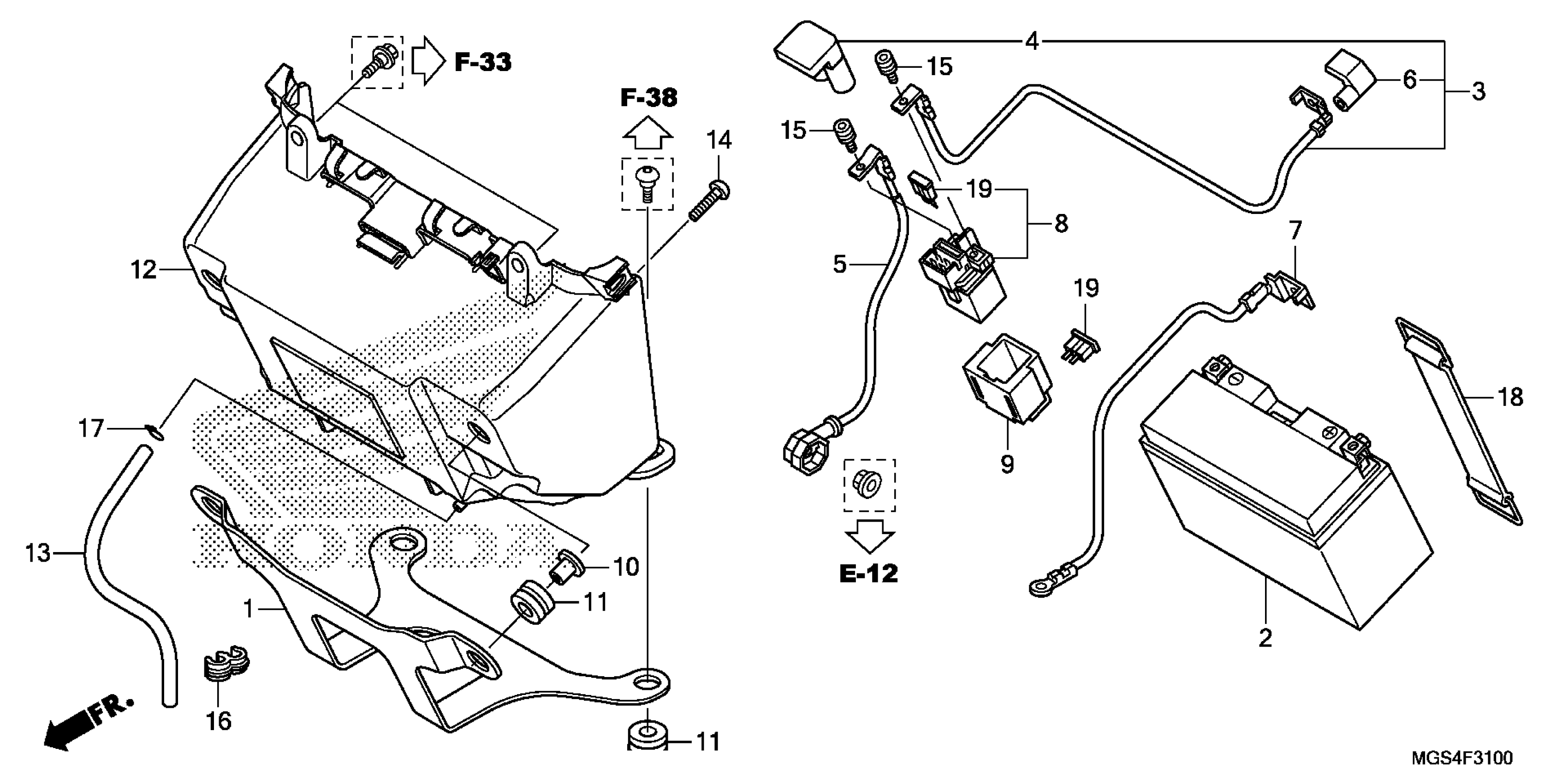

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 BATTERY Diagram
