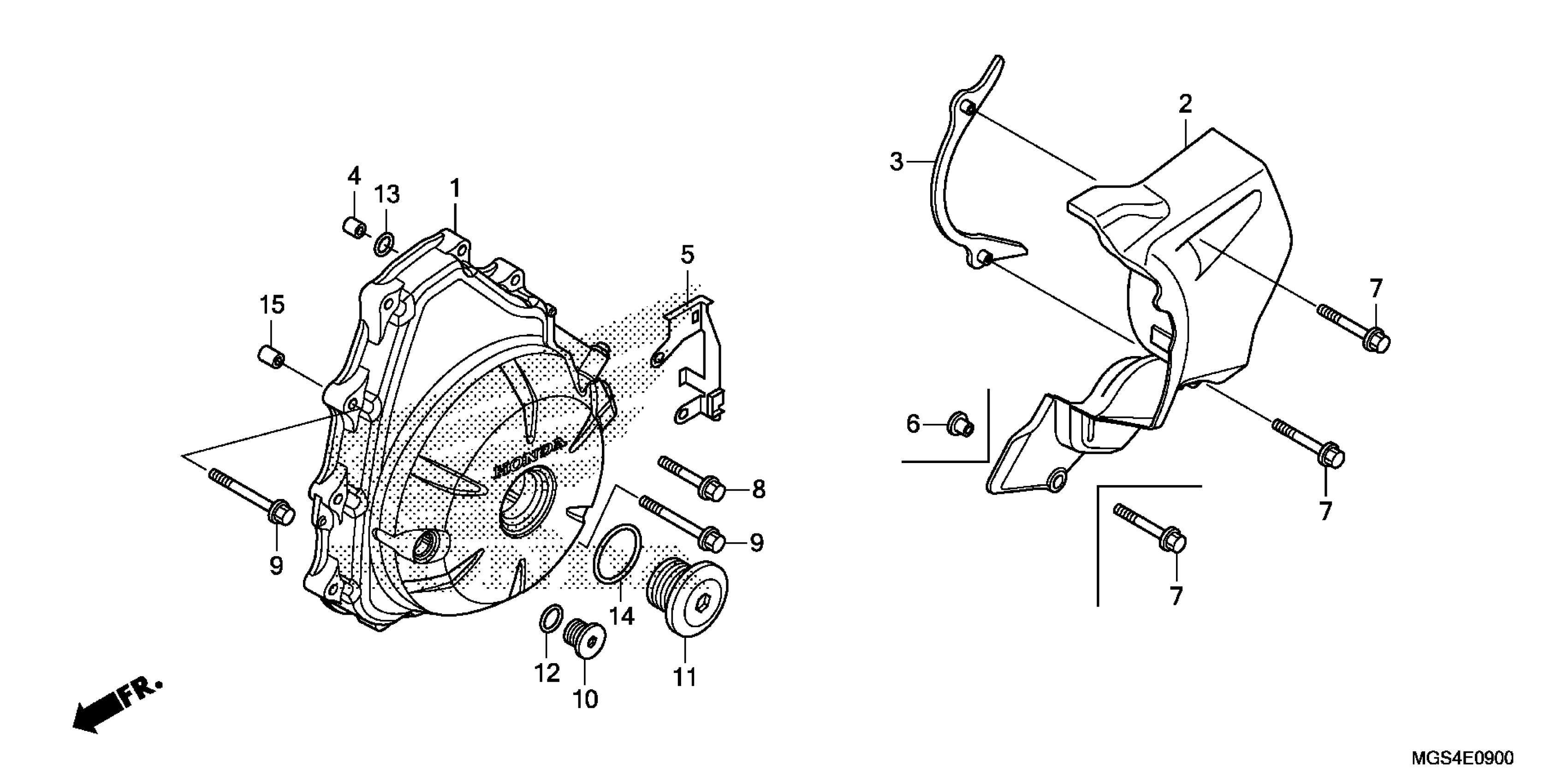

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 ALTERNATOR COVER Diagram

COVER, ALTERNATOR This part replaces 04101-MGS-D30.

04101-MGS-D31

Unavailable

COVER, ALTERNATOR

04101-MGS-D31

Unavailable

COVER, L. RR.

11351-MGS-D30

$68.58

PLATE, DRIVE CHAIN GUIDE

11355-MGS-D30

$17.68

ORIFICE (0.8MM)

15516-MGS-D30

$5.54

GUIDE, L. RR. COVER

32153-MGS-D30

$4.91

COLLAR, FAIRING SETTING

64209-MN5-000

$2.80

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.64

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.86

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.75

CAP (14MM)

90084-MN8-010

$11.50

CAP (30MM)

90087-MR1-000

$17.87

O-RING (13.8X2.5)

91303-377-000

$3.18

SEAL, PLUG (11.5X7) O-RING (4.9X1.9) O-RING (7.8X2.2)

91301-PC9-003

$2.80

O-RING (7.7X2.3) (ARAI) This part replaces 91308-283-000.

91301-PC9-003

$2.80

O-RING (7.7X2.3) (ARAI) This part replaces 91313-393-003.

91301-PC9-003

$2.80

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.28

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04
