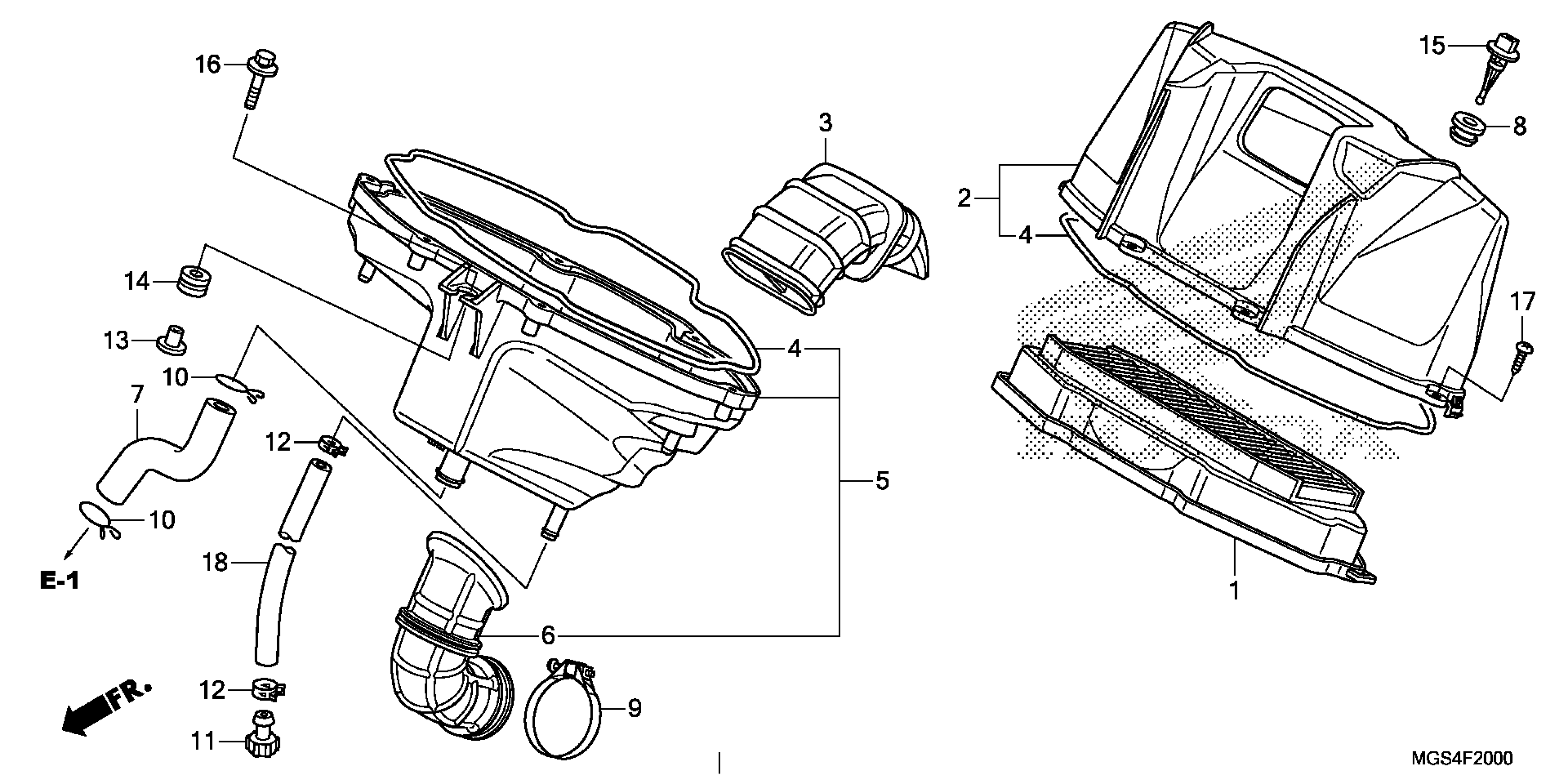

Honda NC700XAC (13) NC700X, JPN, VIN# JH2RC635-DK100001 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17210-MGS-D30

$41.64

COVER SUB-ASSY., AIR CLEANER

17220-MGS-D31

$121.10

DUCT, AIR CLEANER

17222-MGS-D30

$77.95

SEAL, AIR CLEANER

17223-MGS-D30

$10.44

CASE SUB-ASSY., AIR CLEANER

17230-MGS-D31

$164.92

TUBE, AIR CLEANER CONNECTING

17232-MGS-D31

$65.41

TUBE, BREATHER

17233-MGS-D30

$8.36

GROMMET, TA SENSOR

17234-MGS-D30

$2.52

BAND, AIR CLEANER CONNECTING TUBE (56)

17235-MGS-D31

$4.92

CLIP, BREATHER TUBE

17236-MGS-D30

$3.20

PLUG

17237-MGS-D30

$5.75

CLAMP, TUBE

17238-MGS-D30

$1.89

COLLAR, AIR CLEANER MOUNTING

17239-MGS-D30

$3.92

RUBBER, TAILLIGHT

33712-KT1-670

$4.48

SENSOR ASSY., AIR TEMPERATURE

37880-MCA-003

$40.02

BOLT-WASHER (6X25)

93404-06025-08

$1.87

SCREW, TAPPING (5X20)

93903-25480

$1.49
