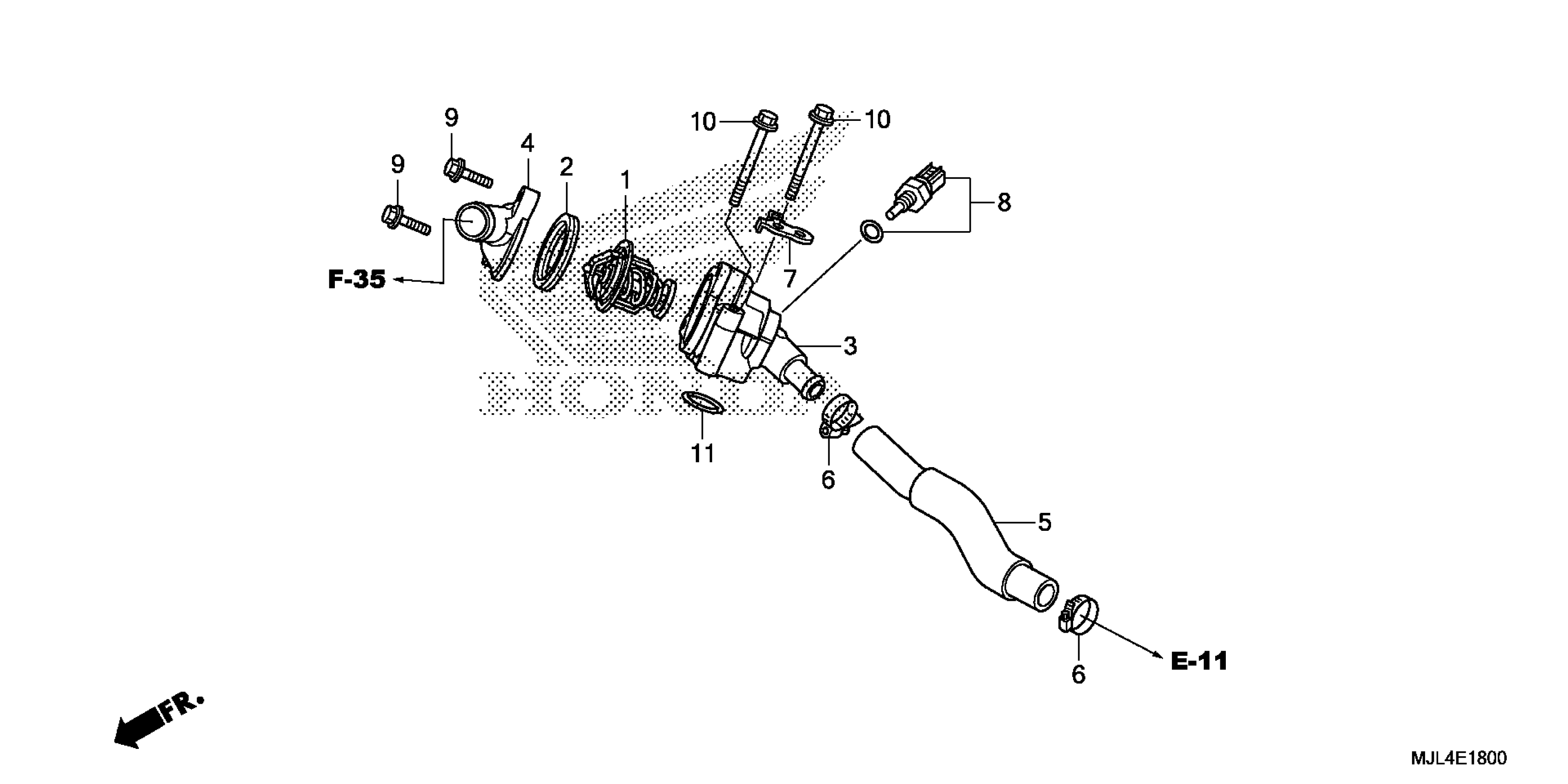

Honda NC700XA (15) NC700X, JPN, VIN# JH2RC630-FK100001 THERMOSTAT Diagram

THERMOSTAT

19300-MCJ-003

$51.92

RUBBER, THERMOSTAT

19305-KV3-010

$6.07

CASE, THERMOSTAT

19310-MGS-D30

$92.13

COVER, THERMOSTAT

19316-MGS-D30

$26.48

HOSE, WATER BYPASS

19322-MGS-D30

$15.93

CLAMP, WATER HOSE (25MM)

19504-KY1-003

$10.29

STAY, HARNESS

32150-MGS-D30

$2.70

SENSOR ASSY., WATER TEMPERATURE

37870-MGS-D31

$49.80

BOLT, FLANGE (6X22) (NSHF)

90006-GHB-660

$1.80

BOLT, FLANGE (6X55) (NSHF)

90006-GHB-740

$1.92

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92
