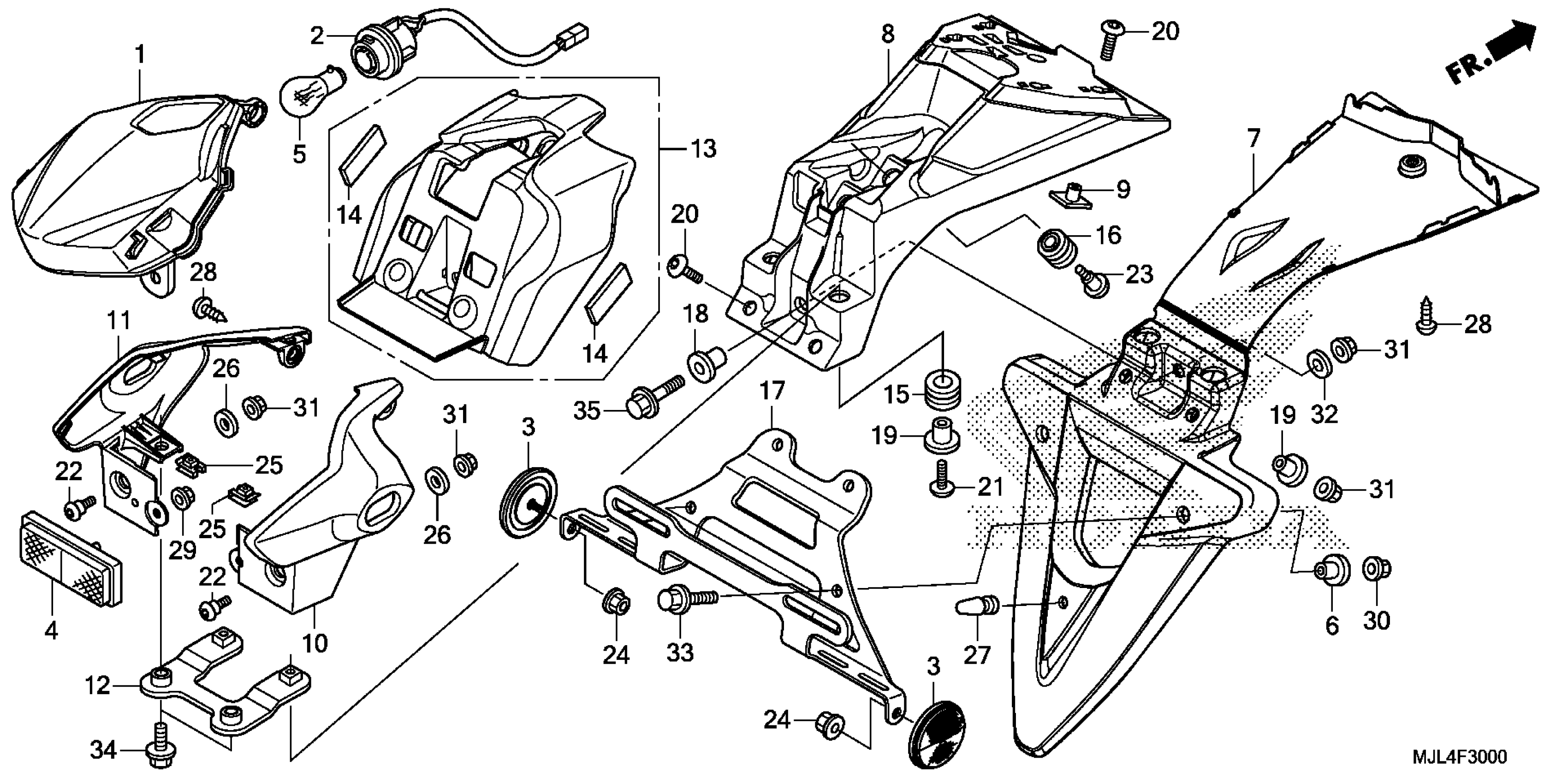

Honda NC700XA (15) NC700X, JPN, VIN# JH2RC630-FK100001 TAILLIGHT Diagram

#

Description
Price

1

BASE, TAILLIGHT (COO) This part replaces 33703-MGS-D31.

33703-MGS-305

$91.46

1

BASE, TAILLIGHT (COO)

33703-MGS-305

$91.46

2

WIRE, TAILLIGHT

33704-MJL-A31

$16.82

3

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

4

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$14.85

5

BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)

34906-447-711

$8.64

6

COLLAR, FR. FENDER

61105-KM7-910

$2.95

7

FENDER A, RR.

80100-MJJ-C80

$43.34

8

STAY A, FENDER

80101-MGS-D30

$87.38

9

NUT, RR. FENDER

80104-KJ2-000

$3.90

10

COVER, R. TAILLIGHT

80115-MGS-D30

$16.63

11

COVER, L. TAILLIGHT

80116-MGS-D30

$16.63

12

STAY, TAILLIGHT COVER

80118-MGS-C80

$7.09

13

SPLASH GUARD ASSY., RR. FENDER

80120-MGS-C80

$27.18

14

RUBBER, RR. FRAME

80129-MEG-000

$1.32

15

RUBBER, SIDE COVER

83545-KCJ-690

$1.29

16

RUBBER, TAILLIGHT MOUNTING

83545-KZZ-900

$1.47

17

BRACKET, NUMBER PLATE

84700-MGS-C80

$27.72

18

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.90

19

COLLAR, SIDE MOUNTING

90001-961-670

$5.19

20

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.26

21

BOLT, SPECIAL (6X22)

90085-MAJ-A20

$3.62

22

SCREW, PAN (6X14)

90106-KBV-000

$3.73

23

SCREW, PAN (6X16.5)

90113-MGS-D30

$2.82

24

NUT, U (6MM) (FUSE RASHI)

90301-473-003

$3.89

25

NUT, CLIP (6MM)

90305-GK8-000

$2.21

26

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.69

27

PLUG, CONE

90899-MFJ-A00

$3.29

28

SCREW, TAPPING (4X12)

93903-24320

$0.84

29

NUT, FLANGE (5MM)

94050-05000

$1.21

30

NUT, FLANGE (6MM)

94050-06070

$1.34

31

NUT, FLANGE (6MM)

94050-06080

$0.60

32

WASHER, PLAIN (6MM)

94101-06800

Unavailable

33

BOLT, FLANGE (6X16)

95701-06016-07

$1.50

34

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

35

BOLT, FLANGE (6X20)

95701-06020-08

$0.35
