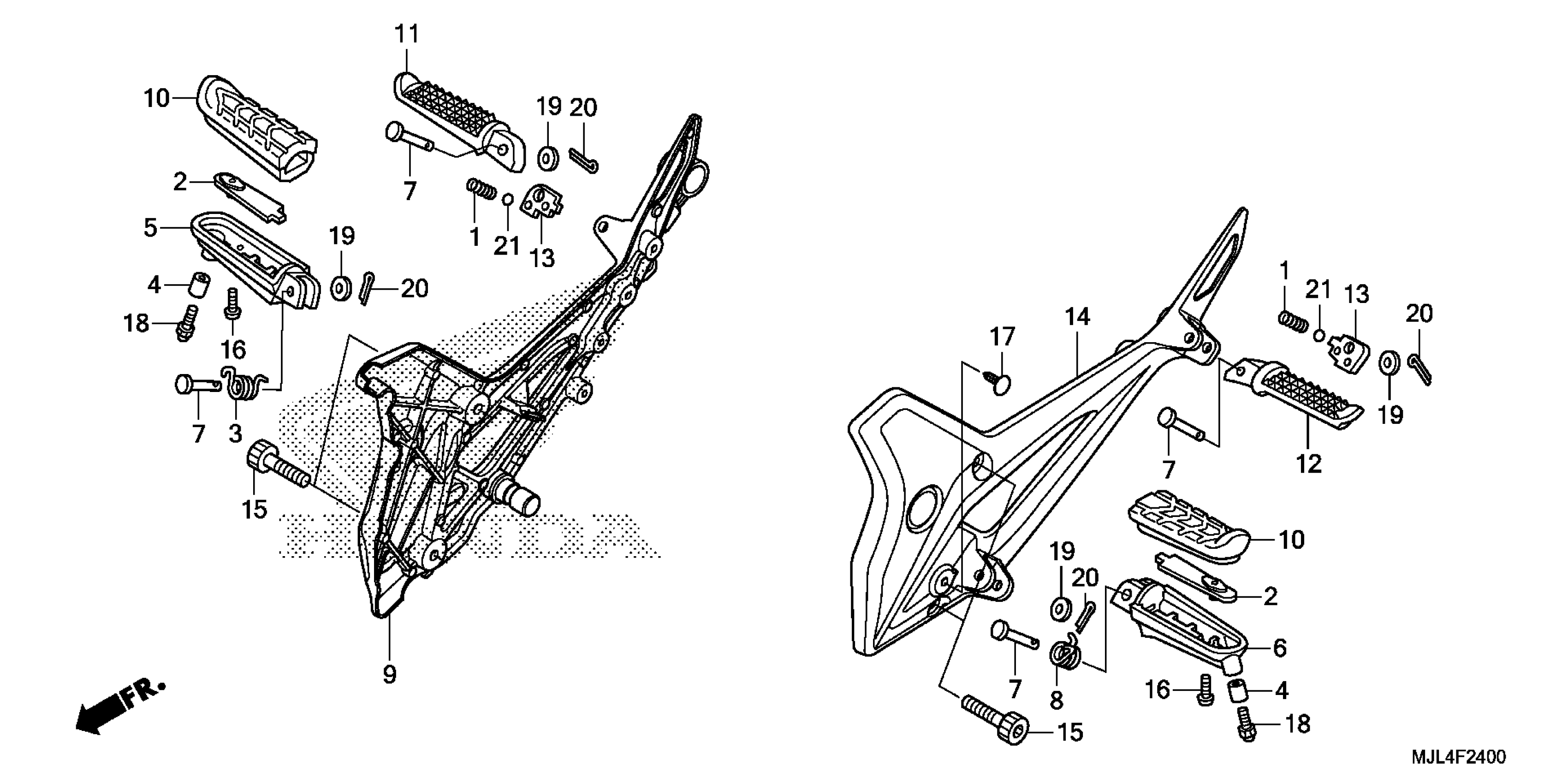

Honda NC700XA (15) NC700X, JPN, VIN# JH2RC630-FK100001 STEP Diagram

SPRING, KICK STARTER STOPPER

28333-300-000

$2.92

PLATE, STEP SETTING

50609-MBW-000

$5.44

SPRING, R. STEP RETURN

50617-445-840

$5.44

COLLAR (6X6.5)

50631-MGS-D30

$1.89

ARM, R. MAIN STEP (COO)

50635-MGS-305

$63.03

ARM, L. MAIN STEP (COO)

50636-MGS-305

$62.98

PIN, STEP BAR

50639-MFL-D20

$2.92

SPRING, L. STEP RETURN

50644-445-840

$5.44

HOLDER, R. STEP

50650-MJL-D30

$302.82

RUBBER, MAIN STEP (COO) This part replaces 50661-MBW-000.

50661-MJM-305

$8.80

RUBBER, MAIN STEP (COO)

50661-MJM-305

$8.80

ARM, R. PILLION STEP (COO)

50711-MGS-305

$66.26

ARM, L. PILLION STEP (COO)

50712-MGS-305

$62.47

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.48

HOLDER, L. STEP

50750-MJL-D30

$285.47

BOLT, SOCKET (8X34)

90112-MBR-J10

$3.10

BOLT, SPECIAL (5X14)

90118-MBW-000

$3.04

BOLT, CAP (6X16)

92501-06016-0A

$2.91

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
