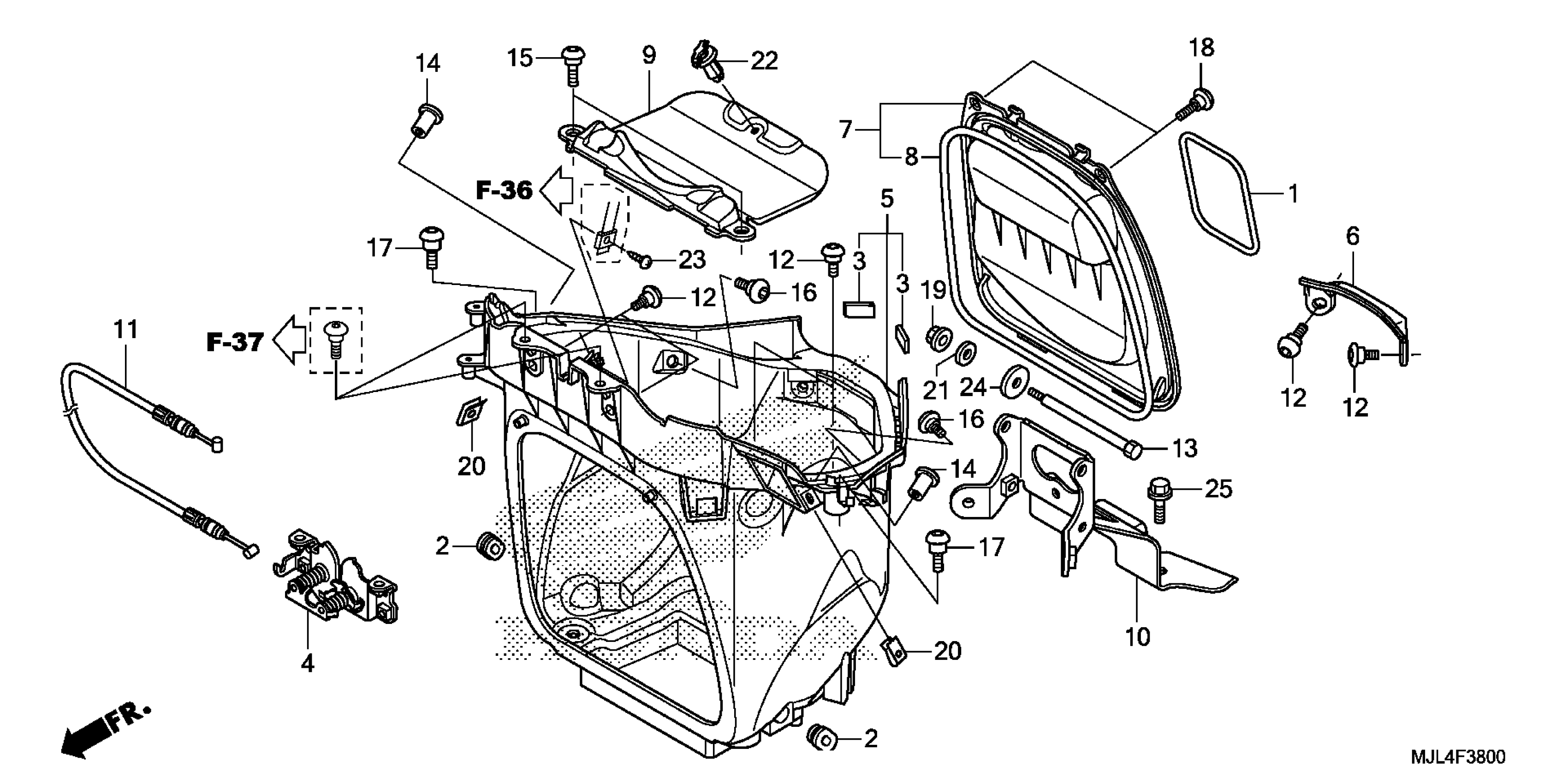

Honda NC700XA (15) NC700X, JPN, VIN# JH2RC630-FK100001 LUGGAGE BOX Diagram

BAND, U-LOCK

50290-MZ7-000

$19.92

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.99

SEAL, LUGGAGE TRAY

81304-MGS-D30

$1.49

CATCH, LID

81310-MGS-D31

$48.39

BOX ASSY., LUGGAGE

81320-MGS-D30

$144.66

TRAY, LUGGAGE BOX

81330-MGS-D30

$4.96

LID ASSY., MAINTENANCE

81340-MGS-D30

$43.97

SEAL, MAINTENANCE LID

81351-MGS-D30

$7.39

LID, OWNER'S MANUAL BOX This part replaces 81360-MGS-D30.

81360-MGS-D31

$9.26

BRACKET, HINGE

82122-MGS-D30

$40.79

CABLE, LID OPEN

82140-MGS-D31

$16.26

SCREW, PAN (6X14)

90106-KBV-000

$3.90

BOLT, HINGE

90109-MGS-D30

$5.87

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

SCREW, SPECIAL (6X16)

90114-MFL-000

$2.26

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.59

SCREW, PAN (6X16)

90117-MGS-D30

$3.77

SCREW, PAN (5X15)

90150-MBG-000

$2.51

NUT, U (6MM)

90301-MG3-000

$6.91

NUT, SPRING (5MM)

90320-GC3-000

$2.20

WASHER (6MM)

90403-MFA-D00

$1.72

CLIP, TRIM

90683-GAZ-003

$3.80

SCREW, TAPPING (4X12)

93903-24380

$1.49

WASHER, PLAIN (8MM)

94102-08700

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
