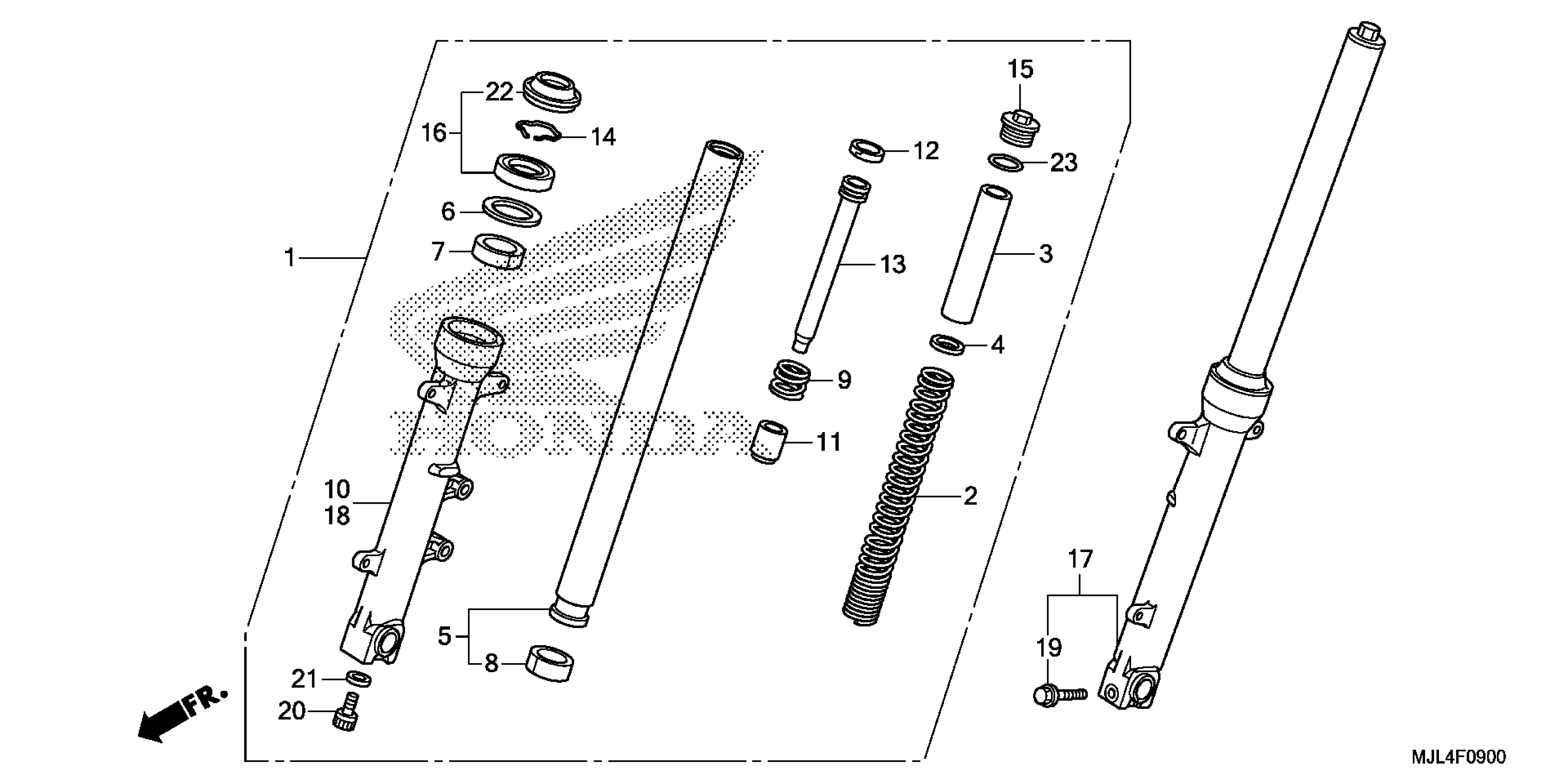

Description

Price

1

FORK ASSY., R. FR. (COO) This part replaces 51400-MGS-305.

51400-MKA-305

$676.23

2

SPRING, FR. FORK (SHOWA)

51401-MGS-D31

$91.82

3

COLLAR, SPRING

51402-ML7-921

$26.39

4

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.78

5

PIPE, FR. FORK (SHOWA)

51410-MGS-D31

$380.72

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

7

BUSH, GUIDE

51414-MFJ-A51

$7.25

8

BUSH, SLIDER

51415-MFJ-A51

$7.25

9

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$7.28

10

CASE, R. (LOWER) (SHOWA)

51420-MGS-D31

$385.28

11

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

12

RING, PISTON

51437-MM5-003

$5.31

13

PIPE, SEAT

51440-MGS-D31

$45.69

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51454-MM9-671

$38.35

16

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$22.76

17

FORK ASSY., L. FR. (COO) This part replaces 51500-MGS-305.

51500-MKA-305

$676.23

18

CASE, L. (LOWER) (SHOWA)

51520-MGS-D31

$385.28

19

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

20

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

21

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

22

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

22

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.
