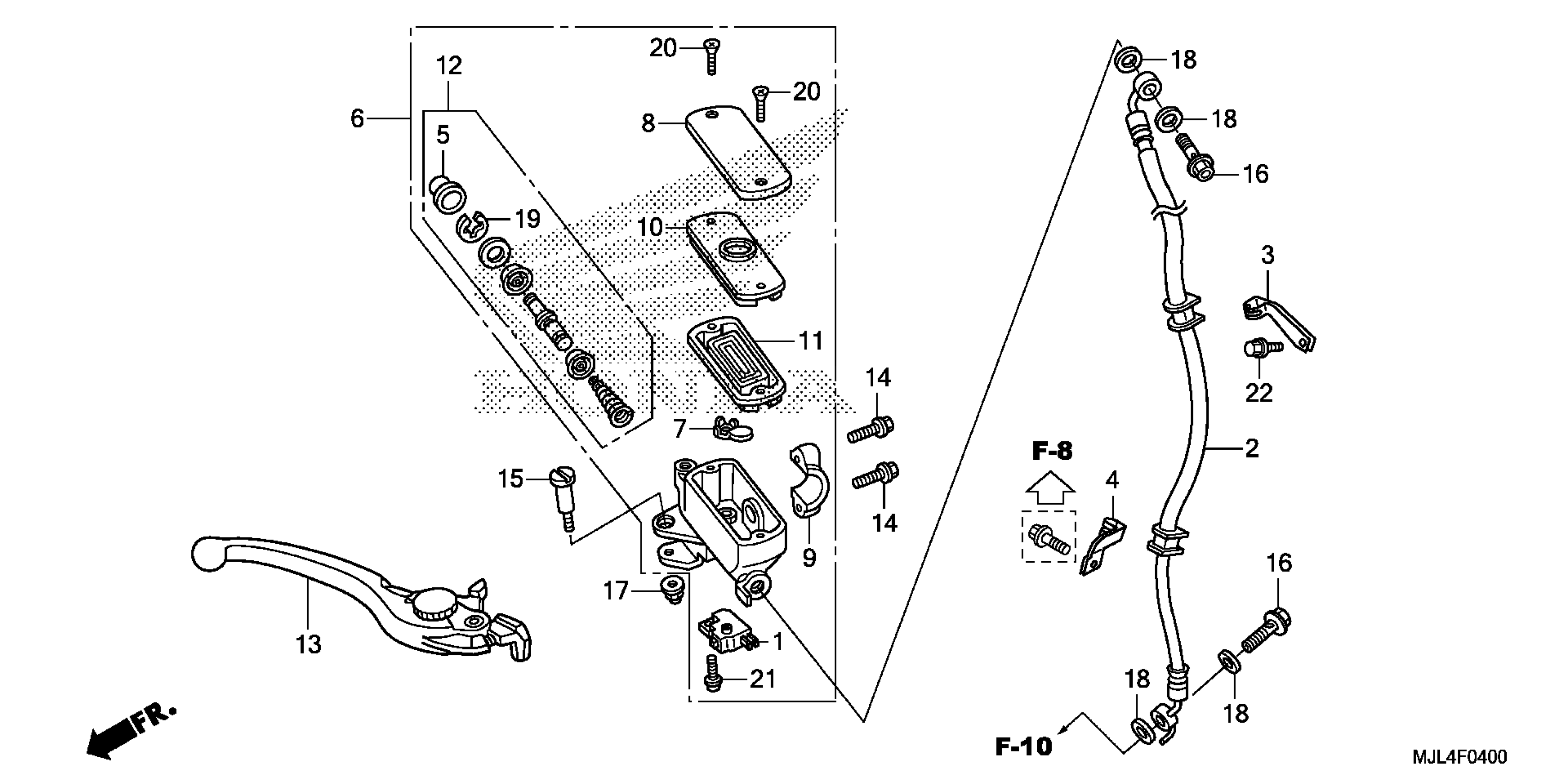

Honda NC700XA (15) NC700X, JPN, VIN# JH2RC630-FK100001 FRONT BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

2

HOSE, FR. BRAKE

45125-MJL-D31

$57.79

3

CLAMP A, FR. BRAKE

45155-MGS-D30

$8.60

4

CLAMP B, FR. BRAKE HOSE

45156-MGS-D30

$8.24

5

BOOT

45504-410-003

$11.17

6

MASTER CYLINDER SUB-ASSY., FR. (NISSIN) This part replaces 45510-MGS-305.

45510-MGS-D31

$258.54

7

PROTECTOR

45512-MA6-006

$4.09

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

9

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

10

PLATE, DIAPHRAGM

45518-MM5-006

$9.79

11

DIAPHRAGM

45520-MM5-006

$13.87

12

MASTER CYLINDER SET

45530-KVY-911

$23.84

13

LEVER ASSY., R. HANDLE

53170-MEJ-016

$40.28

13

LEVER ASSY., R. HANDLE This part replaces 53170-MEJ-305.

53170-MEJ-016

$40.28

14

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

Unavailable

16

BOLT, OIL (10X22)

90145-MS9-612

$6.99

17

NUT, CAP (6MM)

90201-415-000

Unavailable

18

WASHER, OIL BOLT

90545-300-000

$5.79

19

CIRCLIP

90651-MA5-671

$2.38

20

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

21

SCREW-WASHER (4X12)

93893-04012-07

$1.32

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

22

BOLT, FLANGE (6X10)

96001-06010-00

$1.60
