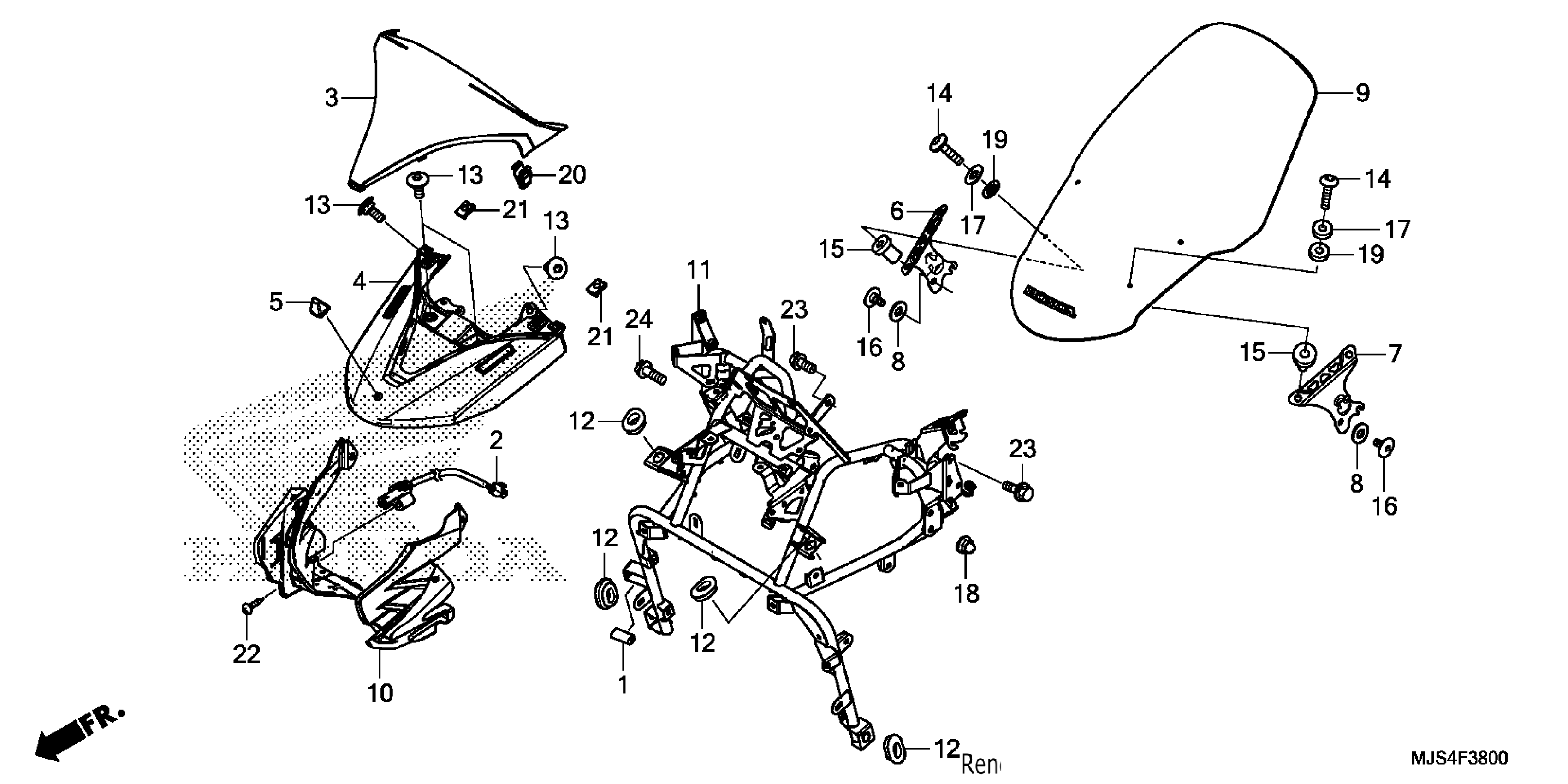

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 WINDSCREEN@FRONT GARNISH Diagram

TRIM, FUEL TANK

17516-HC4-000

$3.90

SENSOR, OPEN AIR TEMPERATURE

37880-MJS-J71

$65.52

COVER, METER (UPPER) *NHB01* (GRAPHITE BLACK)

64110-MJS-J70ZA

$146.11

GARNISH, FR. *NHB01* (GRAPHITE BLACK)

64130-MJS-J70ZA

$109.20

RUBBER, GARNISH

64131-MJS-J70

$5.43

STAY, R. WINDSCREEN *NH105* (MAT BLACK)

64201-MJS-J70ZA

$38.72

STAY, L. WINDSCREEN *NH105* (MAT BLACK)

64202-MJS-J70ZA

$38.72

WASHER, BUMPER BOLT

90148-SA0-000

$3.62

WINDSCREEN SET (TYPE1) (WL)(COO)

64210-MJS-305ZA

$436.20

COVER, FR. (UPPER)

64410-MJS-J70

$42.15

STAY, FR. COWL

64501-MJS-J70

$384.30

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.90

SCREW, PAN (5X20)

90103-MBG-000

$2.02

NUT, WELL (5MM)

90111-MGS-D70

$3.39

BOLT, SCREEN STAY

90117-MEW-920

$2.90

WASHER, THRUST (5MM)

90504-964-000

$1.90

NUT, FLANGE (8MM)

94050-08070

$1.49

WASHER, SCREEN SETTING

64205-166-610

$2.21

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$1.49

NUT, CLIP (5MM)

90677-KAN-961

$4.07

SCREW, TAPPING (4X10)

93903-24280

$1.49

BOLT, FLANGE (8X18)

95701-08018-07

$1.49

BOLT, FLANGE (8X25)

95701-08025-07

$1.49

BOLT, FLANGE (8X25) This part replaces 95801-08025-07.

95701-08025-07

$1.49
