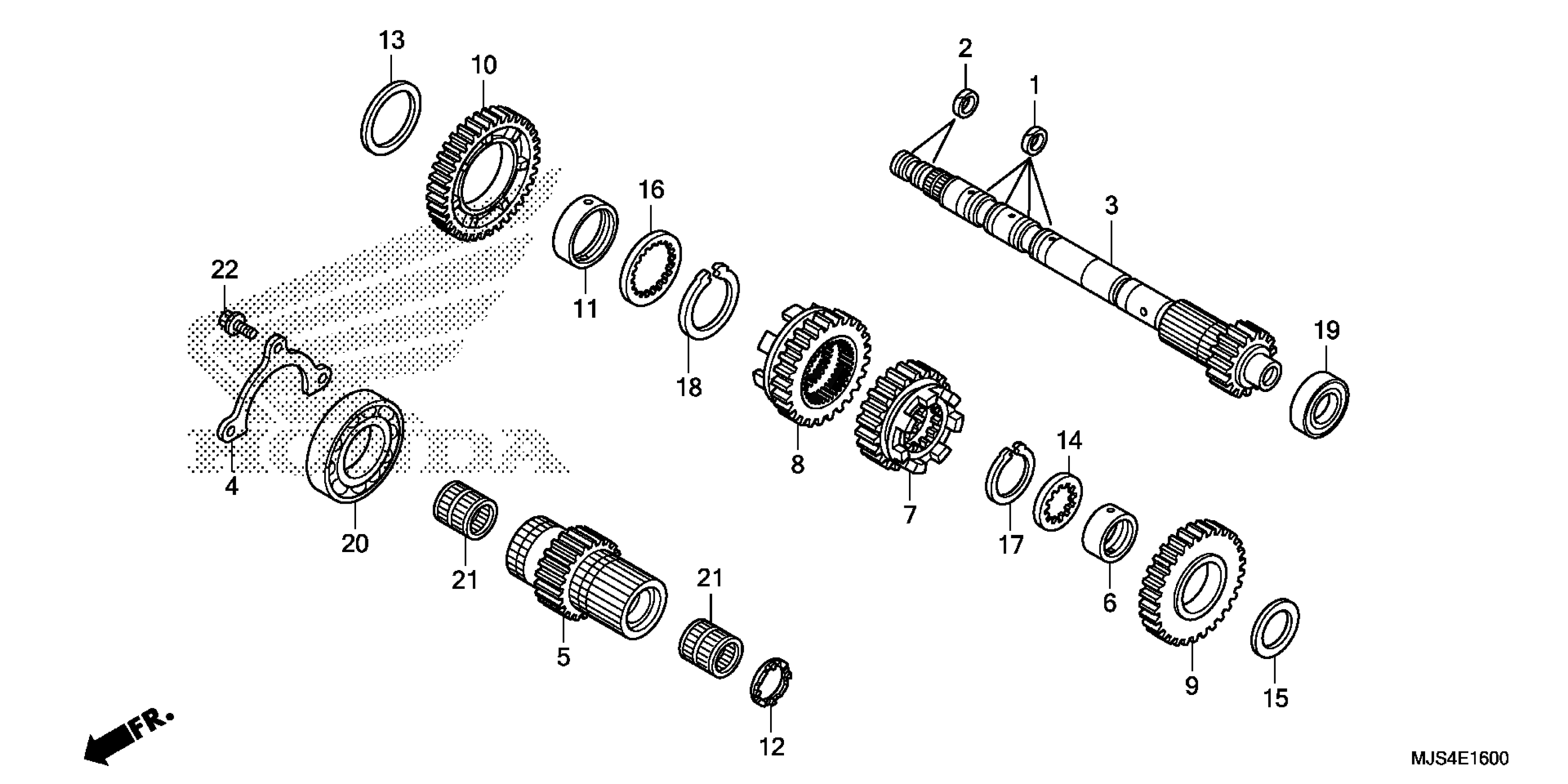

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 TRANSMISSION (MAINSHAFT) Diagram

RING, SEALING (26MM)

22814-PFL-003

$7.80

SEAL, RING (21.2MM)

22814-RGC-003

$10.40

MAINSHAFT (INNER)

23210-MJL-D50

$317.41

PLATE, MAINSHAFT BEARING SETTING

23212-MGS-D30

$3.20

MAINSHAFT (OUTER) (21T)

23231-MKA-D50

$230.64

COLLAR (30X11.2)

23442-MS2-610

$23.74

GEAR, MAINSHAFT THIRD (22T)

23451-MKA-D50

$85.43

GEAR, MAINSHAFT FOURTH (25T)

23471-MKA-D50

$80.00

GEAR, MAINSHAFT FIFTH (30T)

23491-MKA-D50

$78.10

GEAR, MAINSHAFT SIXTH (37T)

23511-MKA-A50

$74.52

COLLAR (40X43X10)

23512-MGS-D20

$12.62

WASHER, SPECIAL

90401-MJL-D50

$5.08

WASHER

90403-MK2-300

$5.31

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

WASHER, THRUST (30.5MM)

90458-MAT-E00

$1.84

WASHER, SPLINE (40MM)

90493-MGE-D00

$8.07

CIRCLIP (30MM)

90604-MM5-000

$4.48

CIRCLIP (40MM)

90605-MGE-D00

$6.93

BEARING, RADIAL BALL (6204U)

91006-MGS-D31

$17.33

BEARING, RADIAL BALL (6008)

91023-MGS-D21

$23.93

BEARING, NEEDLE (26X31X22) (NTN)

91104-PL9-008

$13.98

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
