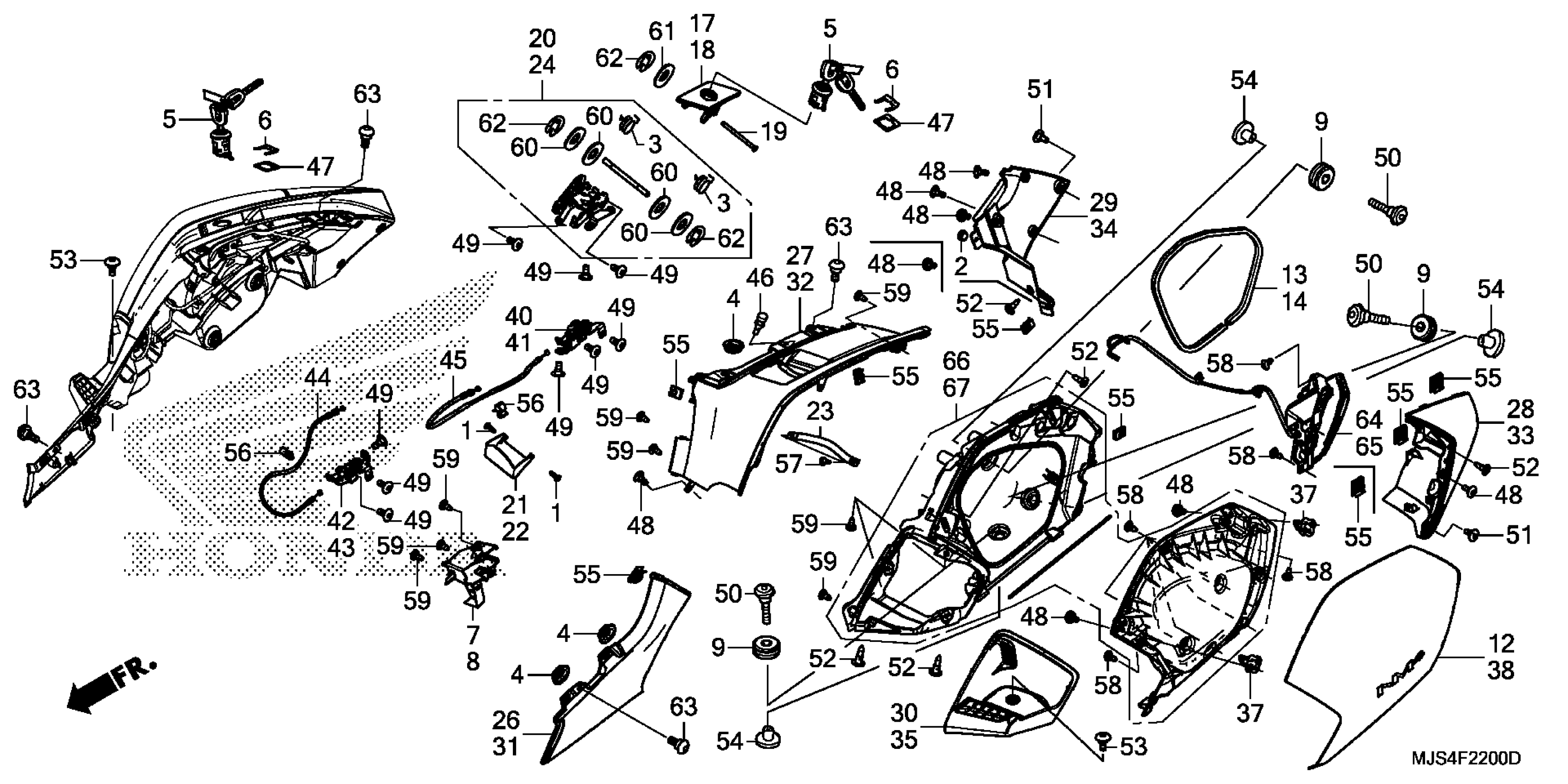

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 SADDLEBAG@REAR TURN SIGNAL Diagram

#

Description
Price

1

CLIP, CANOE

32172-GF9-621

$1.91

2

PLUG, HOLE

50317-254-000

$2.04

3

SPRING, PARKING BRAKE LEVER

53191-HN8-000

$2.35

4

GROMMET, SPEAKER PANEL

64266-MG9-770

$2.80

5

KEY,SADDLEBAGLOC This part replaces 77232-MJS-J92.

77232-MJS-J93

$119.99

6

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.42

7

COVER, R. FR. CATCH

77275-MJS-J90

$13.22

8

COVER, L. FR. CATCH

77385-MJS-J90

$13.22

9

RUBBER, SADDLEBAG MOUNTING

80201-MCA-000

$14.03

12

LID, R. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81221-MJS-J90ZC

$250.09

13

SEAL, R. SADDLEBAG

81225-MJS-J90

$14.80

14

SEAL, L. SADDLEBAG

81226-MJS-J90

$14.80

17

LEVER, R. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81252-MJS-J90ZD

$36.17

18

LEVER, L. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81262-MJS-J90ZD

$34.61

19

PIN A, LEVER

81266-MJS-J90

$4.70

20

LEVER SUB-ASSY., R. SADDLEBAG

81271-MJS-J90

$227.55

21

COVER, R. LEVER

81275-MJS-J90

$7.71

22

COVER, L. LEVER

81276-MJS-J90

$9.28

23

BAND, SADDLEBAG STOPPER

81280-MJS-J90

$14.80

24

LEVER SUB-ASSY., L. SADDLEBAG

81281-MJS-J90

$227.51

26

COVER, R. FR. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81310-MJS-J90ZB

$134.55

27

COVER, R. RR. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81320-MJS-J90ZC

$144.19

28

COVER, R. RR. TURN SIGNAL *NHA86M* (MAT BALLISTIC BLACK)

81330-MJS-J90ZC

$271.68

29

PANEL, R. RR. TURN SIGNAL

81335-MJS-J91

$18.77

30

COVER, R. PILLION STEP

81340-MJS-J90

$20.78

31

COVER, L. FR. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81350-MJS-J90ZB

$134.55

32

COVER, L. RR. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81360-MJS-J90ZB

$150.67

33

COVER, L. RR. TURN SIGNAL *NHA86M* (MAT BALLISTIC BLACK)

81370-MJS-J90ZB

$271.68

34

PANEL, L. RR. TURN SIGNAL

81375-MJS-J91

$19.25

35

COVER, L. PILLION STEP

81380-MJS-J90

$21.20

37

PLATE, LID LOCK

81420-MJS-J90

$10.67

38

LID, L. SADDLEBAG *NHA86M* (MAT BALLISTIC BLACK)

81421-MJS-J90ZC

$255.06

40

CATCH, R. RR. LID

81500-MJS-J90

$40.07

41

CATCH, L. RR. LID

81600-MJS-J90

$40.07

42

CATCH, R. FR. LID

81710-MJS-J90

$31.99

43

CATCH, L. FR. LID

81750-MJS-J90

$31.99

44

CABLE, FR. LID

82110-MJS-J90

$14.26

45

CABLE, RR. LID

82120-MJS-J90

$14.70

46

RUBBER, SHELTER LID

83132-MN5-000

$2.17

47

WASHER, LOCK (WAVE)

88537-MJE-D00

$3.58

48

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$2.94

49

SCREW, PAN (6X14)

90106-KBV-000

$3.64

50

SCREW, SPECIAL (6MM)

90109-MCA-000

$3.41

51

SCREW, SPECIAL (5X14)

90113-MGP-D00

$1.86

52

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

53

SCREW, PAN (6X13)

90124-MY6-670

$2.38

54

COLLAR, SADDLEBAG MOUNTING

90501-MCA-000

$4.70

55

NUT, CLIP (5MM)

90677-KAN-961

$3.79

56

CLIP, CABLE

90682-MGS-D41

$3.04

57

SCREW, TAPPING (4X12)

93903-24380

Unavailable

58

SCREW, TAPPING (5X10)

93903-25180

$0.83

59

SCREW, TAPPING (5X12)

93903-25220

$0.83

60

WASHER, PLAIN (4MM)

94101-04700

$0.86

61

WASHER, PLAIN (5MM)

94101-05700

Unavailable

62

E-RING (3MM)

94540-03017

$0.68

63

SCREW, SPECIAL (5X14)

90102-MKA-D80

$2.64

64

TURN SIGNAL ASSY., R. RR. (COO)

33600-MJS-305

$129.74

65

TURN SIGNAL ASSY., L. RR. (COO)

33650-MJS-305

$129.74

66

BASE ASSY., R. SADDLEBAG

81240-MJS-J90

$191.36

67

BASE ASSY., L. SADDLEBAG

81440-MJS-J90

$191.36
