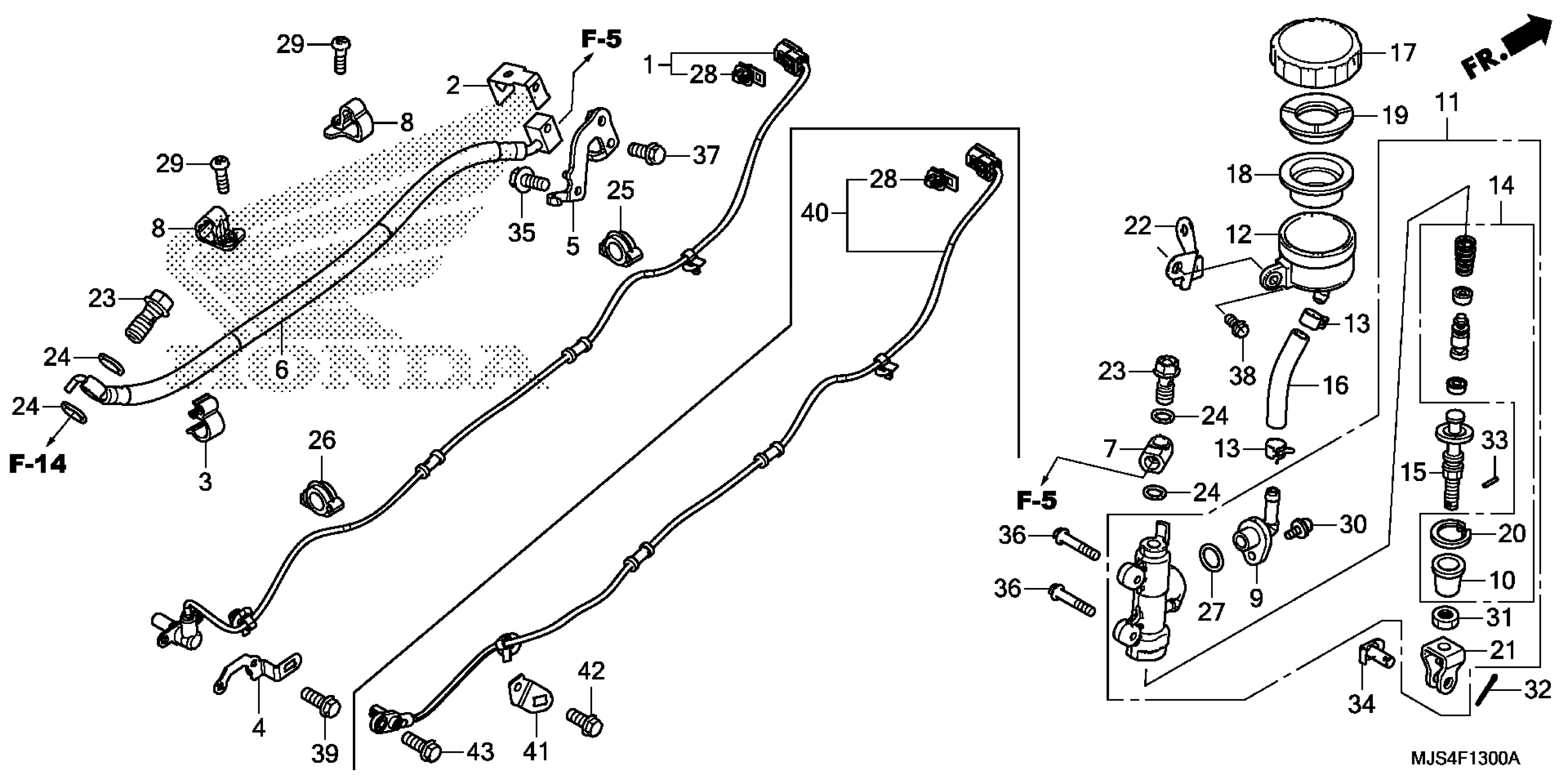

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

2

STAY, SENSOR WIRE

38515-MJS-J70

$4.13

5

STAY, RR. BRAKE HOSE

43160-MJS-J70

$13.10

6

HOSE C, RR. BRAKE

43312-MJS-J71

$56.97

7

JOINT, BRAKE PIPE

43323-MFL-D01

$27.99

8

GUIDE, RR. BRAKE HOSE

43468-MJL-D70

$6.75

9

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.15

10

BOOT

43504-MB2-006

$9.24

11

MASTER CYLINDER SUB-ASSY., RR.

43510-MJS-J71

$178.78

11

MASTER CYLINDER SUB-ASSY., RR. (COO)

43510-MJS-305

$178.78

12

CUP, OIL (NISSIN)

43511-MR7-016

$29.99

13

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

14

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$41.66

15

ROD, PUSH

43530-MV9-006

$32.63

16

HOSE, MASTER CYLINDER OIL (NISSIN)

45512-MW0-006

$6.72

17

CAP, OIL CUP

45513-MEL-D21

$16.92

18

DIAPHRAGM

45520-300-000

$8.34

19

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

20

CIRCLIP

46182-MEL-D21

$1.79

21

JOINT, BRAKE ROD

46504-MAH-671

$13.21

22

STAY, OIL CUP

46505-MJS-J70

$5.38

23

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

24

WASHER, OIL BOLT

90545-300-000

$5.79

25

CLIP, CABLE (14MM)

90690-MCA-003

$1.63

26

CLIP, CABLE (13MM)

90690-MJF-C11

$2.16

27

O-RING (14.8X2.4)

91212-422-006

$2.37

28

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

29

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$0.90

30

SCREW-WASHER (4X12)

93893-04012-07

$1.32

30

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

31

NUT, HEX. (8MM)

94002-08000-0S

$1.31

32

PIN, COTTER (2.0X15)

94201-20150

$1.04

33

PIN, SPRING (2X10)

94305-20102

$0.81

34

PIN D, JOINT

95015-54000

$4.05

35

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

36

BOLT, FLANGE (6X35)

95801-06035-00

$0.99

37

BOLT, FLANGE (6X14)

96001-06014-00

Unavailable

38

BOLT, FLANGE (6X14)

90013-GHB-620

$2.15

40

SENSOR, RR. WHEEL SPEED

38510-MJS-J31

$170.50

41

STAY, SENSOR WIRE

38515-MKA-D80

$3.19

42

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

43

BOLT, FLANGE (6X16)

90116-MKA-D80

$1.99
