Partiron

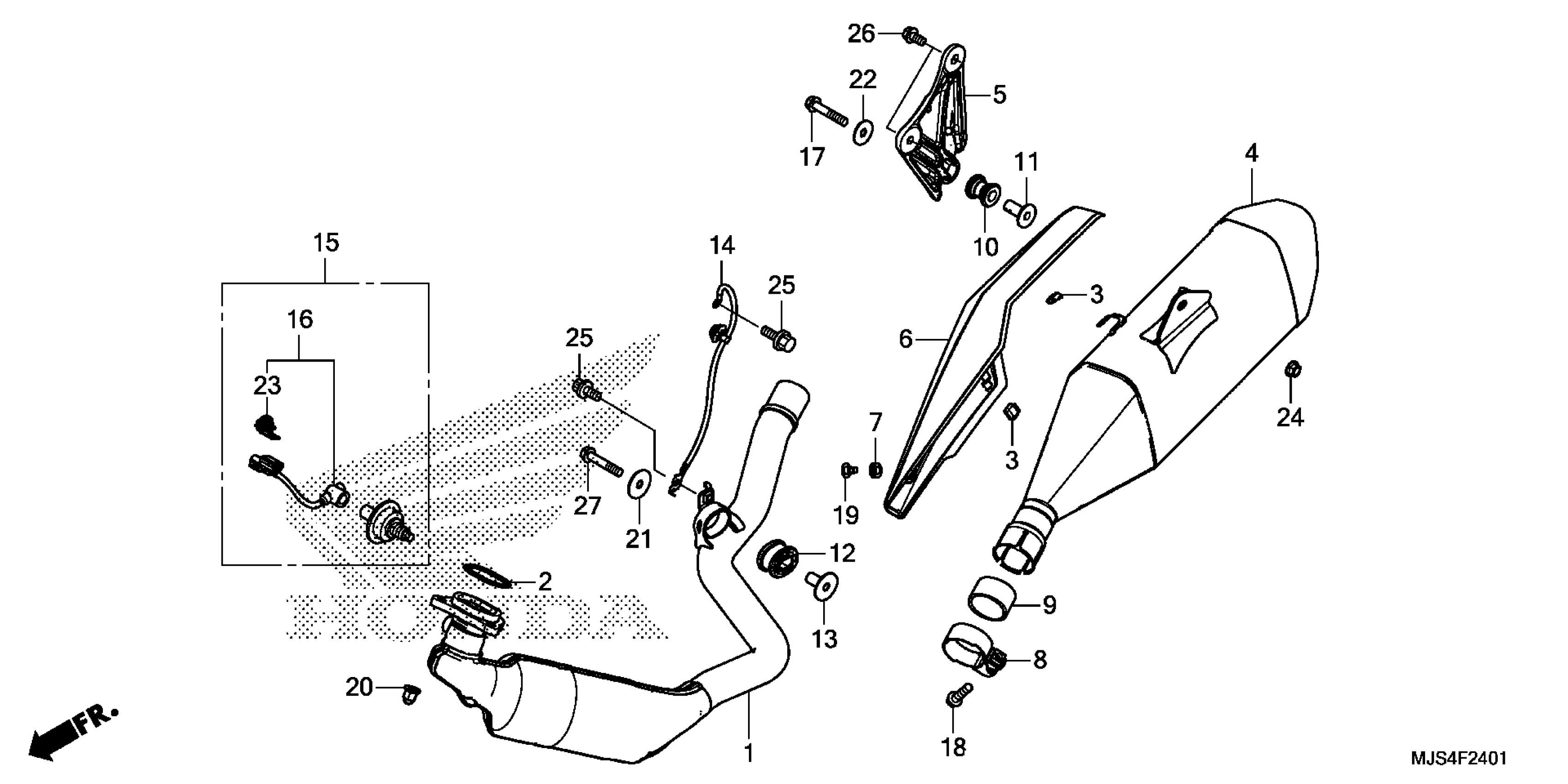

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 MUFFLER (2) Diagram

#

Description
Price

1

PIPE, EX.

18150-MJS-A41

$856.79

2

GASKET, EX. PIPE

18291-MGS-D31

$10.46

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.90

4

MUFFLER

18310-MJS-A41

$449.50

5

BRACKET, MUFFLER

18315-MJS-J30

$77.21

6

COVER, MUFFLER

18342-MKA-D81

$66.72

7

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

8

BAND, R. FR. MUFFLER (L. RR.) (L.)

18373-413-000

$35.97

9

GASKET, MUFFLER

18392-MK4-000

$12.54

10

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$6.72

11

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.56

12

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$17.07

13

COLLAR, EX. PIPE MOUNTING

18423-MGS-D30

$7.10

14

SUB-HARNESS, OXYGEN SENSOR GROUND

32200-MJS-J70

$7.69

15

SENSOR, OXYGEN

36532-MJS-J31

$211.13

16

WIRE, OXYGEN SENSOR

36533-MJS-J31

$52.38

17

BOLT, FLANGE (8X45)

90101-MJS-J70

$3.18

18

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

19

SCREW, PAN (6X12)

90113-GFP-B00

$3.41

20

NUT, CAP (8MM)

90304-ME1-670

$5.68

21

WASHER (8MM)

90501-819-000

$1.38

22

WASHER (8.3MM)

90501-KK6-000

$2.29

23

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

24

NUT, FLANGE (8MM)

94050-08080

$0.87

25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

26

BOLT, FLANGE (8X16)

95701-08016-08

$1.62

27

BOLT, FLANGE (8X45)

96300-08045-04

$1.40
