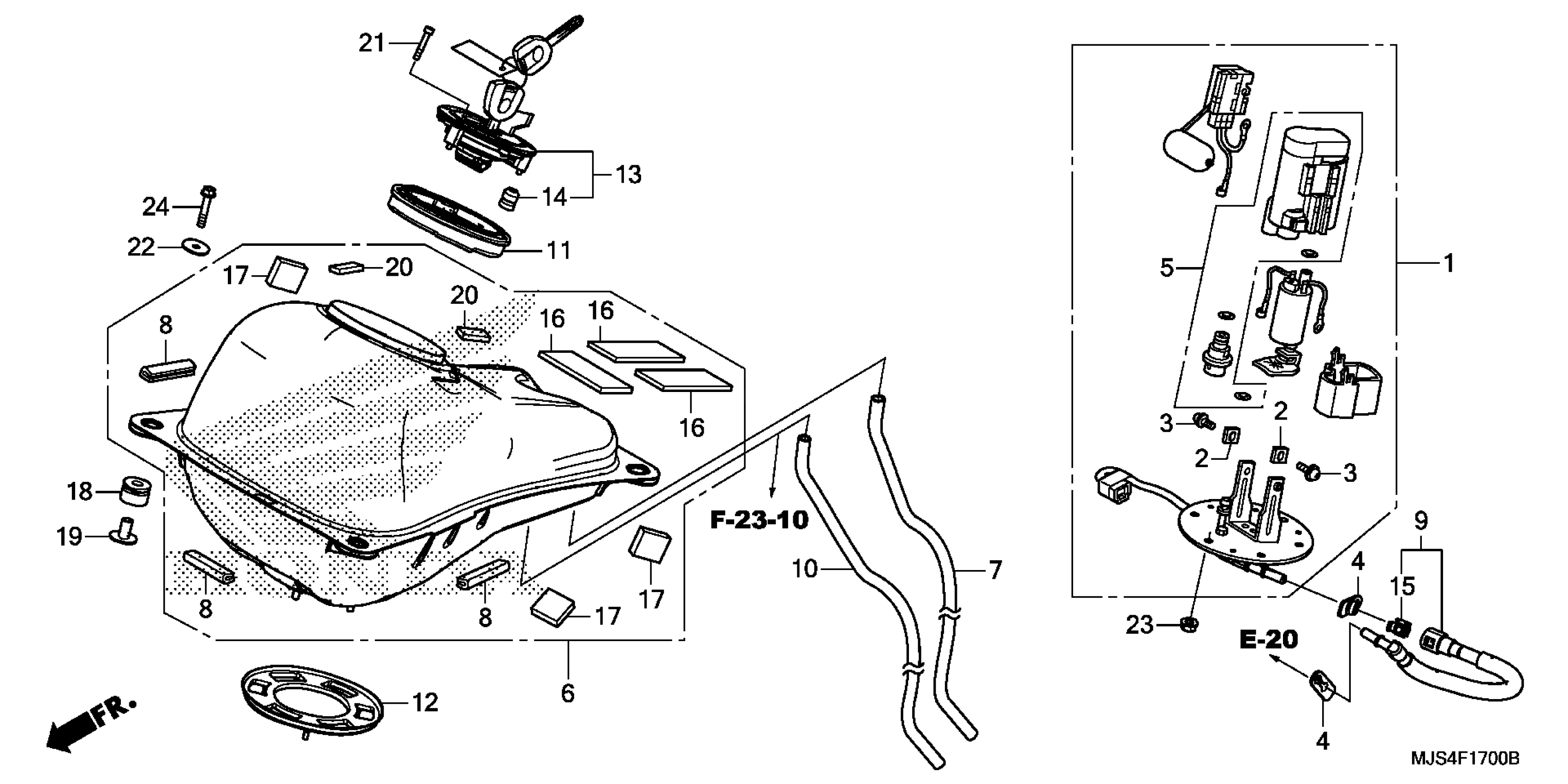

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 FUEL TANK@FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY., FUEL This part replaces 16700-MJS-J71.

16700-MJS-J73

$633.28

1

PUMP ASSY., FUEL This part replaces 16700-MJS-J72.

16700-MJS-J73

$633.28

2

STOPPER

16711-MGS-D31

$4.41

3

SCREW (4X6.6)

16712-MGS-D31

$1.71

4

DAMPER, CONNECTOR

16719-MEW-920

$2.80

5

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$37.98

6

TANK ASSY., FUEL

17500-MJS-J70

$816.84

7

TUBE A, DRAIN

17508-MJS-J70

$17.83

8

TRIM, FUEL TANK

17523-MEA-670

$2.80

9

HOSE, FUEL FEED

17526-MJS-J71

$108.96

11

SEAL, FUEL TANK

17543-MJS-J70

$10.43

12

GASKET, BASE

17574-KZZ-910

$30.16

13

CAP COMP This part replaces 17620-MJS-J31.

17620-MJS-J33

$222.12

13

CAP, FUEL FILLER

17620-MGP-D64

$249.99

14

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$4.78

15

RETAINER

17711-MGE-003

$5.90

16

CUSHION, EQUALIZER

50195-GAG-000

$3.10

17

RUBBER, SEAT RAIL

50283-MR7-300

$2.80

18

RUBBER, SEAT MOUNTING

77206-464-000

$5.59

19

COLLAR, SEAT MOUNTING

77207-464-000

$7.10

20

RUBBER, RR. FRAME

80129-MEG-000

$1.30

21

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.03

22

WASHER (6.5X25X1.5)

90404-680-000

$3.78

23

NUT, FLANGE (6MM)

94050-06080

$0.59

24

BOLT, FLANGE (6X32)

95701-06032-08

$1.71

25

FILTER ASSY., FUEL This part replaces 16730-MKA-D81.

16730-MKT-D01

$37.98

25

FILTER ASSY., FUEL This part replaces 16730-MKA-D82.

16730-MKT-D01

$37.98
