Description

Price

1

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MJS-305

$774.78

2

SPRING, FR. FORK (SHOWA)

51401-MJS-J71

$89.00

3

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$23.53

4

SEAT, SPRING

51405-KA4-711

$5.95

5

PIPE, FR. FORK (SHOWA)

51410-MJS-J71

$364.72

6

RING, BACK-UP

51412-KA4-711

$8.88

7

BUSH, GUIDE

51414-MFN-D01

$6.75

8

BUSH, SLIDER

51415-MFN-D01

$28.09

9

SPRING, FR. REBOUND

51416-MFR-671

$7.66

10

CASE, R. FR. (LOWER) (SHOWA)

51420-MJS-J71

$399.75

11

PIECE, OIL LOCK

51432-MV4-003

$13.74

12

RING, PISTON

51437-MJS-J71

$4.85

13

PIPE, SEAT

51440-MJS-J71

$40.69

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

15

BOLT, FR. FORK

51454-MAY-003

$50.04

16

SEAL SET, FR. FORK

51490-MFL-003

$18.22

17

FORK ASSY., L. FR. (COO) (SHOWA)

51500-MJS-305

$774.78

18

CASE, L. FR. (LOWER) (SHOWA)

51520-MJS-J71

$399.75

19

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

20

BOLT (8X45)

90134-MEL-000

$2.80

21

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

22

DUST SEAL

91254-MEJ-013

$11.51

23

O-RING (35.2X2.4)

91356-KA4-711

$3.59

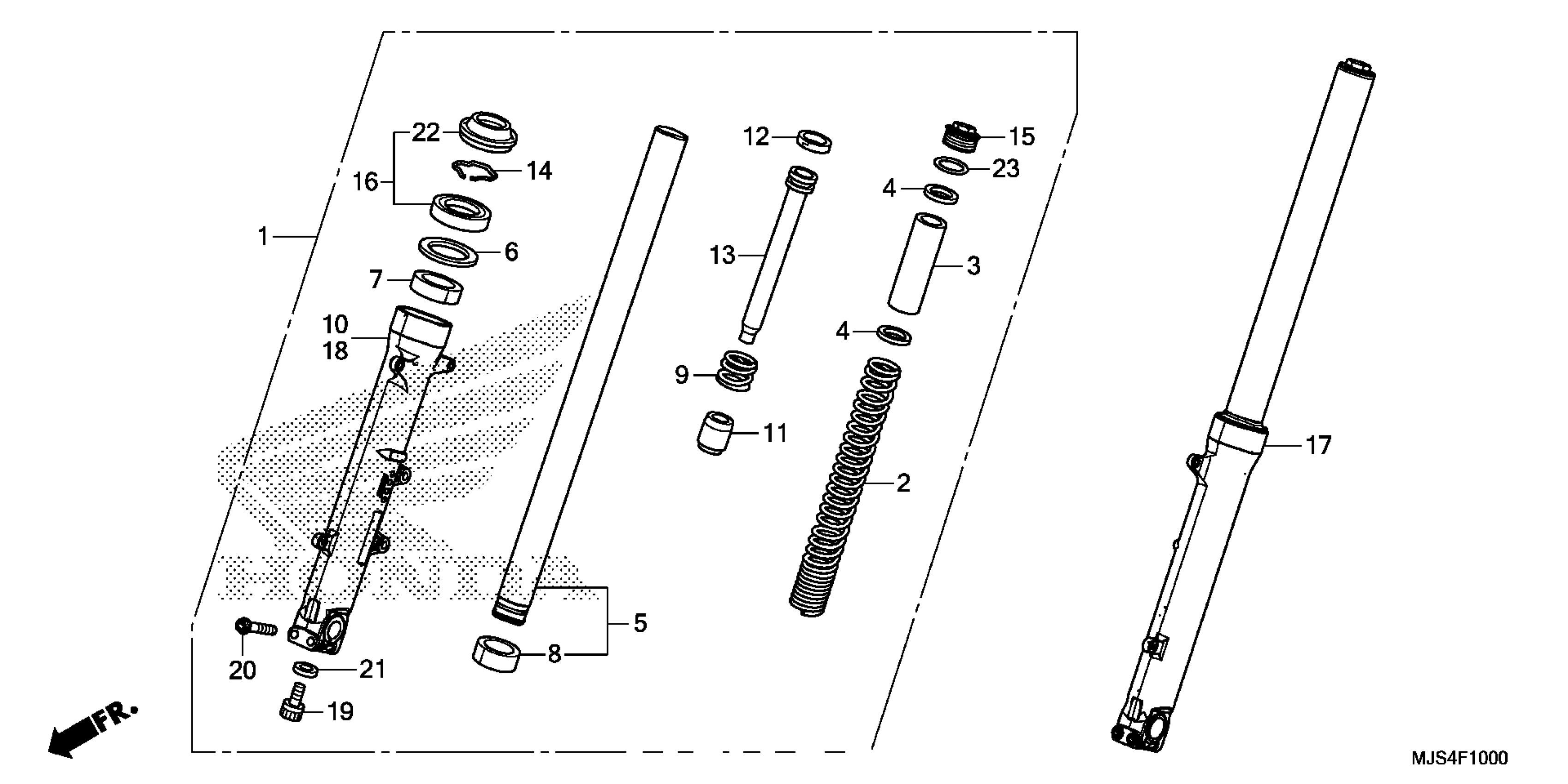

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 FRONT FORK Diagram
