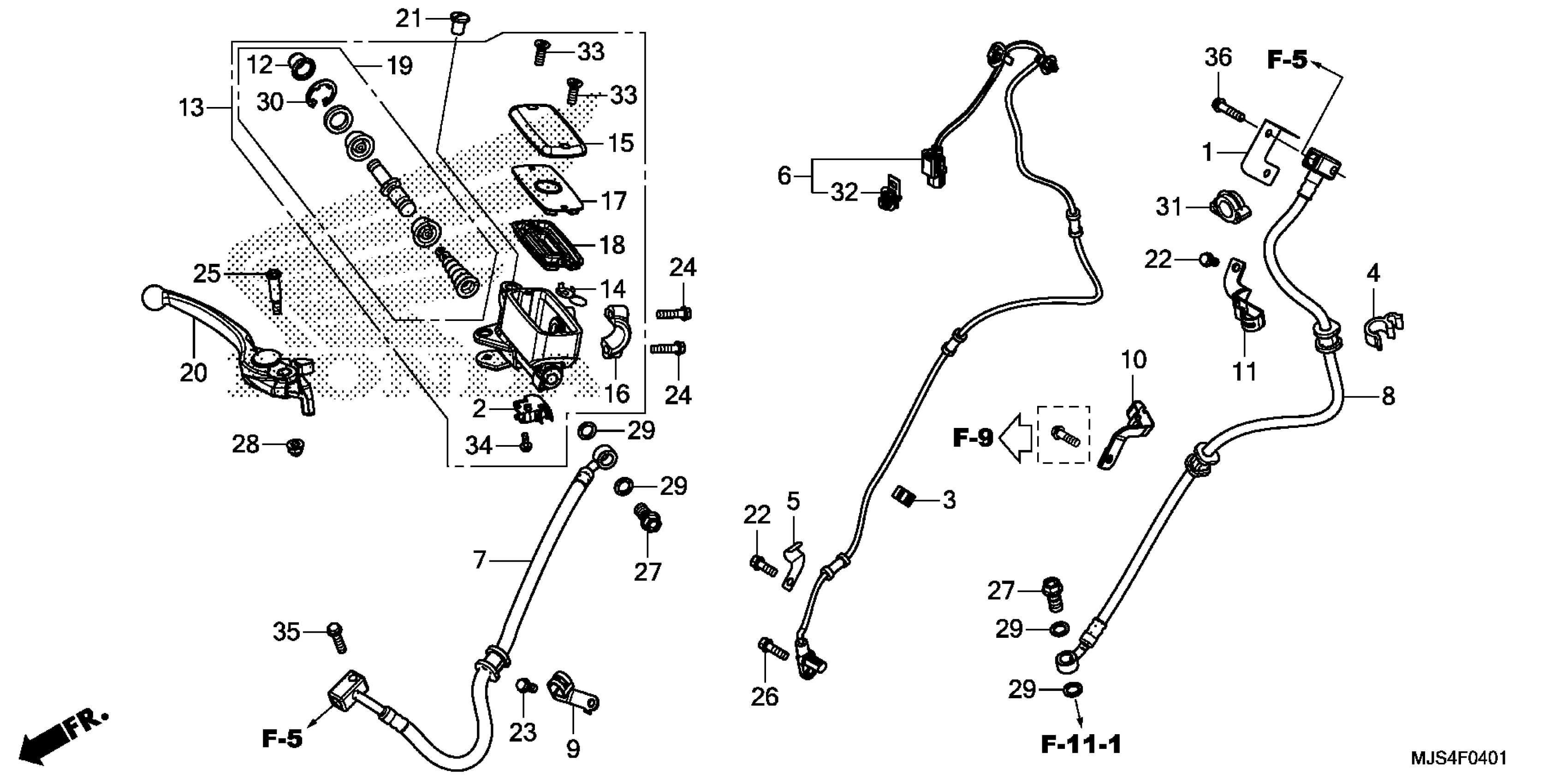

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

STAY, HARNESS CLIP

32157-MJL-D70

$4.50

2

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

3

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.87

4

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

5

CLAMP, SENSOR WIRE

38517-MKA-D80

$0.97

6

SENSOR, FR. WHEEL SPEED

38520-MJS-J31

$170.50

7

HOSE A, FR. BRAKE

45125-MJS-J71

$50.26

8

HOSE D, FR. BRAKE

45128-MJS-J31

$56.12

9

CLAMP A, FR. BRAKE

45155-MJS-J70

$6.24

10

CLAMP B, FR. BRAKE

45156-MJF-C10

$11.01

11

CLAMP B, FR. BRAKE HOSE

45156-MJS-J70

$10.40

12

BOOT

45504-410-003

$11.17

13

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGS-D31

$258.54

14

PROTECTOR

45512-MA6-006

$4.09

15

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$20.57

16

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

17

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

18

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

19

MASTER CYLINDER SET

45530-KVY-911

$23.84

20

LEVER ASSY., R. HANDLE

53170-MEJ-016

$40.28

20

LEVER ASSY., R. HANDLE This part replaces 53170-MEJ-305.

53170-MEJ-016

$40.28

21

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.29

21

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.29

22

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

23

BOLT, FLANGE (6X14)

90013-GHB-620

$2.15

24

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

25

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

26

BOLT, FLANGE (6X16)

90116-MKA-D80

$1.99

27

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

28

NUT, CAP (6MM)

90201-415-000

Unavailable

29

WASHER, OIL BOLT

90545-300-000

$5.79

30

CIRCLIP

90651-MA5-671

$2.38

31

CLIP, CABLE (12MM)

90690-MGS-D81

$2.06

32

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

33

SCREW, FLAT (4X12)

93600-04012-0G

$0.90

33

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.90

34

SCREW-WASHER (4X12)

93893-04012-07

$1.32

34

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

35

BOLT, FLANGE (6X25)

96001-06025-00

$2.63

36

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.24
