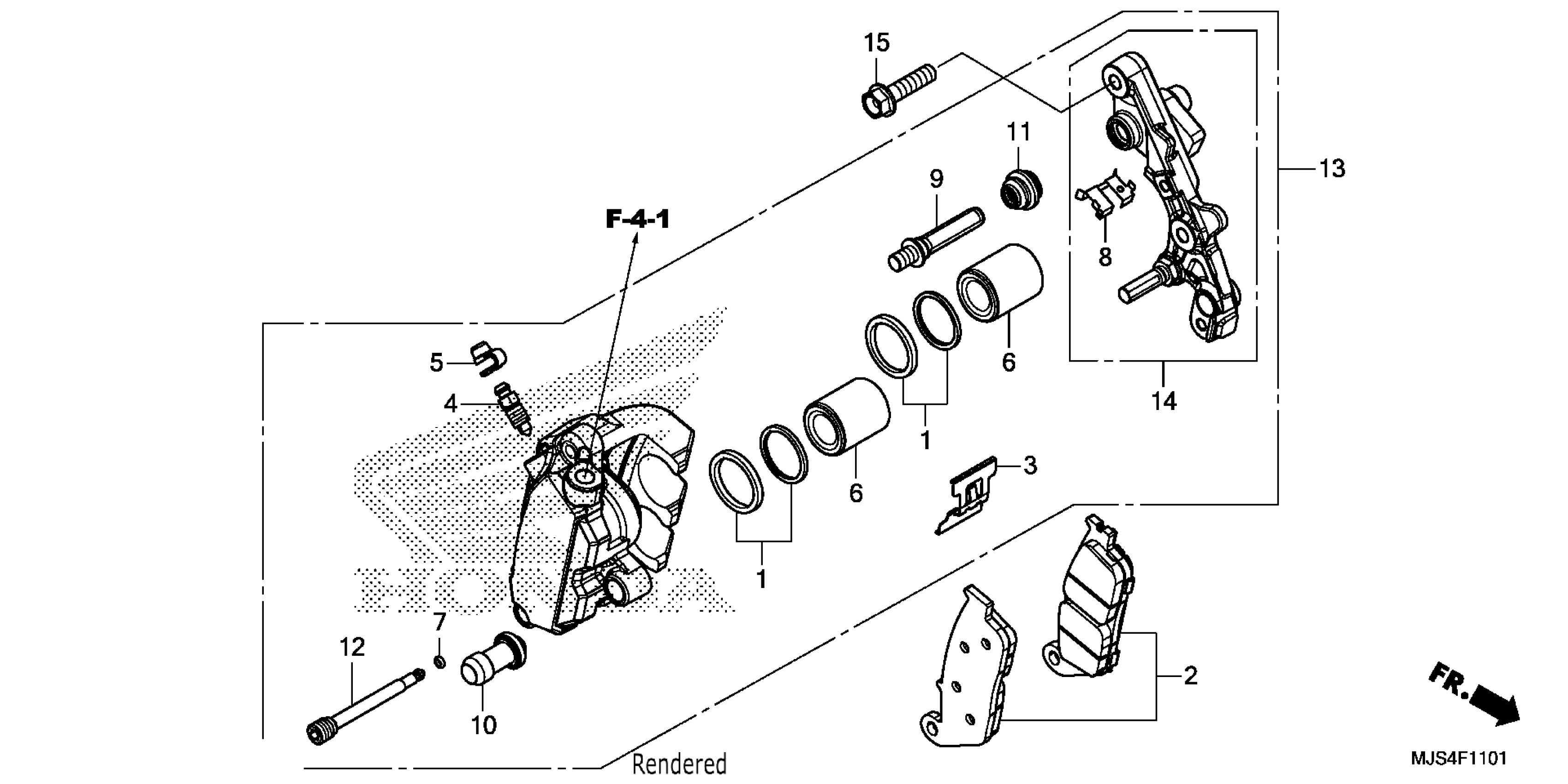

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 FRONT BRAKE CALIPER (2) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, FR.

06455-MGS-D32

$46.05

SPRING, PAD

43108-MCT-006

$4.69

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (NISSIN)

45107-ML4-006

$34.77

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-MS9-611

$5.21

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PIN, HANGER

45215-MAJ-G41

$6.15

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MKA-D81

$291.25

BRACKET SUB-ASSY., R. FR. (NISSIN)

45290-MKA-D81

$82.35

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54
