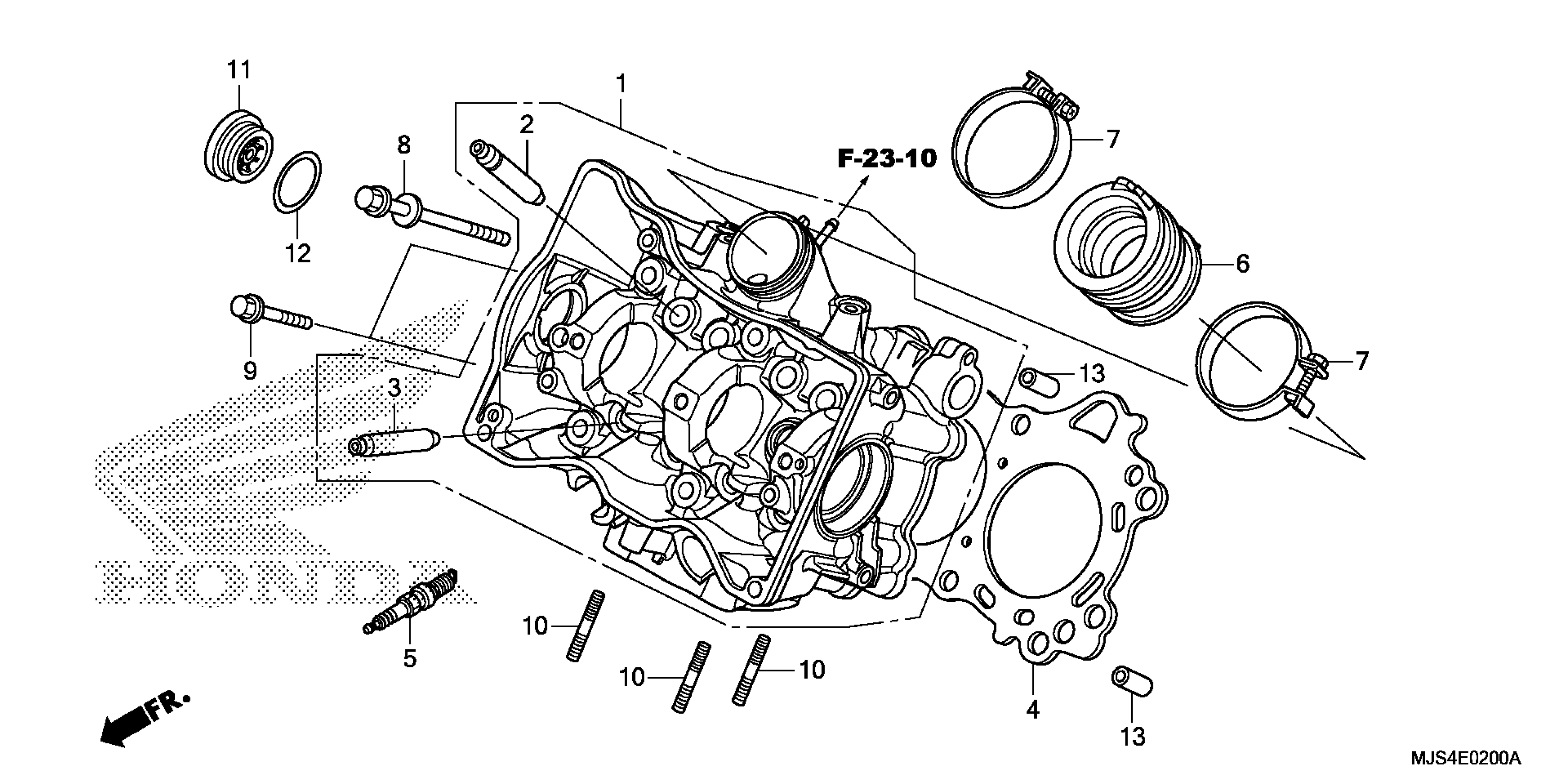

Honda NC700JDAC (18) MOTORCYCLE, JPN, VIN# JH2RC811-JK300001 CYLINDER HEAD Diagram

#

Description

Price

1

CYLINDER HEAD

12200-MGS-T20

$875.44

2

GUIDE, VALVE (OVER SIZE)

12204-MGS-305

$26.00

3

GUIDE, EX. VALVE (OVER SIZE)

12205-MGS-305

$24.49

4

GASKET, CYLINDER HEAD

12251-MGS-D31

$50.76

5

SPARK PLUG (IFR6G-11K) (DENSO)

12290-RSH-003

$15.80

6

INSULATOR, THROTTLE BODY

16211-MGS-D30

$18.44

7

BAND, INSULATOR

16218-MGS-D30

$5.21

8

BOLT-WASHER (9X130)

90007-MGS-D31

$8.60

9

BOLT, FLANGE (6X35) This part replaces 90010-GHB-700.

96001-06035-00

Unavailable

9

BOLT, FLANGE (6X35) (Honda Code 2112209)

96001-06035-00

Unavailable

10

BOLT, STUD (8X26)

90023-MGS-D30

$5.57

11

CAP (36MM)

90087-MGS-D30

$13.87

12

O-RING (35X3) (ARAI) SEAL, VALVE STEM (NOK)

91303-KK3-830

$2.80

13

PIN A, DOWEL (12X20)

94301-12200

$2.80
