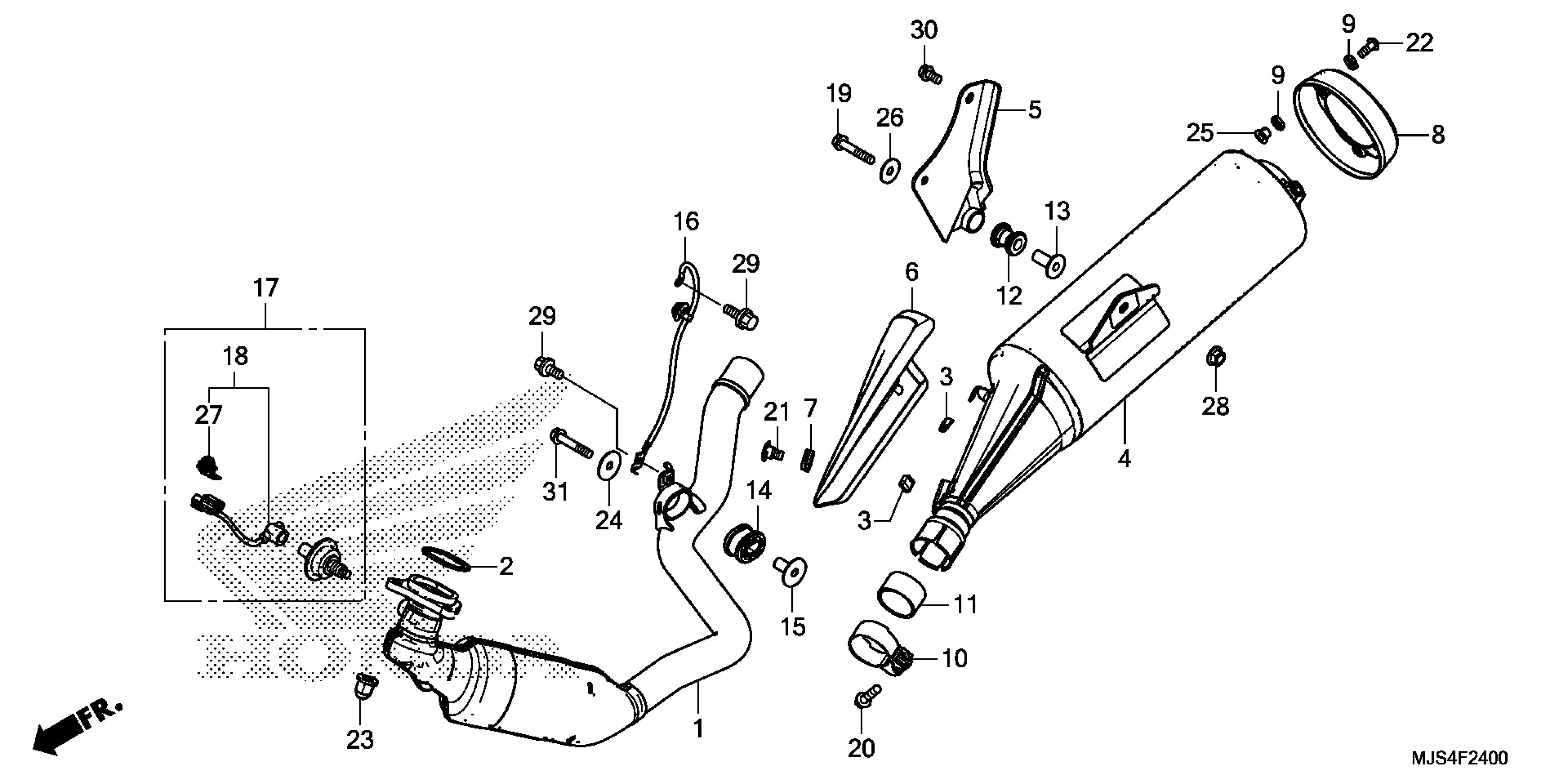

Honda NC700JDAC (16) MOTORCYCLE, JPN, VIN# JH2RC811-GK100001 TO JH2RC811-GK199999 MUFFLER (1) Diagram

#

Description
Price

1

PIPE, EX.

18150-MJS-A92

$923.13

2

GASKET, EX. PIPE

18291-MGS-D31

$10.46

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.90

4

MUFFLER (COO)

18310-MJS-305

$451.79

5

BRACKET, MUFFLER

18315-MJS-J70

$49.91

6

COVER, MUFFLER

18342-MGS-D71

$54.25

7

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

8

COVER, MUFFLER END

18350-MGS-D70

$50.37

9

WASHER, RUBBER (8.5X13X2.5)

18365-MEE-D00

$1.78

10

BAND, R. FR. MUFFLER (L. RR.) (L.)

18373-413-000

$35.97

11

GASKET, MUFFLER

18392-MK4-000

$12.54

12

RUBBER, MUFFLER MOUNTING

18421-MA6-000

$6.72

13

COLLAR, MUFFLER MOUNTING

18422-MA6-000

$7.56

14

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$17.07

15

COLLAR, EX. PIPE MOUNTING

18423-MGS-D30

$7.10

16

SUB-HARNESS, OXYGEN SENSOR GROUND

32200-MJS-J70

$7.69

17

SENSOR, OXYGEN

36532-MJS-J71

$227.54

18

WIRE, OXYGEN SENSOR

36533-MJS-J70

$57.71

19

BOLT, FLANGE (8X45)

90101-MJS-J70

$3.18

20

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

21

SCREW, PAN (6X12)

90113-GFP-B00

$3.41

22

BOLT, SPECIAL (6X15) (SUS)

90132-MEE-D00

$1.03

23

NUT, CAP (8MM)

90304-ME1-670

$5.68

24

WASHER (8MM)

90501-819-000

$1.38

25

COLLAR (8.5X7)

90501-GN5-830

$1.97

26

WASHER (8.3MM)

90501-KK6-000

$2.29

27

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

28

NUT, FLANGE (8MM)

94050-08080

$0.87

29

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$2.03

30

BOLT, FLANGE (8X16)

95701-08016-08

$1.62

31

BOLT, FLANGE (8X45)

96300-08045-04

$1.40
