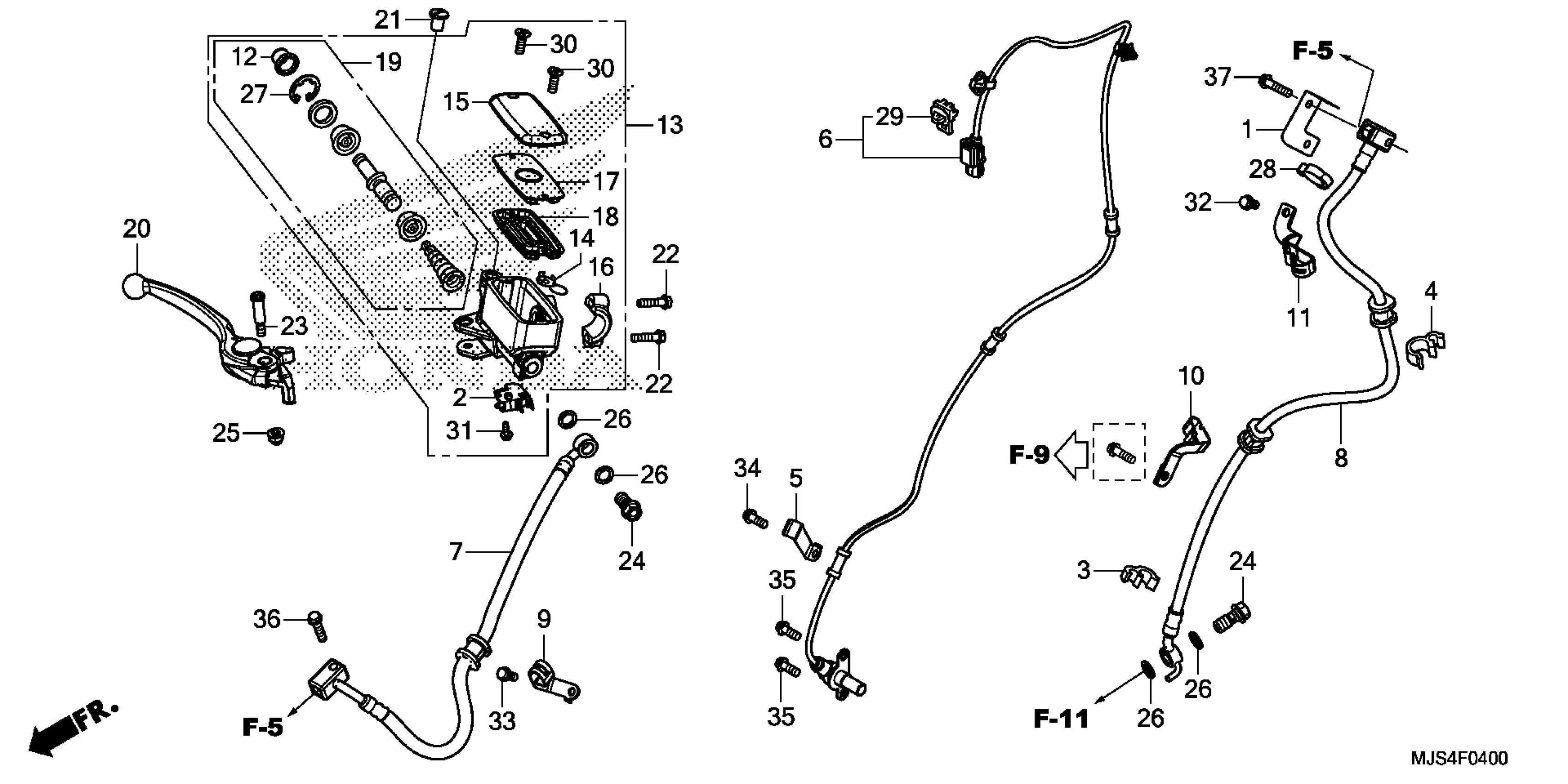

Honda NC700JDAC (16) MOTORCYCLE, JPN, VIN# JH2RC811-GK100001 TO JH2RC811-GK199999 FRONT BRAKE MASTER CYLINDER (1) Diagram

#

Description
Price

1

STAY, HARNESS CLIP

32157-MJL-D70

$4.87

2

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

3

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$3.10

4

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.72

5

CLAMP, SENSOR WIRE

38517-MGS-D80

$5.16

6

SENSOR, FR. WHEEL SPEED

38520-MJS-J71

$198.79

7

HOSE A, FR. BRAKE

45125-MJS-J71

$54.41

8

HOSE D, FR. BRAKE

45128-MJS-J71

$65.49

9

CLAMP A, FR. BRAKE

45155-MJS-J70

$6.75

10

CLAMP B, FR. BRAKE

45156-MJF-C10

$11.92

11

CLAMP B, FR. BRAKE HOSE

45156-MJS-J70

$11.25

12

BOOT

45504-410-003

$12.16

13

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGS-D31

$279.84

14

PROTECTOR

45512-MA6-006

$4.28

15

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

16

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

17

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

18

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

19

MASTER CYLINDER SET

45530-KVY-911

$26.57

20

LEVER ASSY., R. HANDLE

53170-MEJ-016

$45.19

20

LEVER ASSY., R. HANDLE This part replaces 53170-MEJ-305.

53170-MEJ-016

$45.19

21

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

21

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

22

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

23

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

24

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

25

NUT, CAP (6MM)

90201-415-000

$2.05

26

WASHER, OIL BOLT

90545-300-000

$3.99

27

CIRCLIP

90651-MA5-671

$2.66

28

CLIP, CABLE (12MM)

90690-MGS-D81

$2.23

29

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

30

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

30

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

31

SCREW-WASHER (4X12)

93893-04012-07

$1.49

31

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

32

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

33

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

34

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

35

BOLT, FLANGE (6X16)

96001-06016-07

$1.49

36

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

37

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49
