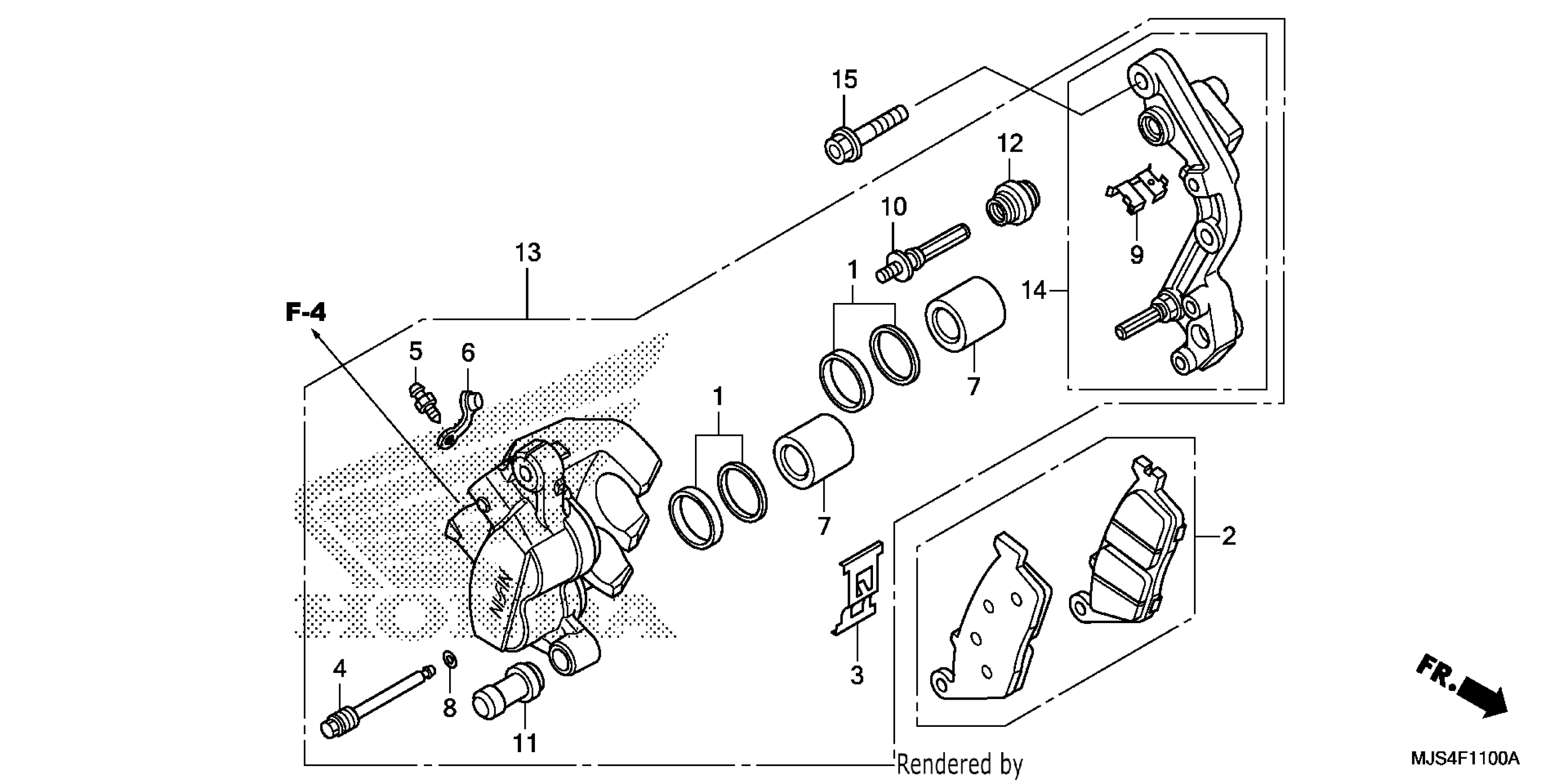

Honda NC700JDAC (16) MOTORCYCLE, JPN, VIN# JH2RC811-GK100001 TO JH2RC811-GK199999 FRONT BRAKE CALIPER (1) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, FR. This part replaces 06455-MGS-D31.

06455-MGS-D32

$46.05

PAD SET, FR.

06455-MGS-D32

$46.05

SPRING, PAD

43108-MCT-006

$4.69

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (NISSIN)

45107-ML4-006

$34.77

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-MS9-611

$5.21

BOLT A, PIN (NISSIN)

45131-ML7-921

$14.17

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY., R. FR.

45250-MJS-J71

$333.34

BRACKET SUB-ASSY., R. FR.

45290-MJS-J71

$102.29

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.54
