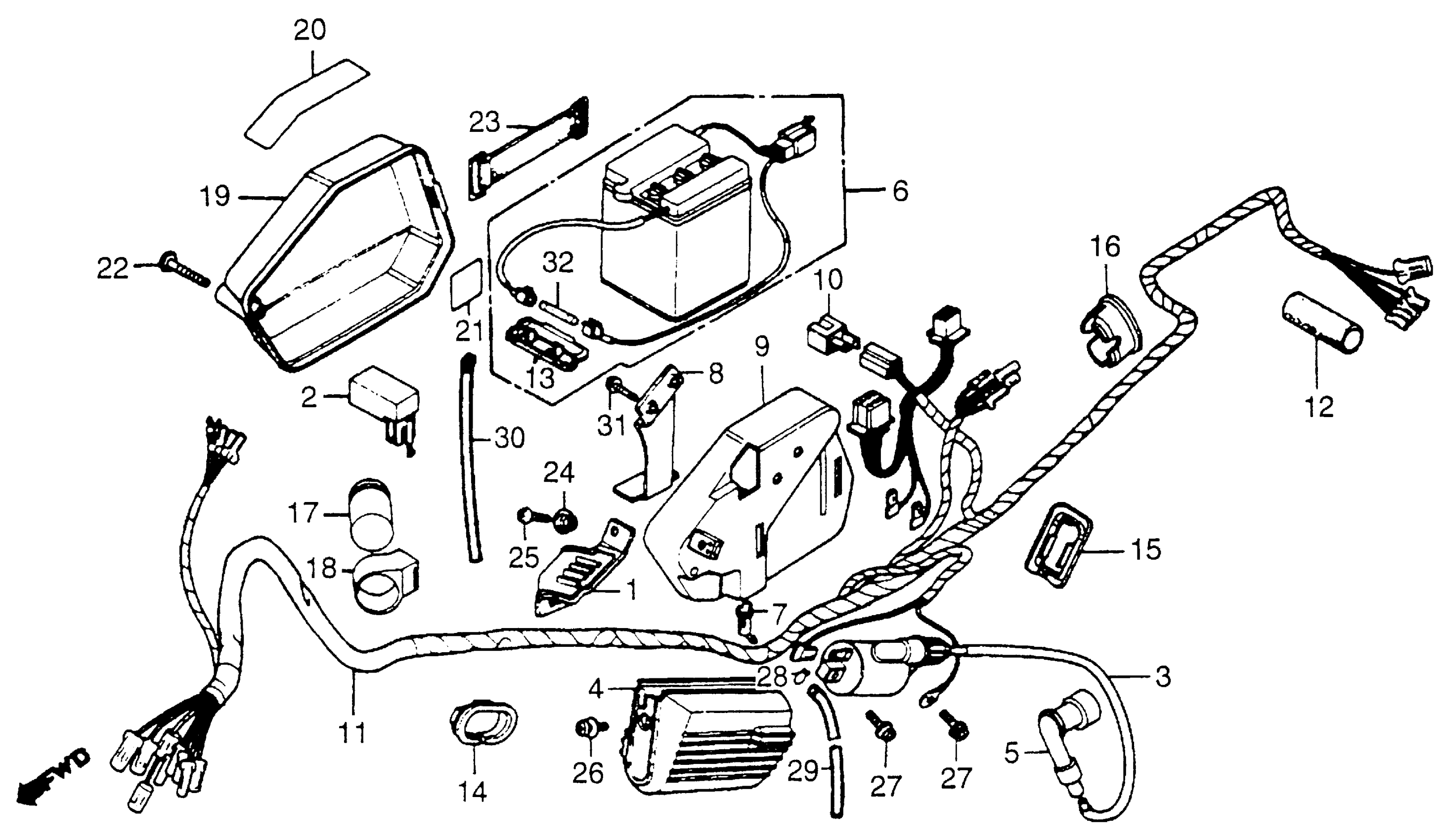

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 WIRE HARNESS + BATTERY + IGNITION COIL + RIGHT SIDE COVER Diagram

#

Description
Price

1

COVER, CARBURETOR (NOT AVAILABLE)

17230-GA6-670

Unavailable

2

MODULE, IGNITION CONTROL (CDI)

30410-187-008

Unavailable

3

COIL ASSY., IGNITION This part replaces 30500-GA6-670.

30500-GA7-405

Unavailable

3

COIL ASSY., IGNITION

30500-GA7-405

Unavailable

4

COVER, IGNITION COIL (NOT AVAILABLE)

30520-GA6-000

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR

30700-KE6-702

Unavailable

5

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-147-661.

30700-KE6-702

Unavailable

6

BATTERY (6N4-2A-6) This part replaces 31500-126-771.

31500-126-771AH

Unavailable

6

BATTERY (6N4-2A-6) This part replaces 31500-126-777.

31500-126-771AH

Unavailable

6

BATTERY (6N4-2A-6) This part replaces 31500-147-971.

31500-126-771AH

Unavailable

7

JOINT, BATTERY BREATHER (NOT AVAILABLE)

31505-GA6-000

Unavailable

8

TRAY, BATTERY (NOT AVAILABLE)

31510-GA6-670

Unavailable

9

PLATE, ELECTRIC SETTING *NH1* (BLACK) (NOT AVAILABLE)

31515-GA6-000ZA

Unavailable

10

RECTIFIER

31700-166-008

$28.14

11

WIRE HARNESS (NOT AVAILABLE)

32100-GA6-670

Unavailable

12

COVER, CONNECTOR (NOT AVAILABLE)

32108-187-000

Unavailable

13

CASE, FUSE CONNECTOR

32111-230-000

$4.28

14

GROMMET, L. CABLE (NOT AVAILABLE)

32984-GA6-000

Unavailable

15

GROMMET A, MAIN PIPE (NOT AVAILABLE)

32986-GA6-000

Unavailable

16

GROMMET B, MAIN PIPE (NOT AVAILABLE)

32987-GA6-670

Unavailable

17

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-004.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

17

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

18

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-GA6-670

Unavailable

19

COVER, R. SIDE *NH1* (BLACK) (NOT AVAILABLE)

64350-GA6-670ZA

Unavailable

20

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

21

LABEL, BATTERY CAUTION (NOT AVAILABLE)

87506-GA6-670

Unavailable

22

BOLT, SIDE COVER SETTING (NOT AVAILABLE)

90112-GA6-670

Unavailable

23

BAND, BATTERY

90114-GA6-670

Unavailable

24

WASHER, FR. FENDER SETTING

90556-044-000

$3.65

25

SCREW, PAN (6X12)

93500-06012-0A

$1.49

26

SCREW-WASHER (5X12)

93891-05012-00

$1.49

27

SCREW-WASHER (5X16)

93892-05016-00

$1.49

28

CLIP, TUBE (B8)

95002-02080

$1.80

29

TUBE, VINYL (5X8X270) (NA USE ALT:95003-10001-10M)

95003-10027-10

Unavailable

30

BULK HOSE, VACUUM (4.5X1000) (4.5X110)

95005-45001-30M

Unavailable

31

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

31

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

32

FUSE A (10A)

98200-11000

$1.80
