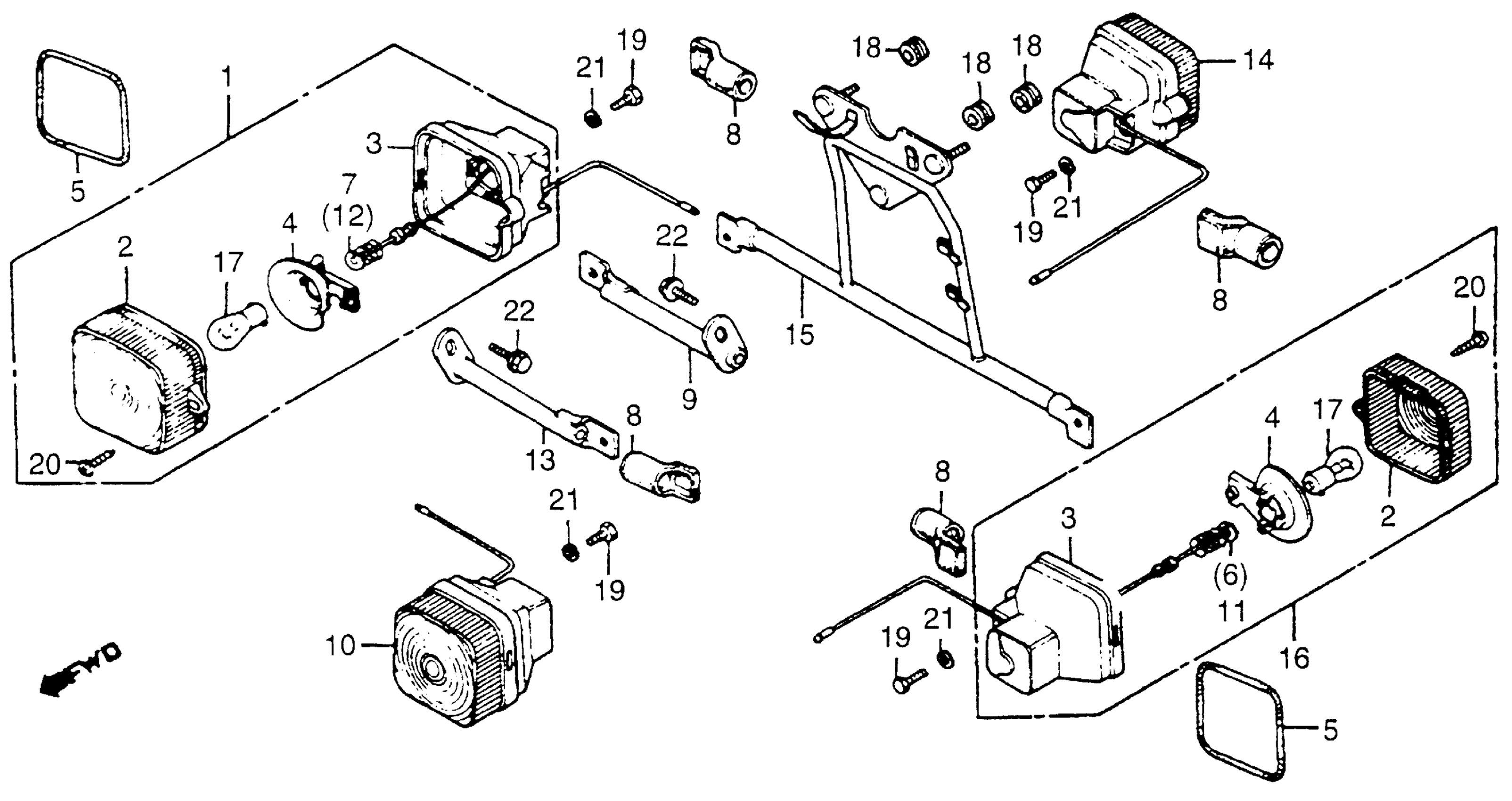

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (STANLEY)

33400-174-406

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-459-771.

33400-174-406

Unavailable

1

TURN SIGNAL ASSY., R. FR. This part replaces 33400-459-772.

33400-174-406

Unavailable

2

LENS, TURN SIGNAL This part replaces 33402-195-013.

33402-195-023

$8.74

2

LENS, TURN SIGNAL

33402-195-023

$8.74

3

BASE, TURN SIGNAL This part replaces 33403-195-003.

33403-195-013

Unavailable

3

BASE, TURN SIGNAL

33403-195-013

Unavailable

4

REFLECTOR, TURN SIGNAL (NOT AVAILABLE)

33404-174-771

Unavailable

5

GASKET, TURN SIGNAL LENS | (Optional).

33407-166-611

$5.78

6

WIRE, R. TURN SIGNAL

33410-KB9-000

Unavailable

6

WIRE, R. TURN SIGNAL This part replaces 33410-167-013.

33410-KB9-000

Unavailable

7

WIRE, R. TURN SIGNAL (NOT AVAILABLE)

33410-459-672

Unavailable

8

COVER, TURN SIGNAL STAY

33425-174-770

$5.23

9

STAY, R. TURN SIGNAL (NOT AVAILABLE)

33441-GA6-670

Unavailable

10

TURN SIGNAL ASSY., L. FR. (STANLEY)

33400-174-406

Unavailable

10

TURN SIGNAL ASSY., R. FR. This part replaces 33450-459-771.

33400-174-406

Unavailable

10

TURN SIGNAL ASSY., R. FR. This part replaces 33450-459-772.

33400-174-406

Unavailable

11

CORD,L.WINKER This part replaces 33460-167-013.

33460-KB9-000

Unavailable

12

WIRE, L. TURN SIGNAL (NOT AVAILABLE)

33460-459-672

Unavailable

13

STAY, L. TURN SIGNAL (NOT AVAILABLE)

33551-GA6-670

Unavailable

14

TURN SIGNAL ASSY., L. RR.

33600-174-405

Unavailable

14

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-771.

33600-174-405

Unavailable

14

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-772.

33600-174-405

Unavailable

14

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-779.

33600-174-405

Unavailable

14

TURN SIGNAL ASSY., L. RR. This part replaces 33650-174-771.

33600-174-405

Unavailable

15

STAY, RR. TURN SIGNAL *NH105* (MAT BLACK) (NOT AVAILABLE)

33601-GA6-670ZA

Unavailable

16

TURN SIGNAL ASSY., L. RR.

33600-174-405

Unavailable

16

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-772.

33600-174-405

Unavailable

16

TURN SIGNAL ASSY., L. RR. This part replaces 33600-174-779.

33600-174-405

Unavailable

16

TURN SIGNAL ASSY., L. RR. This part replaces 33650-174-771.

33600-174-405

Unavailable

17

BULB, TURN SIGNAL (6V17W) (STANLEY)

34905-358-003

$5.42

18

RUBBER, TURN SIGNAL MOUNTING (NOT AVAILABLE)

84702-GA6-670

Unavailable

19

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

19

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

19

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

20

SCREW, TAPPING (4X16)

93901-14480

Unavailable

21

WASHER, SPRING (5MM)

94111-05000

$1.49

22

BOLT, FLANGE (6X12) This part replaces 95700-06012-07.

95701-06012-07

$1.62

22

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
