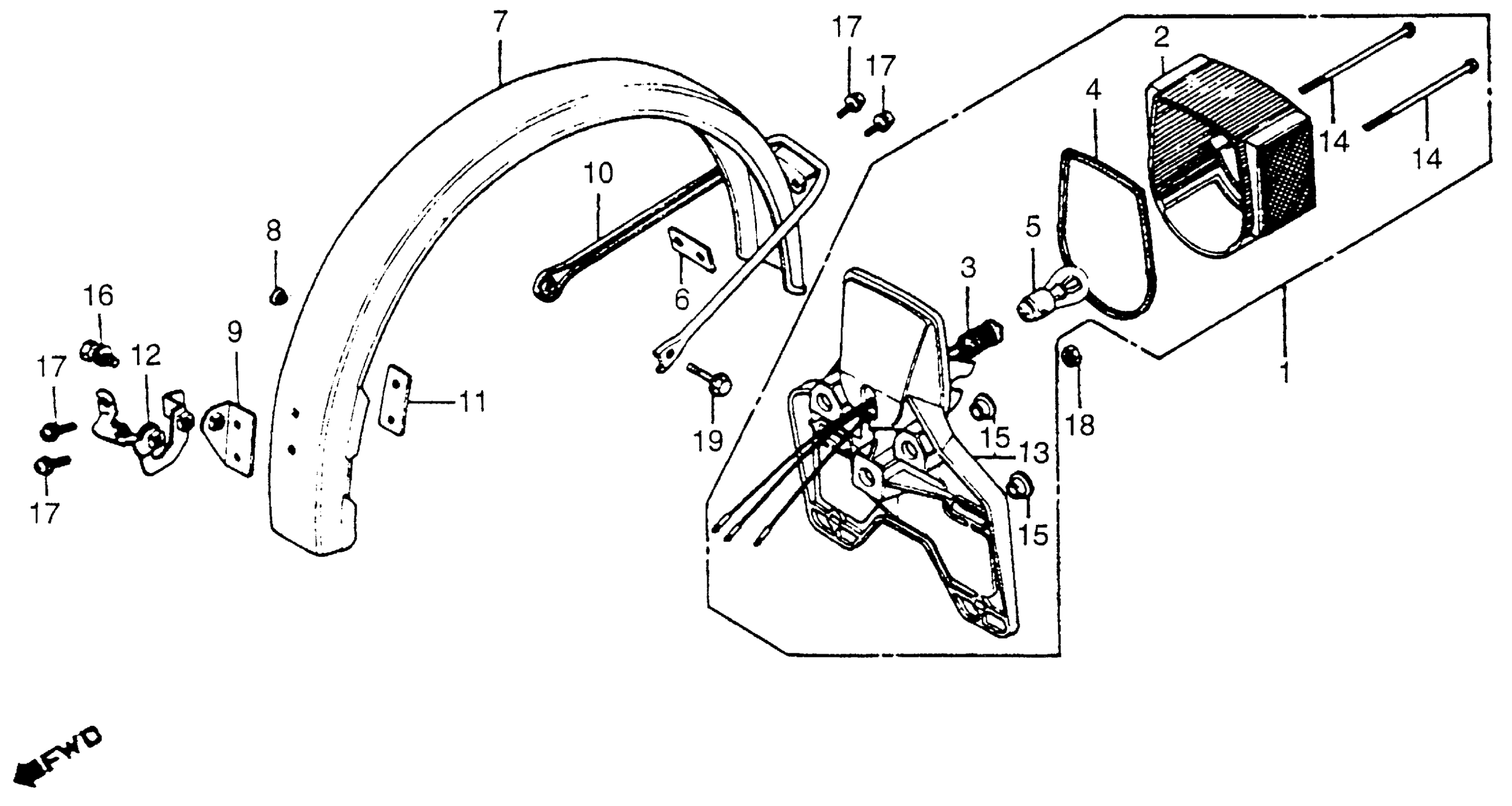

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 TAILLIGHT + REAR FENDER Diagram

TAILLIGHT ASSY. (6V 32/3CP) (STANLEY) (NOT AVAILABLE) This part replaces 33700-190-671.

33700-147-671

Unavailable

LENS, TAILLIGHT (STANLEY)

33702-147-671

Unavailable

WIRE, TAILLIGHT (STANLEY)

33705-147-671

Unavailable

GASKET, TAILLIGHT LENS

33709-074-671

$2.08

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

NUT, FENDER MOUNT (NOT AVAILABLE)

61106-147-670

Unavailable

PANEL, RR. *NH44MS* This part replaces 80101-147-010ZM.

80101-191-830ZA

Unavailable

PANEL, RR. FENDER *NH115MS* (ROCKY GRAY METALLIC SPECIAL) (NOT AVAILABLE)

80101-147-010ZN

Unavailable

PLUG, FENDER (NOT AVAILABLE)

80103-GA6-670

Unavailable

BRACKET, RR. FENDER (NOT AVAILABLE)

80104-GA6-670

Unavailable

STAY, RR. FENDER (NOT AVAILABLE)

80106-192-600

Unavailable

NUT, RR. FENDER PLATE (NOT AVAILABLE)

80107-147-000

Unavailable

STAY, RR. FENDER (NOT AVAILABLE)

80108-GA6-670

Unavailable

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-190-671.

84701-147-671

Unavailable

SCREW, TAPPING (4X60)

90147-147-671

$2.70

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

BOLT-WASHER (6X14) (NOT AVAILABLE)

90111-GC1-000

Unavailable

BOLT-WASHER (6X14) (NOT AVAILABLE) This part replaces 93481-06014-00.

90111-GC1-000

Unavailable

SCREW-WASHER (5X10)

93892-05010-00

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
