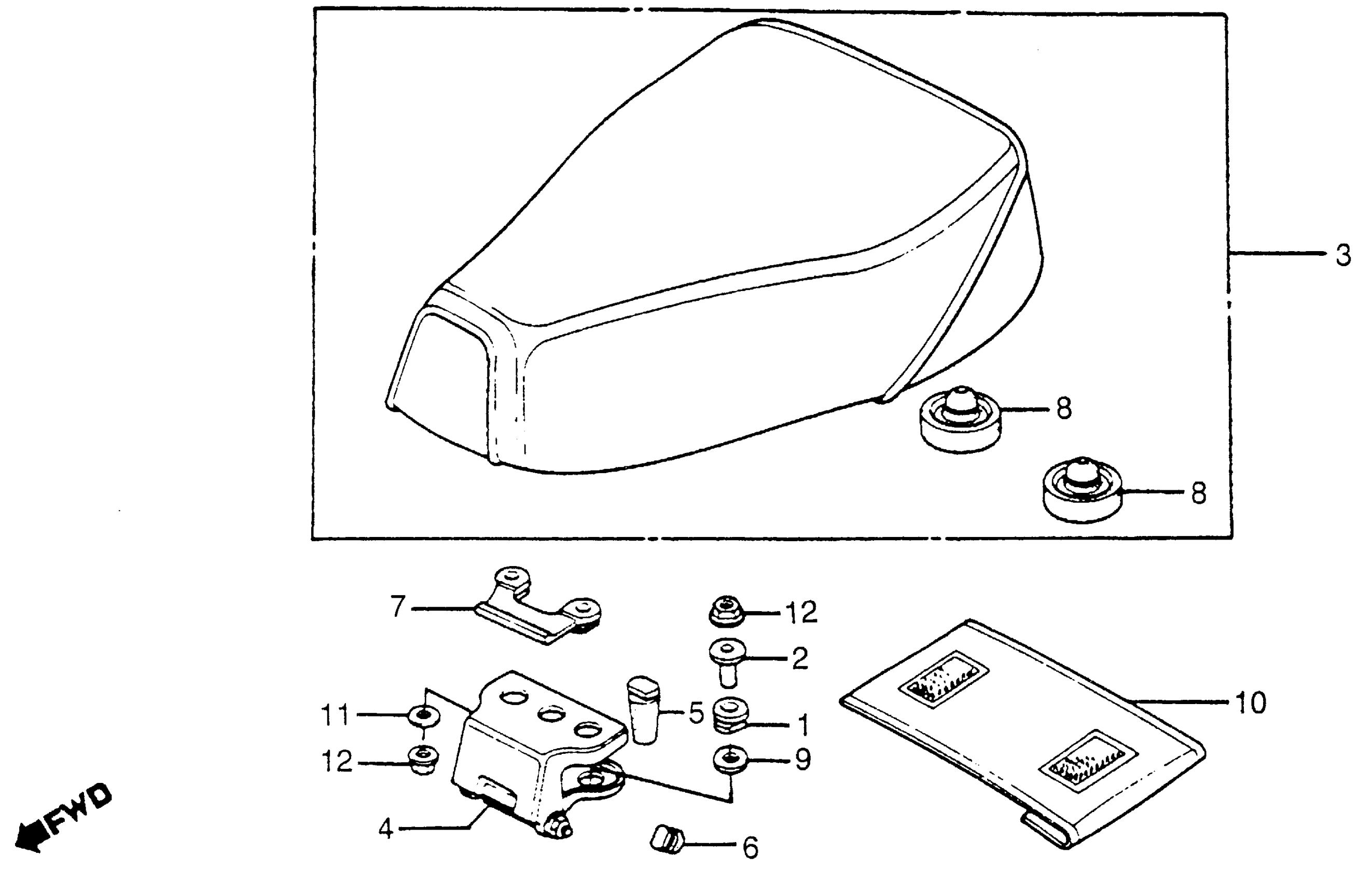

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 SEAT Diagram

#

Description

Price

1

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.80

2

COLLAR, FUEL TANK SETTING

17535-KE7-000

$3.16

2

COLLAR, FUEL TANK SETTING This part replaces 17535-166-000.

17535-KE7-000

$3.16

3

SEAT (NOT AVAILABLE)

77100-GA6-670

Unavailable

4

HINGE, SEAT

77110-GA6-670

Unavailable

5

STOPPER, HINGE (NOT AVAILABLE)

77203-GA6-670

Unavailable

6

RUBBER, HINGE STOPPER (NOT AVAILABLE)

77204-GA6-670

Unavailable

7

RUBBER, HINGE SETTING (NA USE ALT:77206-GF0-000)

77205-GA6-670

Unavailable

8

RUBBER, SEAT STOPPER (NOT AVAILABLE)

77211-187-000

Unavailable

9

WASHER, SEAT SETTING

77302-124-000

$3.08

10

BAG, OWNER'S MANUAL

83642-355-000

$26.34

11

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.69

12

NUT, FLANGE (6MM)

94050-06000

$0.60
