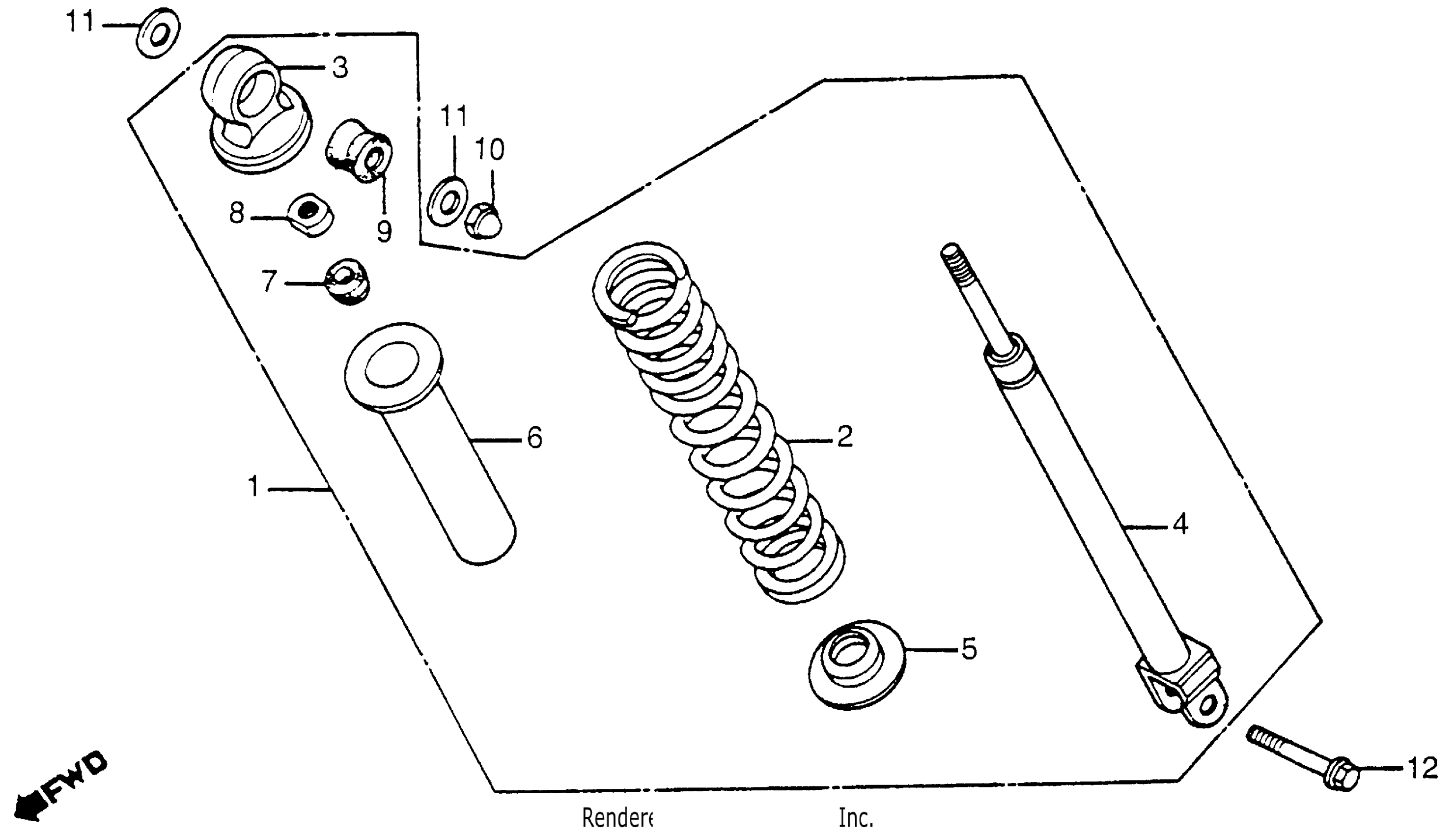

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., RR. (SHOWA) (NOT AVAILABLE)

52400-GA6-670

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-GA6-670

Unavailable

JOINT (UPPER) (SHOWA)

52403-GA6-003

Unavailable

DAMPER, RR. (SHOWA) (NOT AVAILABLE)

52410-GA6-670

Unavailable

SEAT, SPRING (LOWER) (SHOWA) (NOT AVAILABLE)

52458-GA6-003

Unavailable

GUIDE, RR. SHOCK ABSORBER SPRING (LOWER)

52462-GA6-000

Unavailable

RUBBER, RR. SHOCK ABSORBER STOPPER

52475-187-000

Unavailable

NUT, RR. SHOCK ABSORBER LOCK (UPPER) (NOT AVAILABLE)

52481-001-030

Unavailable

BUSH, SHOCK ABSORBER

52489-187-003

Unavailable

NUT, CAP (10MM)

94021-10200-0S

Unavailable

WASHER, PLAIN (10MM)

94101-10000

$1.49

BOLT, FLANGE (8X28) This part replaces 95700-08028-00.

95701-08028-00

$1.49

BOLT, FLANGE (8X28)

95701-08028-00

$1.49
