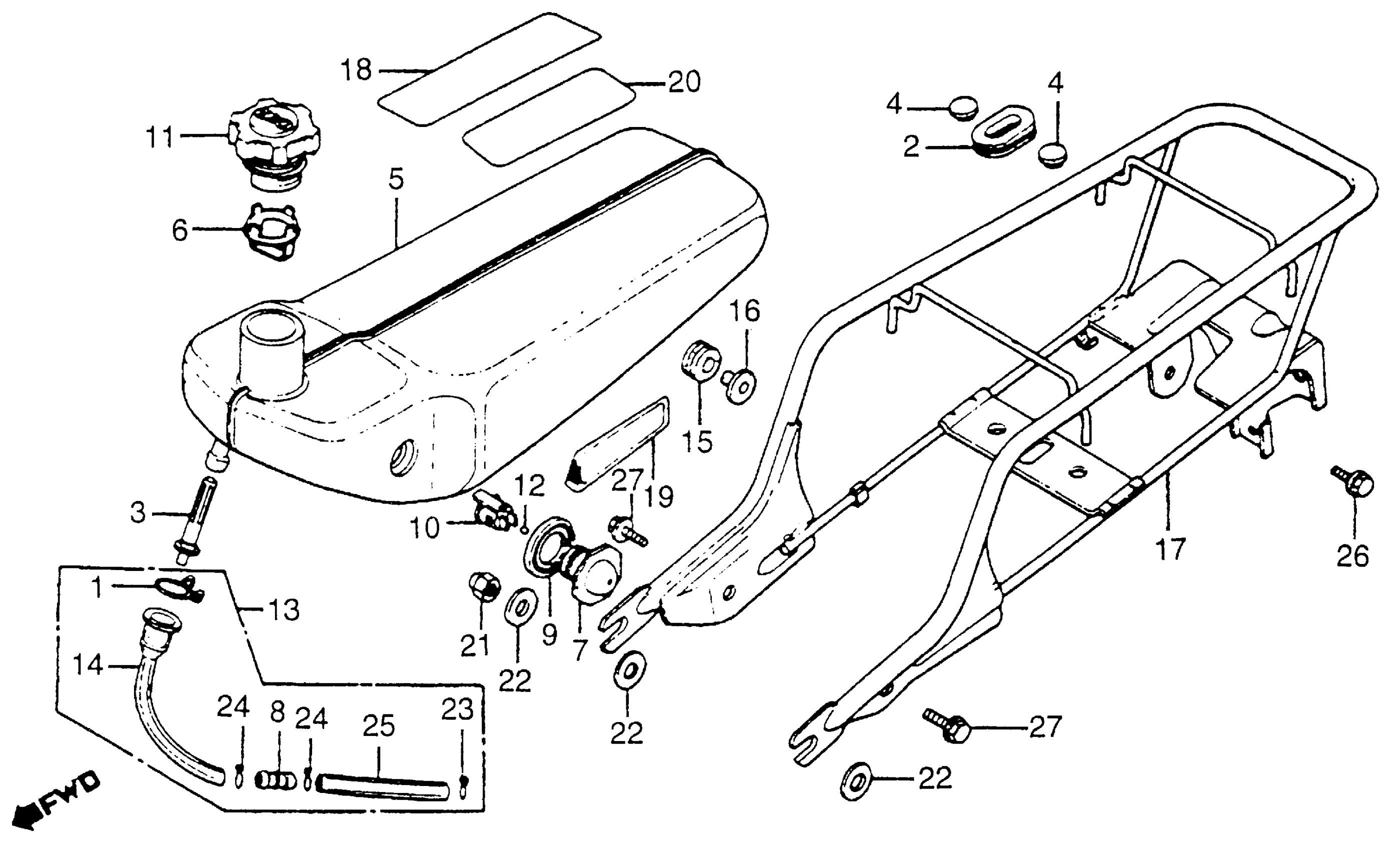

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 OIL TANK + REAR CARRIER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-551-000

$2.05

1

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-551-680

$6.39

2

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

3

STRAINER, OIL

17502-187-000

$5.37

4

PLUG

50318-041-600

$2.11

5

TANK, OIL

55100-GA6-670

Unavailable

6

PLATE, LEVEL (UPPER)

55101-GA7-000

Unavailable

7

LEVEL, OIL TANK (NOT AVAILABLE)

55101-187-000

Unavailable

8

JOINT, OIL TUBE

55102-166-000

$4.08

9

GASKET, LEVEL (NOT AVAILABLE)

55102-187-000

Unavailable

10

GUIDE, LEVEL

55104-187-000

Unavailable

11

CAP, OIL

55105-147-000

Unavailable

12

FLOAT, OIL (NOT AVAILABLE)

55105-187-000

Unavailable

13

TUBE ASSY., OIL (NOT AVAILABLE)

55200-GA6-670

Unavailable

14

JOINT, OIL TUBE (NOT AVAILABLE)

55201-GA6-670

Unavailable

15

RUBBER, FR. FENDER SETTING

61103-357-000

$3.37

16

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

16

COLLAR, RR. FENDER

61105-428-000

Unavailable

17

CARRIER, LUGGAGE (NOT AVAILABLE)

81200-GA6-670

Unavailable

18

LABEL, CAUTION (NOT AVAILABLE)

87505-GA6-670

Unavailable

19

LABEL, OIL CAUTION (NOT AVAILABLE)

87507-192-600

Unavailable

20

LABEL B, CAUTION (NOT AVAILABLE)

87509-GA6-670

Unavailable

21

NUT, CAP (10MM)

94021-10200-0S

Unavailable

22

WASHER, PLAIN (10MM)

94101-10000

$1.49

23

CLIP, TUBE (B8)

95002-02080

$1.80

24

CLIP, TUBE (C9)

95002-50000

$1.49

25

BULK HOSE, VINYL (5X9X1000) (5X9X180)

95003-11001-60M

$4.77

26

BOLT, FLANGE (6X22) This part replaces 95700-06022-00.

95701-06022-00

$1.80

26

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

27

BOLT, FLANGE (8X14) This part replaces 95700-08014-00.

95701-08014-00

$1.49

27

BOLT, FLANGE (8X14)

95701-08014-00

$1.49
