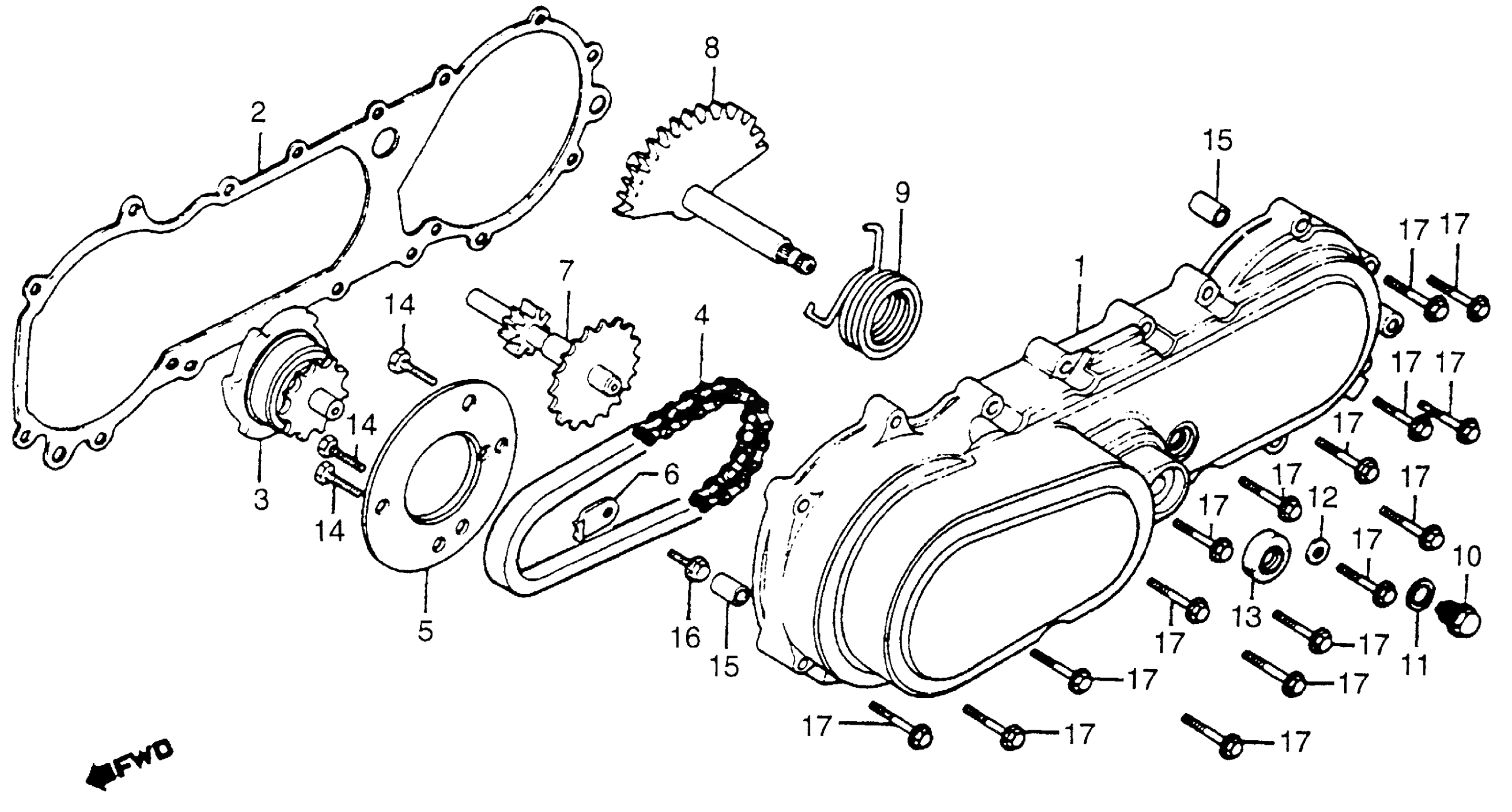

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE *NH115MS* (ROCKY GRAY METALLIC SPECIAL)

11341-GA6-670ZA

Unavailable

1

COVER, L. CRANKCASE *NH44MS* (SPECIAL SILVER METALLIC)

11341-GA6-670ZB

Unavailable

2

GASKET, L. CRANKCASE COVER This part replaces 11395-GA6-670.

11395-GF8-003

Unavailable

2

GASKET, L. CRANKCASE COVER

11395-GF8-003

Unavailable

3

SPROCKET, STARTER DRIVEN (NOT AVAILABLE)

28230-191-010

Unavailable

4

CHAIN, STARTER DRIVE (DID219H-42LE) (NOT AVAILABLE)

28230-192-003

Unavailable

5

HOLDER, STARTER SPROCKET

28240-192-020

Unavailable

6

PLATE, STARTER SPROCKET (NOT AVAILABLE)

28242-192-000

Unavailable

7

SHAFT, KICK IDLE (NOT AVAILABLE)

28250-192-010

Unavailable

8

SPINDLE, KICK STARTER (NOT AVAILABLE)

28270-192-000

Unavailable

9

SPRING, KICK STARTER (NOT AVAILABLE)

28281-192-000

Unavailable

10

BOLT, SEALING (14MM)

90081-035-000

$4.24

11

WASHER, SEALING (14MM)

90441-035-000

$2.39

12

WASHER A (6.5MM)

90481-250-000

$1.93

13

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

13

OIL SEAL (16X28X7)

91204-259-003

$5.60

13

OIL SEAL (16X28X7) This part replaces 91204-259-005.

91204-259-003

$5.60

13

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

14

BOLT, HEX. (6X18) This part replaces 92000-06018.

92101-06018-0A

$1.49

14

BOLT, HEX. (6X18) This part replaces 92000-06018-0A.

92101-06018-0A

$1.49

14

BOLT, HEX. (6X18)

92101-06018-0A

$1.49

14

BOLT, HEX. (6X18) This part replaces 92200-06018.

92101-06018-0A

$1.49

15

PIN A, DOWEL (10X14)

94301-10140

$2.28

16

BOLT, FLANGE (6X12) This part replaces 95700-06012.

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12) This part replaces 95700-06012-10.

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12) This part replaces 95800-06012.

95701-06012-00

$1.62

16

BOLT, FLANGE (6X12) This part replaces 95900-06012-02.

95701-06012-00

$1.62

17

BOLT, FLANGE (6X28)

96001-06028-00

$2.06

17

BOLT, FLANGE (6X28) This part replaces 96018-06028-00.

96001-06028-00

$2.06
