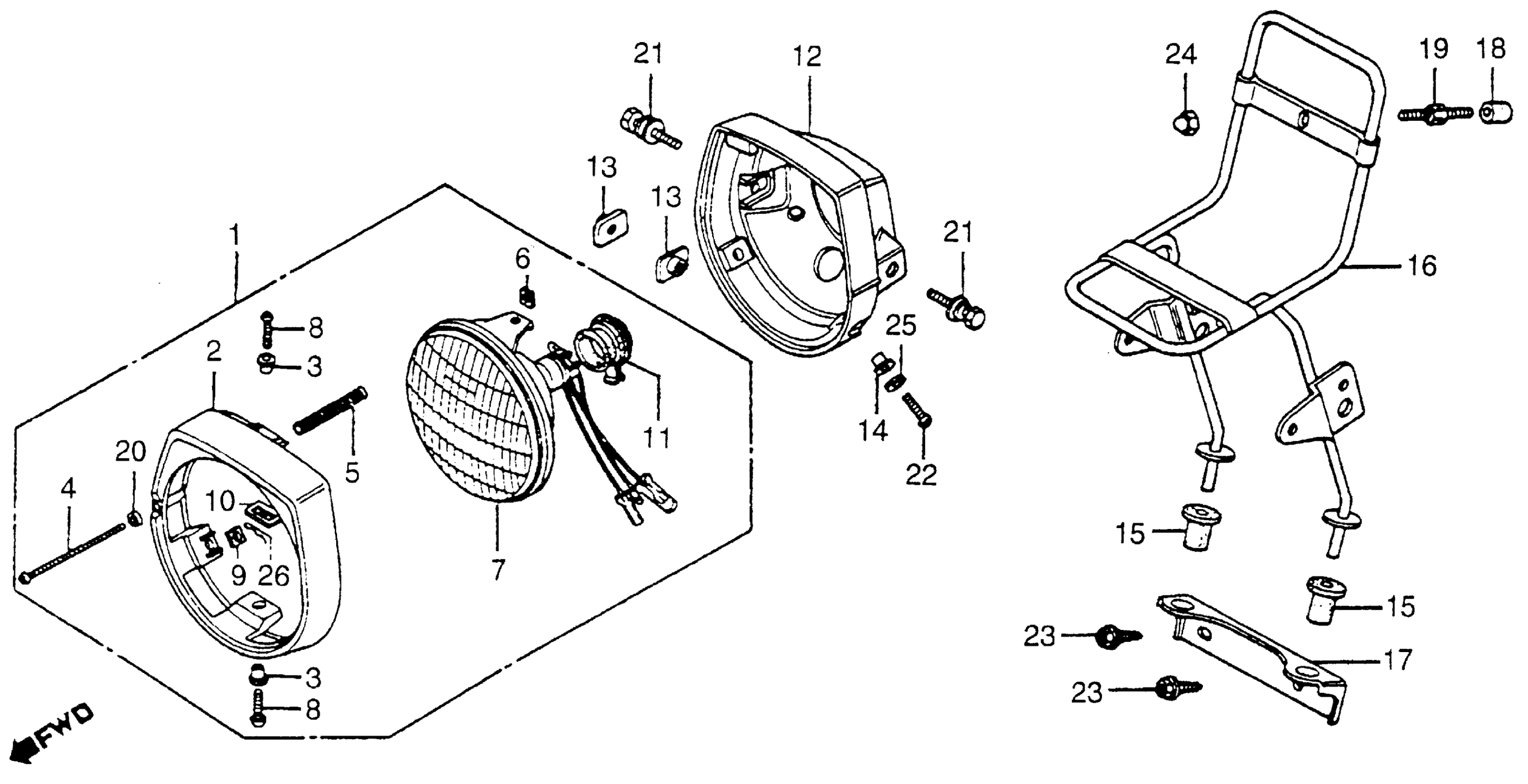

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 HEADLIGHT FRONT CARRIER Diagram

HEADLIGHT ASSY. *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

33100-147-672ZN

Unavailable

HEADLIGHT ASSY. *B103MS* (INDIGO BLUE METALLIC) (NOT AVAILABLE)

33100-147-672ZQ

Unavailable

RIM, HEADLIGHT *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

33101-147-671ZU

Unavailable

RIM, HEADLIGHT *B103MS* (INDIGO BLUE METALLIC) (NOT AVAILABLE)

33101-147-671ZV

Unavailable

WASHER, UNIT HOLDER (NOT AVAILABLE)

33102-147-670

Unavailable

SCREW, BEAM ADJ.

33103-147-671

Unavailable

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE)

33107-147-671

Unavailable

NUT, BEAM ADJ.

33117-041-003

$1.95

HEADLIGHT UNIT (6V 15/15W) (STANLEY)

33120-147-671

Unavailable

SCREW, UNIT HOLDER (NOT AVAILABLE)

33125-147-670

Unavailable

COLLAR (NOT AVAILABLE)

33127-147-670

Unavailable

NUT, UNIT HOLDER

33128-292-670

$2.94

COVER, RUBBER

33130-111-671

Unavailable

CASE, HEADLIGHT *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

61301-GA6-670ZC

Unavailable

CASE, HEADLIGHT *B103MS* (INDIGO BLUE METALLIC) (NOT AVAILABLE)

61301-GA6-670ZF

Unavailable

NUT, HEADLIGHT SETTING

61304-162-013

$3.47

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.47

GROMMET B, HEADLIGHT

61313-422-000

$6.31

CARRIER, FR. (NOT AVAILABLE)

81100-GA6-670

Unavailable

STAY, FR. CARRIER SETTING (NOT AVAILABLE)

81101-GA6-670

Unavailable

COLLAR, FR. CARRIER SETTING

81102-192-600

Unavailable

BOLT, STUD (NOT AVAILABLE)

90112-191-000

Unavailable

WASHER, BEAM ADJ.

90286-147-670

$2.39

BOLT-WASHER (6X20) (NOT AVAILABLE)

93483-06020-00

$1.49

SCREW, PAN (5X16)

93500-05016-0A

$1.49

SCREW, TAPPING (6X10) (NOT AVAILABLE)

93904-26010

Unavailable

NUT, CAP (6MM)

94021-06020

$1.73

WASHER, SPRING (5MM)

94111-05000

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49
