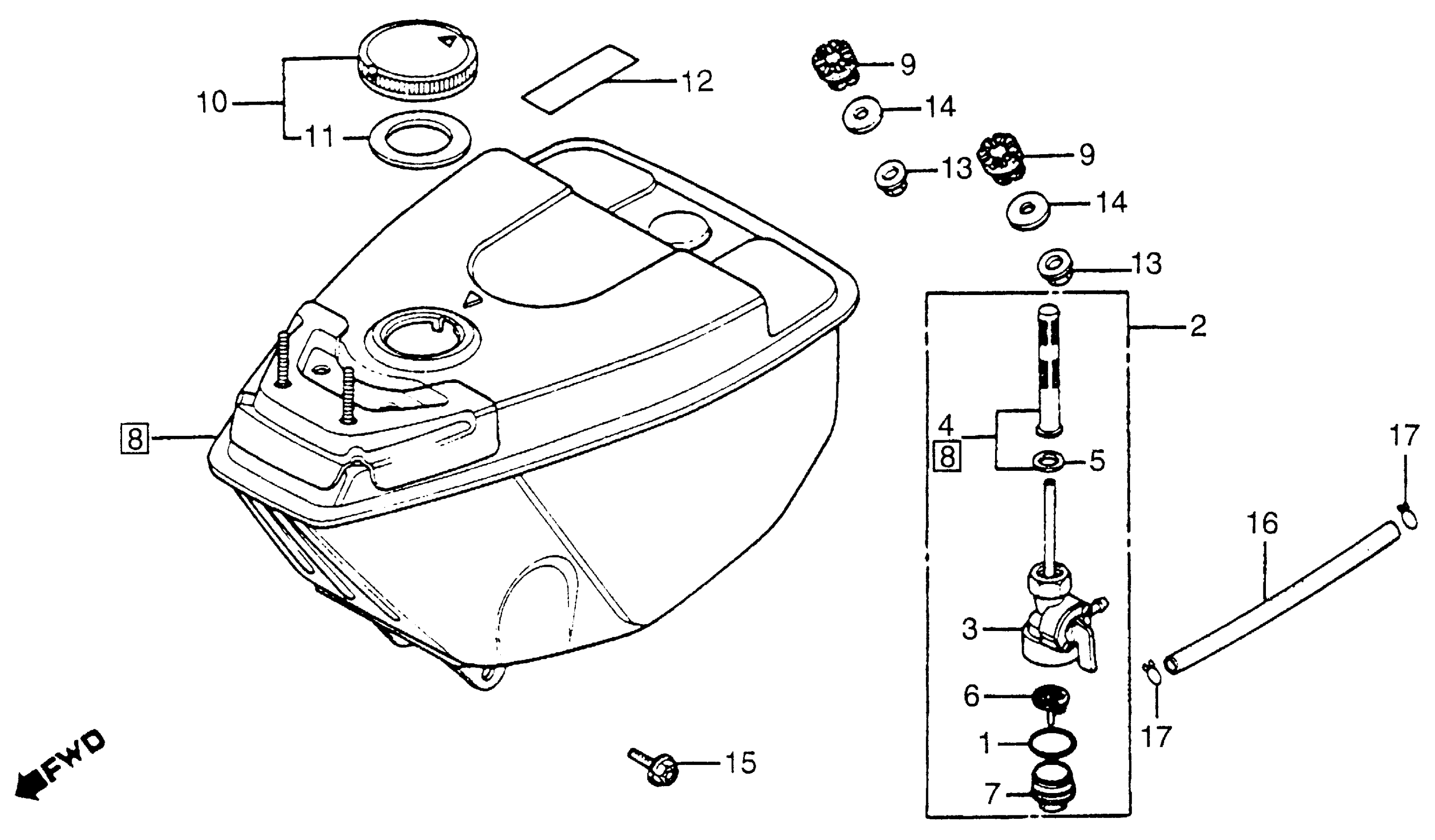

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 FUEL TANK Diagram

#

Description
Price

1

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

1

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

1

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

1

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

2

PETCOCK ASSY. (NOT AVAILABLE)

16950-GA6-671

Unavailable

3

BODY, PETCOCK (NOT AVAILABLE)

16951-GA6-671

Unavailable

4

SCREEN SET, FUEL STRAINER

16952-GA6-671

Unavailable

5

O-RING (9X1.3)

16958-397-771

$5.30

6

FILTER, CUP

16959-471-831

$9.35

7

CUP, FUEL STRAINER

16967-GA6-671

$23.28

8

TANK SE*NH-44M-S* This part replaces 175A1-GA6-670ZC.

175A1-GA6-605ZC

Unavailable

8

TANK, FUEL *B103MS* This part replaces 175A1-GA6-670ZF.

175A1-GA6-605ZF

Unavailable

9

RUBBER, TANK MOUNTING (NOT AVAILABLE)

17523-GA6-670

Unavailable

10

CAP, FUEL FILLER This part replaces 17620-GA7-013.

17620-459-750

Unavailable

10

CAP, FUEL FILLER

17620-459-750

Unavailable

11

GASKET This part replaces 17631-096-700.

17631-096-702

$2.47

11

GASKET This part replaces 17631-096-701.

17631-096-702

$2.47

12

LABEL, FUEL *NH1* (BLACK) (NOT AVAILABLE)

87512-147-670ZA

Unavailable

13

NUT, FLANGE (8MM)

90309-428-731

$3.35

14

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

15

BOLT-WASHER (10X25) (NOT AVAILABLE)

93483-10025-00

Unavailable

16

BULK HOSE, FUEL (4.5X3000) (4.5X190)

95001-45003-60M

$36.67

17

CLIP, TUBE (B8)

95002-02080

$1.80
