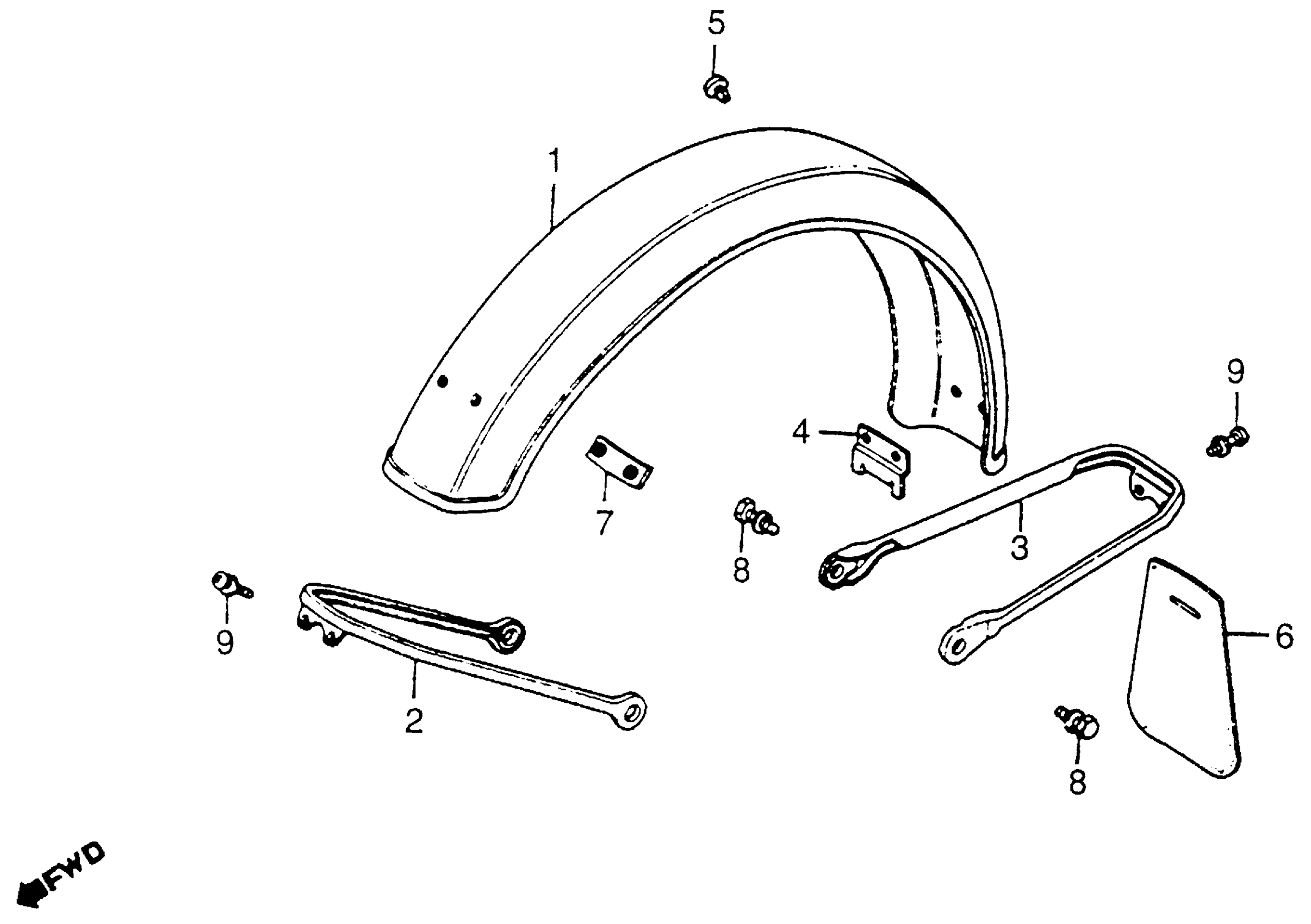

Honda NC50A (83) EXPRESS, JPN, VIN# JH2AB100-DS100001 TO JH2AB100-DS105061 FRONT FENDER Diagram

PANEL, FR. FENDER *NH115MS* (ROCKY GRAY METALLIC SPECIAL) (NOT AVAILABLE)

61101-147-000ZR

Unavailable

PANEL, FR. FENDER *NH44MS* (SPECIAL SILVER METALLIC) (NOT AVAILABLE)

61101-147-000ZS

Unavailable

STAY A, FR. FENDER (NOT AVAILABLE)

61102-147-671

Unavailable

STAY B, FR. FENDER

61103-147-671

Unavailable

STAY, SPLASH GUARD (NOT AVAILABLE)

61104-162-000

Unavailable

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

COLLAR, RR. FENDER

61105-428-000

Unavailable

SPLASH GUARD, FR. (NOT AVAILABLE)

61105-147-010

Unavailable

NUT, FENDER MOUNT (NOT AVAILABLE)

61106-147-670

Unavailable

BOLT-WASHER (6X12)

93401-06012-00

$1.55

BOLT-WASHER (6X12) This part replaces 93411-06012-00.

93401-06012-00

$1.55

BOLT-WASHER (6X12) This part replaces 93481-06012.

93401-06012-00

$1.55

BOLT-WASHER (6X12) This part replaces 93481-06012-00.

93401-06012-00

$1.55

SCREW-WASHER (5X10)

93892-05010-00

$1.49
